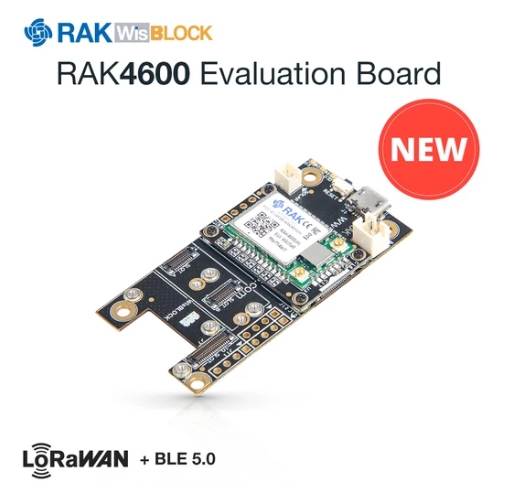

RAK4600 Evaluation Board

  • Frequency band

SG$ 47.32 SG$ 47.32 47.32 SGD

US$ 35.00

This combination does not exist.

Add to Cart

5.5V module Radial lead plastic case 2.5F


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


FIND OUT MORE

Overview

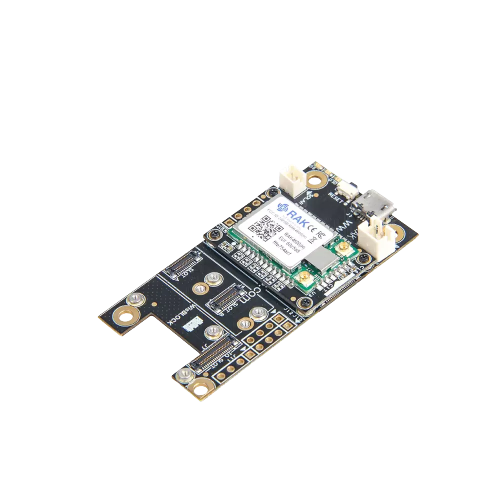

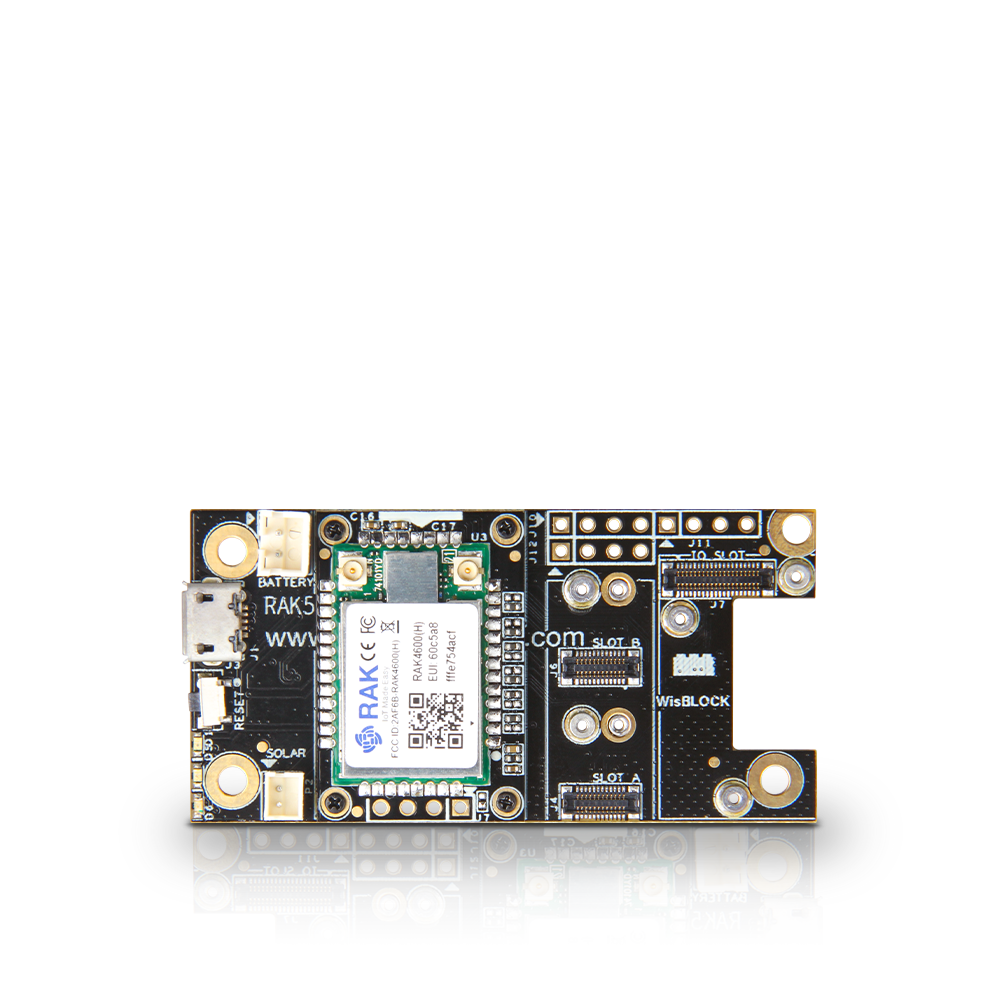

RAK4600 Evaluation Board is designed to give you a quick start to explore the LoRa/LPWAN world. The board measures 30 x 60 mm and supports USB power supply, 3.7 V LiPo battery, and 5 V solar charging.

The board itself has the RAK4600 as its core, which is a module that utilizes Nordic nRF52832 MCU and an SX1276 LoRa chip. The high level of integration allows for outstanding performance: Lora TX Power of up to 20 dBm.

The board complies with LoRaWAN 1.0.2 specification, and it also supports LoRa P2P Point to Point communication. The low power, long-range LoRa communication capabilities of the board make it suitable for a variety of applications in the IoT field such as home automation, sensor networks, building automation, and personal area networks applications such as health/fitness sensors and monitors

Features

  • LoRa module for Smart City, Smart Agriculture, Smart Industry
  • Frequency range: 863–870 MHz (EU) / 902–928 MHz (US), ISM and SRD systems
  • I/O ports: UART/I2C/GPIO (optional NFC interface)
  • Based on the RAK4600 module with a sleep current consumption of 13.3 μA (down to 11.2 μA @ 2.0 V)
  • LoRa Boost mode with 20 dBm output power
  • BLE 5.0 (Tx power -20 to +4 dBm in 4 dB steps)

Specifications for RAK4600 Evaluation Board

Frequency band AS923 or EU868 or IN865 or KR920 or US915
