RAK4200 Evaluation Board

  • Frequency band

SG$ 35.53 SG$ 35.53 35.53 SGD

US$ 27.00

This combination does not exist.

Add to Cart

5.5V module Radial lead plastic case 1.5F


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

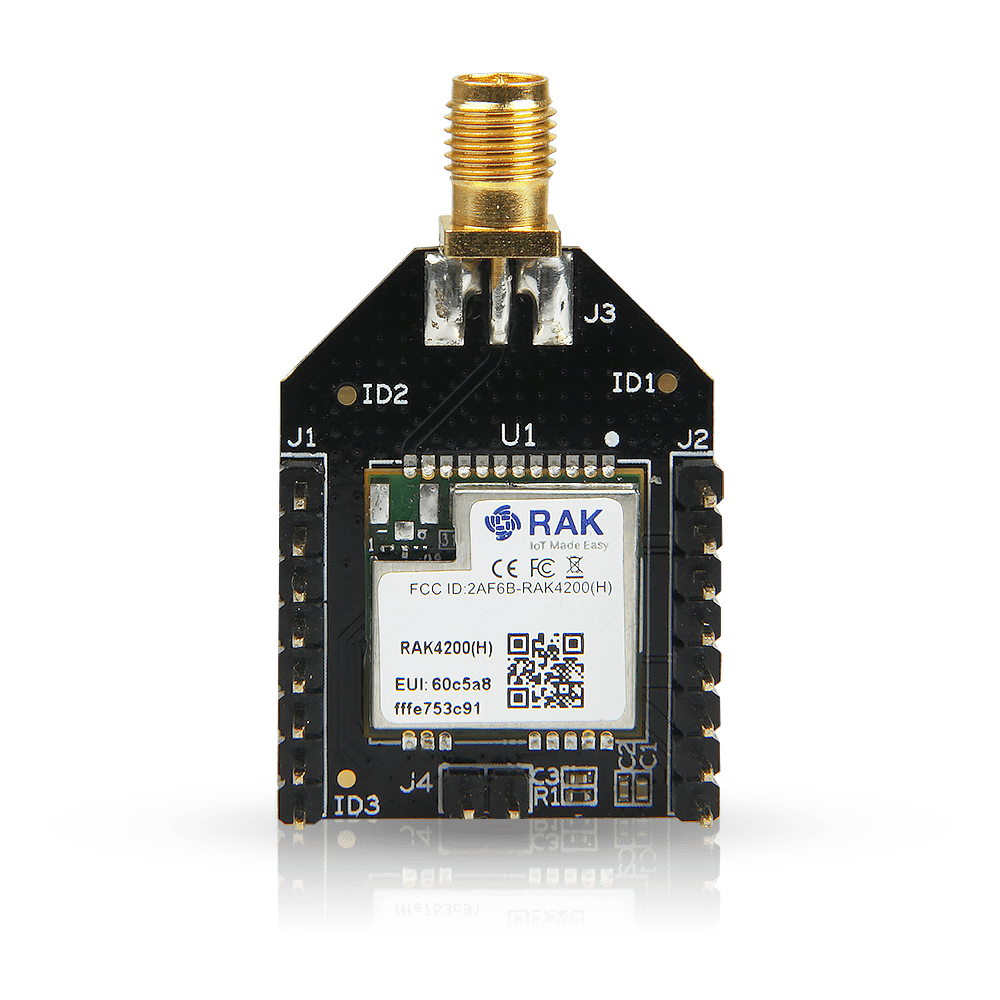

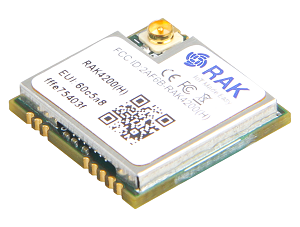

RAK4200 LPWAN Evaluation Board is a WisDuo product consisting of RAK4200 LPWAN Module and RAK5005 WisBlock Base. You can use this development board to access all serial and GPIO ports for easy configuration. The core module RAK4200 includes an STM32L071 MCU and SX1276 LoRa® chip that complies with the LoRaWAN® 1.0.2 protocols.


Features


  • LoRa® module for Smart City, Smart Agriculture, Smart Industry

  • I/O ports: UART/I2C/GPIO

  • Temperature range: -40°C to +85°C

  • Frequency range: 433 to 470 MHz; 863 to 923 MHz (entire LoRa® spectrum)

  • Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth

  • Ultra-Low Power Consumption 1.5uA in sleep mode

  • Core: ARM 32-bit Cortex M0+ with MPU

  • Up to 128KB flash memory with ECC

  • 20KB RAM

Specifications for RAK4200 Evaluation Board

Frequency band AS923 or CN470 or EU433 or EU868 or IN865 or KR920 or US915
