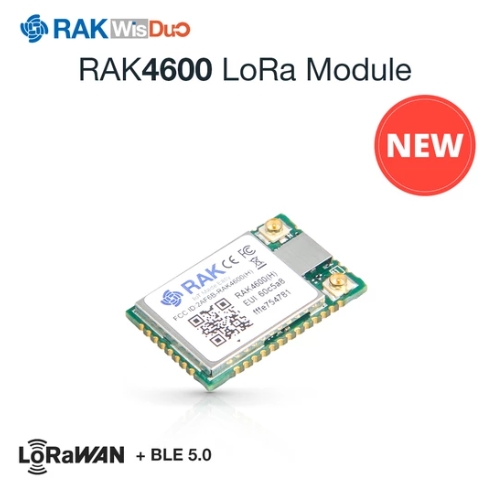

RAK4600 WisDuo LPWAN Module

  • Configuration Interface
  • Class
  • Frequency band
  • RF connector
  • LoRaWAN version
  • Sleep Power consumption
  • Chipset
  • P2P support
  • Max Transmit power
  • Spread Factor

SG$ 11.58 SG$ 11.58 11.58 SGD

US$ 8.80

This combination does not exist.

Add to Cart

LoRaWAN BLE5.0 LPWAN Module


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

TRAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.



Do something

Overview

RAK4600 WisDuo LPWAN Module includes an nRF52832 MCU and an SX1276 LoRa chip. It has Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0V) in sleep mode, high LoRa output power up to 20dB max in work mode, and BLE output power up to 4dBm.

The module complies with LoRaWAN 1.0.2 specification. It also supports LoRa Point to Point (P2P) communications. The Module supports BLE 5.0 in addition to LoRa. Its RF communication capabilities (LoRa+BLE) make it suitable for a variety of applications in the IoT field

Features

  • LoRa module for Smart City, Smart Agriculture, Smart Industry
  • Compact Form Factor: 15 x 23 x 2.5 mm
  • 42 Pin Stamp Pad for PCB SMT mounting
  • I/O ports: UART/I2C/GPIO (optional NFC interface)
  • Temperature range: -40°C to +85°C
  • Supply voltage: 2.0 ~ 3.6V
  • Frequency range: 863–870MHz (EU) / 902–928MHz (US), ISM and SRD systems
  • Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
  • It has Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0V) in sleep mode
  • LoRa Boost mode with 20dBm output power
  • BLE 5.0 (Tx power -20 to +4 dBm in 4dB steps)

Specifications for RAK4600 WisDuo LPWAN Module

LoRaWAN
Configuration Interface Bluetooth
Uncategorized
Frequency band High frequency or Low frequency
RF connector iPEX or Pad
Class Class A, B, C
LoRaWAN version 1.0.2
Sleep Power consumption 12.5uA
Chipset nRF52832
P2P support Yes
Max Transmit power 20dBm
Spread Factor SF7~SF12
