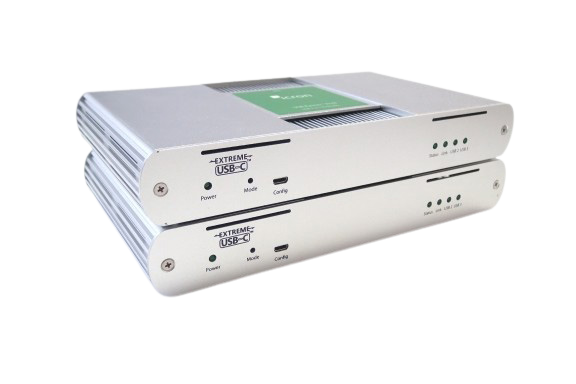

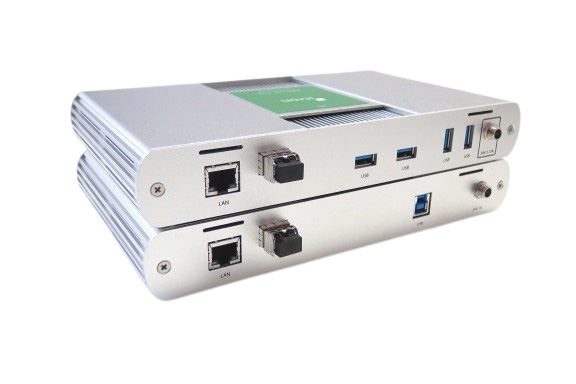

Raven 3124 4-port USB 3.1, 200m Multimode Fiber Extender System

  • USB standard
  • Distance
  • Power Adapter
  • USB ports
  • Transmission Media
  • Power Adapter Location

SG$ 1,735.53 SG$ 1,735.53 1735.53 SGD

US$ 1,319.00

This combination does not exist.

Add to Cart

The Raven 3124 extender system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 3.1 Gen 1 Cable
LEX 24V DC 1A International Power Adapter
REX 24V DC 2.71A International Power Adapter
2 x Country Specific Power Cords
Quick Start Guide
Two year warranty


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.



Do something

Overview

The Icron USB  3-2-1 Raven™ 3124 allows users to extend all USB 3.1 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection up to 200m over a single duplex Multimode Fiber cable.


This 4-port USB 3.1 extender supports data rates at up to 5 Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.


Additionally, this ExtremeUSB-C™ based Multimode Fiber USB 3.1 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.

Features

  • USB 3.1 Gen 1 data rate up to 5 Gbps

  • Integrated four port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth

  • Up to 1.2A (6W) per USB port

  • 100 Mbps Ethernet channel; LAN pass-through

  • Single cable, OM3 Multimode Fiber up to 200m

  • Point-to-point connection

  • FCC and CE (Class B) compliance

  • Electrical isolation

  • Two year warranty

  • ExtremeUSB-C™ suite of features:

  • Transparent USB extension supporting USB 3, 2 and 1

  • True plug and play; no software drivers required

  • Works with all major operating systems:  Windows®, macOS™, Linux® and Chrome OS™

Specifications for Raven 3124 4-port USB 3.1, 200m Multimode Fiber Extender System

USB Extender
USB standard USB 3.1
Distance 200m
Uncategorized
Power Adapter Europe or Australia or Japan or North America or Unit Kingdom
USB ports 4 USB ports
Transmission Media Multimode Fiber
Power Adapter Location LEX and REX
