Raven 3104 4-port USB 3.1, 200m Multimode Fiber Extender System
The Raven 3104 extender system includes:
Local Extender (LEX)
Remote Extender (REX)
USB 3.1 Gen 1 Cable
LEX 24V DC 1A International Power Adapter
REX 24V DC 2.71A International Power Adapter
2 x Country Specific Power Cords
Quick Start Guide
Two year warranty
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

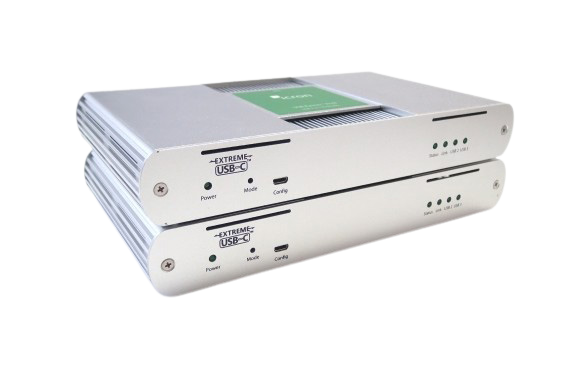

The Icron USB 3-2-1 Raven™ 3124 allows users to extend all USB 3.1 Gen 1 (5 Gbps) device types and is backward compatible to USB 2.0 and 1.1 across a point-to-point connection up to 200m over a single duplex Multimode Fiber cable.
This 4-port USB 3.1 extender supports data rates at up to 5 Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.
Additionally, this ExtremeUSB-C™ based Multimode Fiber USB 3.1 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.
USB 3.1 Gen 1 data rate up to 5 Gbps
Integrated four-port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
Up to 1.2A (6W) per USB port
100 Mbps Ethernet channel; LAN pass-through
Single cable, OM3 Multimode Fiber up to 200m
FCC and CE (Class B) compliance
ExtremeUSB-C™ suite of features:
Transparent USB extension supporting USB 3, 2 and 1
True plug and play; no software drivers required
Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
Specifications for Raven 3104 4-port USB 3.1, 200m Multimode Fiber Extender System
|USB standard||USB 3.1|
|Power Adapter||Europe or Australia or Japan or North America or Unit Kingdom|
|USB ports||4 USB ports|
|Transmission Media||Multimode Fiber|
|Power Adapter Location||LEX and REX|
