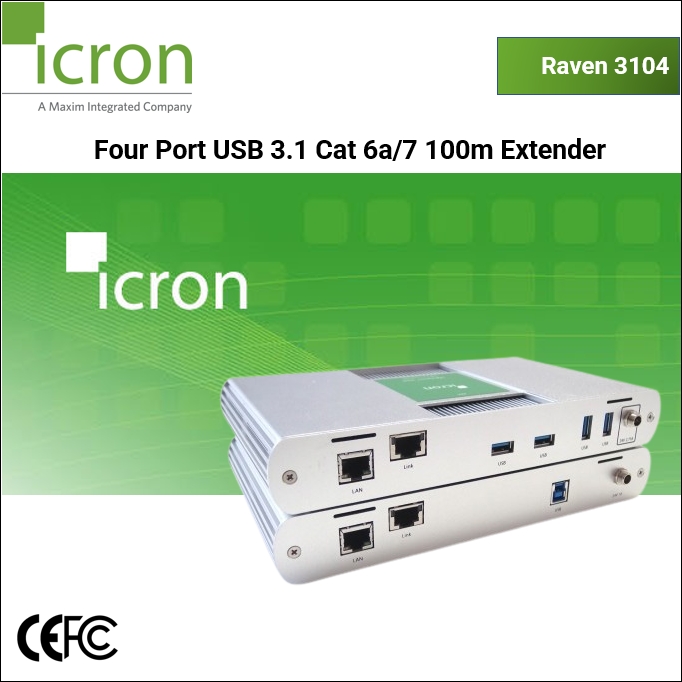

4-port USB 3.1, 100m CAT 6a/7 Extender System
The USB 3-2-1 extender offers you a 4-port USB 3.1 over CAT6a solution that can extend USB up to 100m. As an industry first, this extender is backward compatible with USB 2.0 and 1.1 devices for simultaneous use at full 5Gbps bandwidth.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

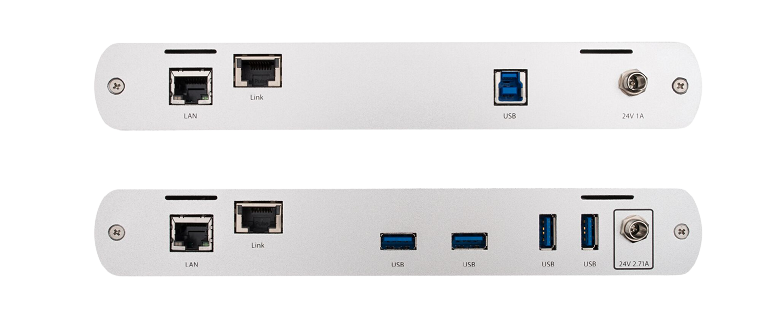

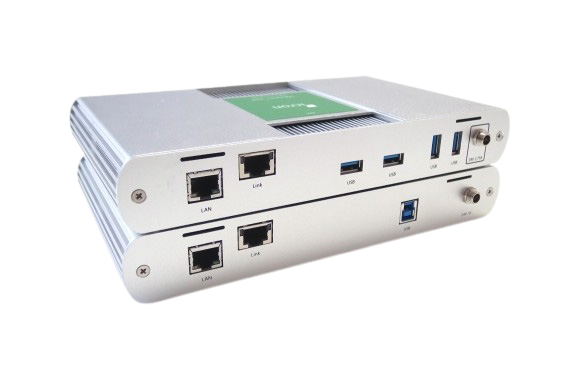

The Icron USB 3-2-1 Raven™ 3104 is the world’s first USB 3.1 extender allowing users to extend USB 3.1 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conferencing cameras and audio devices for boardrooms and conference rooms. The Raven extension series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Skype).
This 4-port USB 3.1 extender supports data rates at up to 5Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.
Additionally, this ExtremeUSB-C™ based USB 3.1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras including flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, audio devices, and other USB 3, 2 and 1 devices.
USB 3.1 Gen 1 data rate up to 5Gbps
Integrated 4-port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth; although if Isochronous support is required, use Raven 3104 Pro
Up to 1.2A (6W) per USB port
100/1000Mbps Ethernet channel; LAN pass-through
Single cable, CAT 6a/7 up to 100m
FCC and CE (Class B) compliance
ExtremeUSB-C™ suite of features:
Transparent USB extension supporting USB 3, 2 and 1
True plug and play; no software drivers required
Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
Specifications for 4-port USB 3.1, 100m CAT 6a/7 Extender System
|USB standard||USB 3.1|
|Power Adapter||Europe or Australia or Japan or North America or Unit Kingdom|
|USB ports||4 USB ports|
|Transmission Media||CAT 6a/7|
|Power Adapter Location||LEX and REX|
