UG65 Indoor LoRaWAN gateway

  • Extra Antenna
  • PoE
  • Channels
  • LNS build in
  • WAN Port
  • Remote Configure
  • Chipset
  • Frequency band
  • Waterproof
  • 4G LTE

SG$ 621.89 SG$ 621.89 621.89 SGD

US$ 460.00

This combination does not exist.

Add to Cart

The Next Generation of Semi-Industrial LoRaWAN Gateway


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.



Do something

Overview

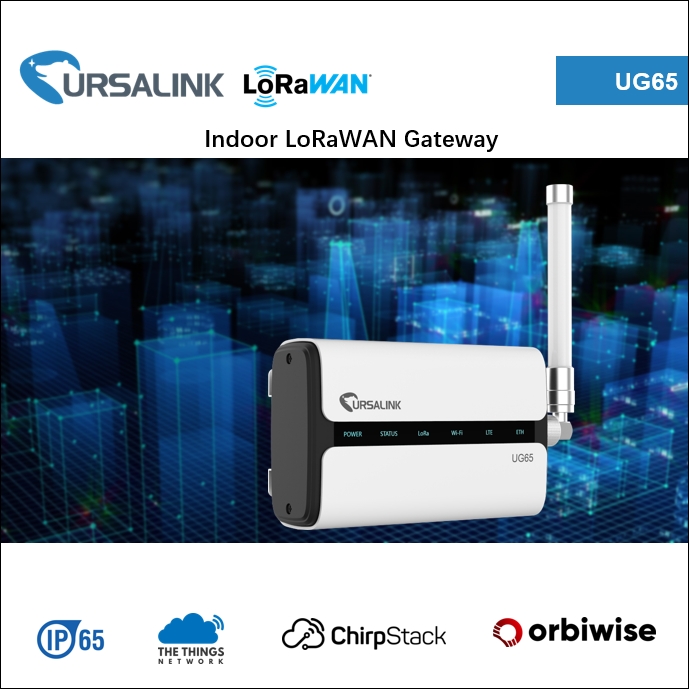

UG65 is a robust 8-channel indoor LoRaWAN® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has a line of sight up to 15km and can cover about 2km in an urbanized environment, which is ideally suited to smart offices, smart buildings, and many other indoor applications. UG65 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular but also has integrated mainstream

network servers (such as TTN, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.

Feature

  • IP65 rating – dustproof and waterproof

  • NXP 64-bit Quad-Core processor

  • Handles a higher amount of traffic with lower consumption

  • Semtech SX1302 LoRa chip – supports SF5 & SF6

  • Deep penetration – covering 10,000 to 15,000ft² in city applications

  • Supports up to 2000 end-devices

  • Multiple backhaul connectivities. Stay connected via Ethernet, cellular and Wi-Fi.

  • High compatibility – embedded network server and compatible with network servers

  • Supported by Milesight IoT Cloud (Android & iOS)

  • Flexible installation – Wall/ Desktop/ Pole

Specifications for UG65 Indoor LoRaWAN gateway

LoRaWAN
Extra Antenna No or 2dBi Antenna
PoE Yes
Channels 8 channels
LNS build in Yes
WAN Port 1Gbps
Remote Configure DeviceHub
Uncategorized
Frequency band AS923 or AU915 or EU868 or IN865 or US915
4G LTE without 4G LTE or with 4G LTE
Chipset SX1302
Waterproof IP65
