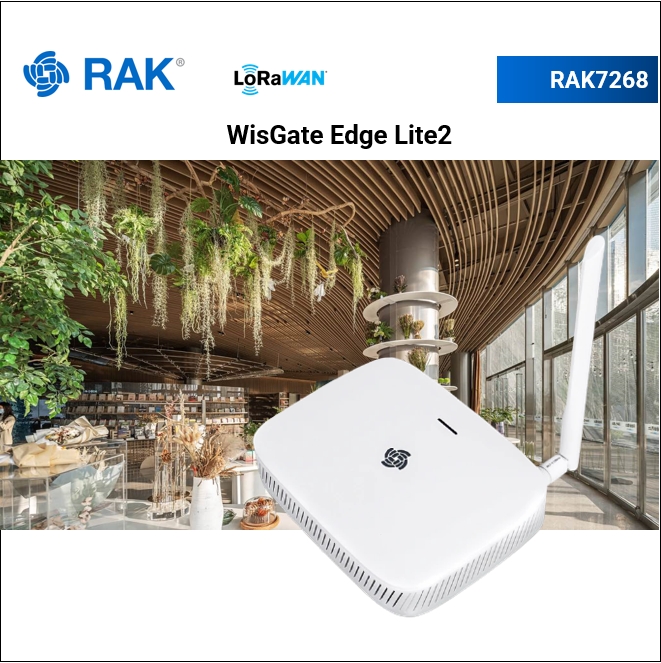

RAK7268 WisGate Edge Lite 2

  • Chipset
  • Frequency band
  • Waterproof
  • 4G LTE

SG$ 182.89 SG$ 182.89 182.89000000000001 SGD

US$ 139.00

This combination does not exist.

Add to Cart

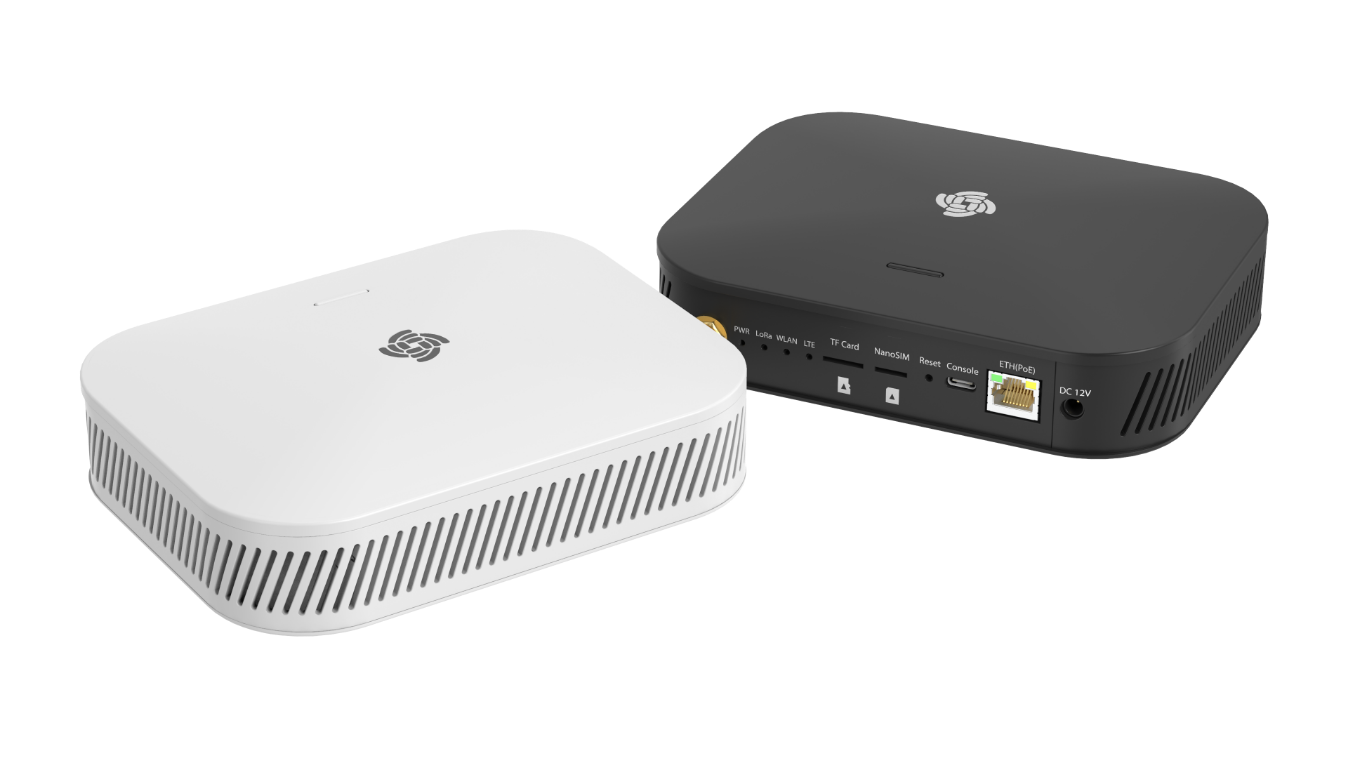

The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. Moreover, the gateway supports LTE uplink communication connections (optional).

As with the other RAKwireless Industrial Gateways, it also supports MQTT Bridge mode, with the option for TLS authentication.

Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.

The open-source software for the management and configuration of this gateway device is based on OpenWRT. It has a built-in LoRa packet forwarder and a graphical user interface, allowing for a quick set-up without giving up the freedom of a fully customized solution.

RAK7268 also supports the MQTT Bridge function, can use the MQTT integrated to third-party platforms.

RAK7268 is especially suitable for small and medium-sized deployment scenarios in industry applications, saving the additional cost for server and R&D investment, and has the advantages of high execution efficiency.

Features

  • Full LoRaWAN Stack support (V 1.0.3) with Semtech SX1302
  • Supports 2.4 GHz Wi-Fi AP for configuration
  • 100M Base-T Ethernet with PoE
  • Multi back-haul with Ethernet, Wi-Fi, Cellular
  • OpenWRT software supports Web UI for easy configuration and monitoring
  • Can integrate with both private (ChirpStack) and public (TTN) network servers
  • TF card for log backup and LoRa frame buffering (in case of backhaul failover)
  • Built-in Network Server for easy deployment of applications and integration of gateways
  • LTE Cat 4 network (optional)

Packaging information

  • 1pc WisGate Edge Lite 2/2+
  • 1pc LoRa antenna
  • 1set Mounting screws
  • 1set Anchors
  • 1pc Power Adapter

Specifications for RAK7268 WisGate Edge Lite 2

Frequency band AS923 or AU915 or EU868 or IN865 or KR920 or US915
4G LTE without 4G LTE or with 4G LTE
Chipset SX1302
Waterproof IP30
