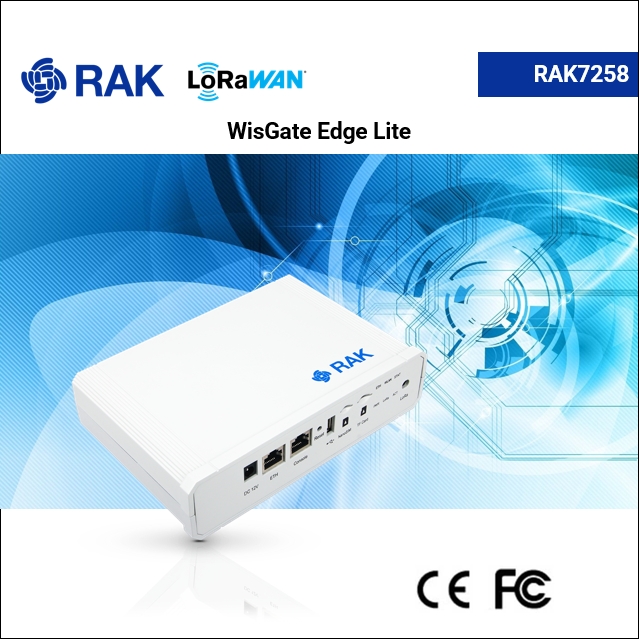

RAK7258 WisGate Edge Lite

  • Frequency band
  • 4G LTE

SG$ 327.63 SG$ 327.63 327.63 SGD

US$ 249.00

This combination does not exist.

Add to Cart

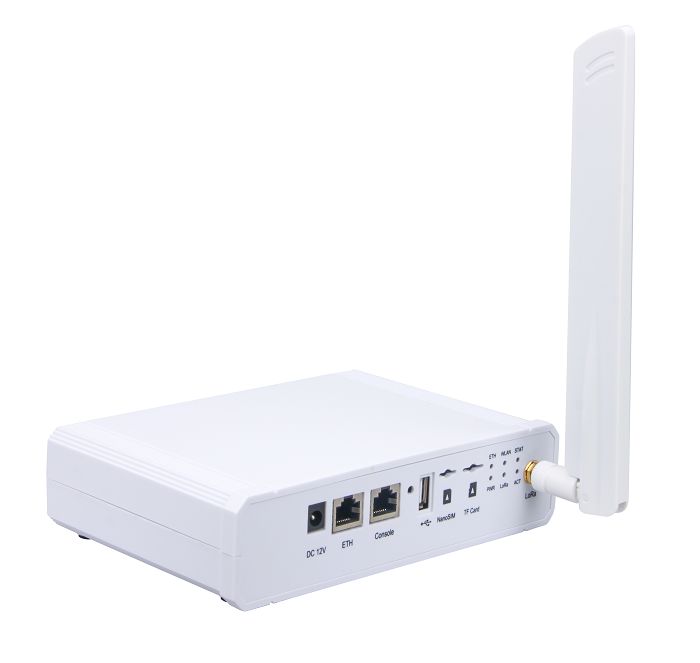

The RAK7258 Micro Gateway is a full 8-channel LoRa Gateway with built-in Ethernet connectivity for a straightforward setup


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

The RAK7258 WisGate Edge Lite is a full 8-channel Gateway with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an on-board Wi-Fi setup that allows it to be easily configured via the default Wi-Fi AP mode.


As with the other RAKwireless Industrial Gateways, it also supports MQTT Bridge mode, with the option for TLS authentication.


Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.


The open source software for the management and configuration of this gateway device is based on OpenWRT. It has a built-in LoRa packet forwarder and a graphical user interface, allowing for a quick set-up without giving up the freedom of a fully customized solution.


The Gateway has Line-of-Sight (LoS) ranges of up to 15 kilometers, while for highly urbanized environments it can cover more than 2 kilometers. It is a perfect solution for any LoRaWAN use case scenario.


The RAK7258 WisGate Edge Lite package includes a LoRa antenna, mounting screws, and anchors. It is a full 8-channel Gateway with built-in Ethernet connectivity for a straightforward.

Features

  • Full LoRaWAN® Stack support (version 1.0.2)

  • 100M base-T Ethernet with PoE (802.3 af)

  • Multi back-haul backup with Ethernet, WiFi, Cellular (optional LTE Cat 4)

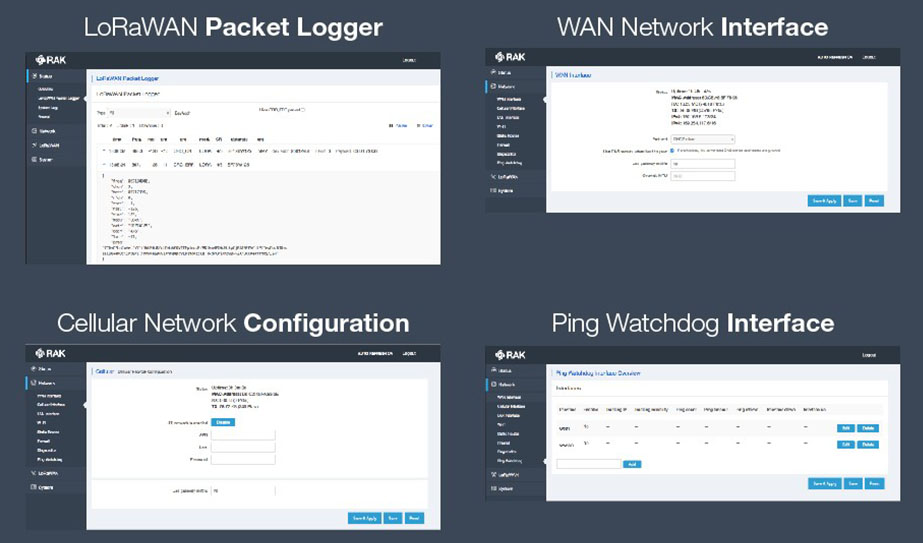

  • OpenWRT software supports with Web UI for easy configuration and monitoring

  • Can integrate with both private (ChirpStack) and public (TTN) Network Servers

  • Built-in LoRaServer for easy deployment of applications and integration of Gateways

  • TF card for log backup

Packaging information

Packaging

  • Product Dimensions: 260mm x 200mm x 50mm
  • Product Weight: 0.4kg
  • Package Inclusions:
    • WisGate Edge Lite
    • LoRa antenna
    • Mounting screws
    • Anchors
    • Power Adapter

Specifications for RAK7258 WisGate Edge Lite

Frequency band AS923 or AU915 or EU868 or IN865 or KR920 or US915
4G LTE without 4G LTE or with 4G LTE
