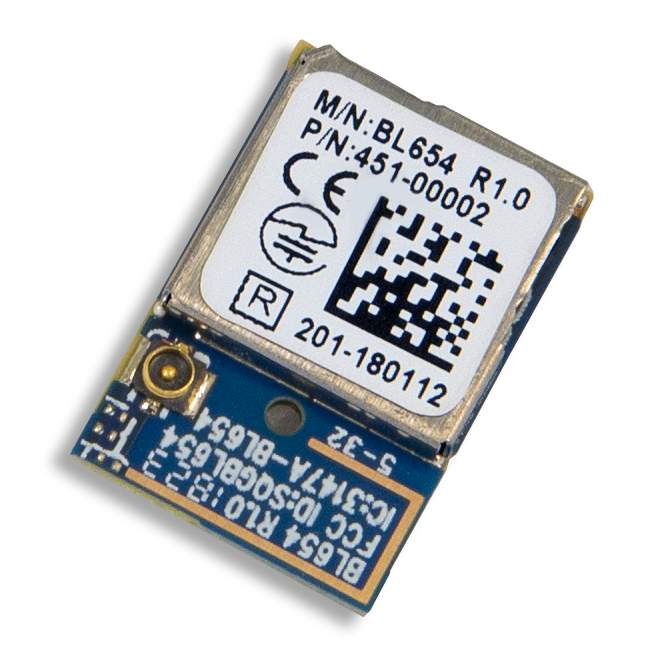

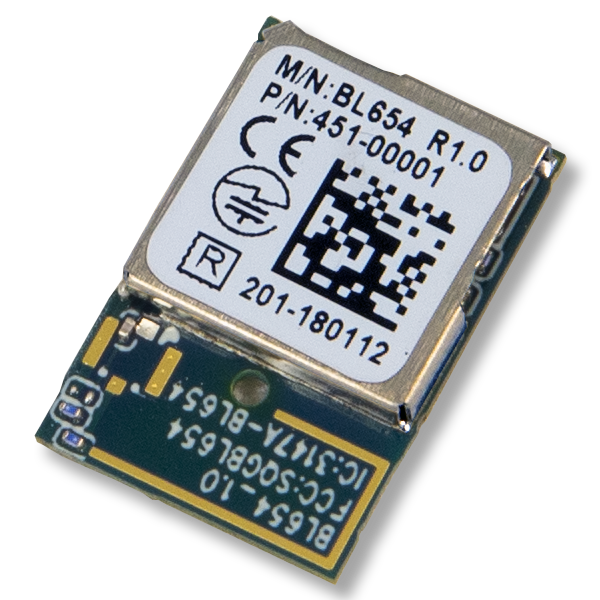

Laird BL654 Bluetooth Module with NFC

  • BT Class
  • Standard Compliance
  • Dual Mode
  • Interfaces
  • Other wireless
  • MCU
  • Operation Temperature
  • Stack on Board
  • Antenna
  • Certification
  • Transmit Power

SG$ 12.91 SG$ 12.91 12.91 SGD

US$ 9.55

This combination does not exist.

Add to Cart

The BL654 series brings out all nRF52840 hardware features and capabilities including USB access, up to 5.5V supply considerations, and 802.15.4 (Thread) implementation.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity


Laird Connectivity simplifies the rapid integration of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market.


FIND OUT MORE

BL654 Bluetooth 5.1 module

A complete multi-protocol embedded wireless offering with exceptional processing capability, all at a micropower budget. Powered by Nordic’s nRF52840 silicon, the small form factor BL654 modules, DVKs and USB Dongle provide for a secure, robust BLE and Cortex -M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for the Nordic SDK, a simple, intuitive AT Command Set, as well as Laird’s own smartBASIC environment.

Features


  • Bluetooth 5.1 & Thread (802.15.4) - Bluetooth Low Energy (BLE) plus NFC, featuring Nordic nRF52840

  • Widest Range of Configurable Interfaces - UART, I2C, SPI, ADC, GPIO, PWM, FREQ, USB, and NFC

  • 2Mbps & LE Long Range - Support for 2Mbps, 1Mbps, & 125kps coded

  • Hostless Operation with Powerful Core - Internal MCU reduces BOM and Cortex-M4F (1Mbit Flash, 256k RAM)

  • Application Design Choice - Leverage Laird’s smartBASIC, simple AT Command Set or utilize Nordic SDK directly

  • USB Dongle Option - Packaged USB Adapter – bring full Bluetooth 5.1 connectivity to ANY device with a virtual COM port capability

Applications

Specifications for Laird BL654 Bluetooth Module with NFC

Antenna External Antenna or Integrate Antenna
BT Class Class 1
Standard Compliance RoHS REACH
Dual Mode No
Interfaces UART, I2C, SPI, ADC, PDM, GPIO, USB
Other wireless NFC
MCU Cortex M4F
Operation Temperature -40 °C ~ +85 °C
Stack on Board Yes
Certification FCC CE IC RCM SIG
Transmit Power 8dBm
