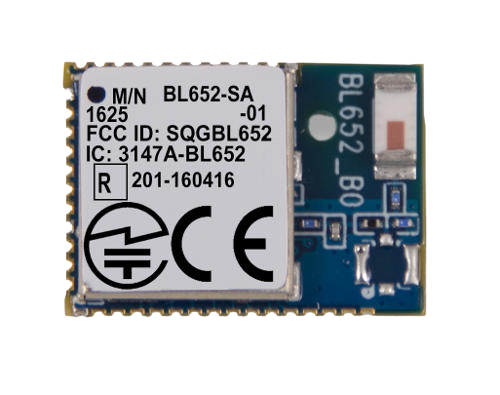

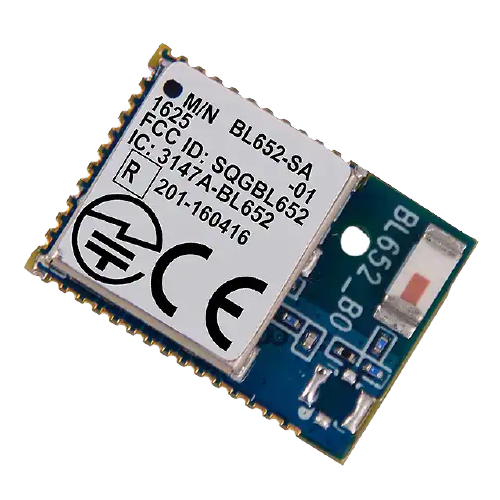

BL652 Bluetooth 5 with NFC

  • BT Class
  • Interfaces
  • Other wireless
  • Operation Temperature
  • Stack on Board
  • Antenna
  • BLE connection
  • Bluetooth mode
  • Certification
  • Chipset

SG$ 10.07 SG$ 10.07 10.07 SGD

US$ 7.45

This combination does not exist.

Add to Cart

Bluetooth v5.0 Module with NFC


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity

Laird Connectivity simplifies the rapid integration of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market.


FIND OUT MORE

Overview


Laird’s BL652 contains the latest generation silicon with Bluetooth v5 capabilities and groundbreaking ultra-low power performance. Building on the expertise of the BL600 Series, the BL652’s smaller form factor, class-leading Nordic nRF52 silicon, optimized low power schemes, and smartBASIC programming language provides a secure, stable, hostless Bluetooth environment. The BL652 introduces Bluetooth v5 (Firmware v28.7.3.0 or later) and NFC, bringing industrial security and feature expansion to Laird’s proven Bluetooth Low Energy modules. Let Laird’s innovative BL652 series and decades of expertise in Bluetooth module design speed your product to market.

Features


  • Bluetooth 5 Bluetooth Low Energy (BLE) plus NFC

  • Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM, FREQ, and NFC

  • Industrial Temp Rating (-40º to +85º C)

  • Ultra-Small footprint (14mm x 10mm x 2.1mm)

  • BLE Peripheral/Central roles with DTM embedded

  • Major security upgrades: AES-128, Diffie-Hellman pairing, link-layer privacy

  • Hostless operation – Internal MCU reduces BOM

  • Larger flash file systems for data and app storage

  • Built on years of experience with Nordic (BL600 Series BLE modules)

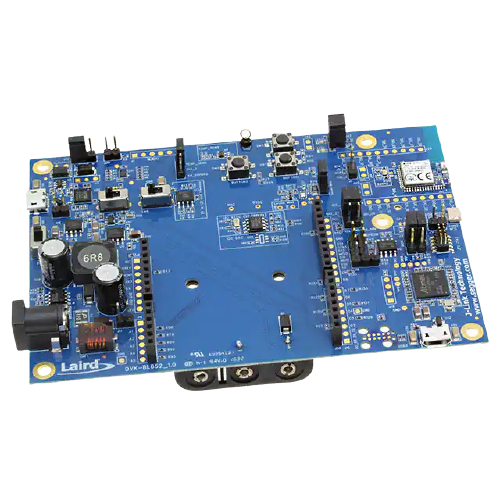

  • Fully featured development kit with Arduino shield connectors, support for multiple external sensors

  • Application Design Choice: Leverage our smartBASIC or utilize Nordic SDK directly.


Applications

Specifications for BL652 Bluetooth 5 with NFC

Antenna Internal antenna or external antenna
BT Class Class 2
Interfaces UART
Other wireless NFC
Operation Temperature -40 °C ~ +85 °C
Stack on Board Yes
BLE connection 8
Bluetooth mode BLE5.0
Certification FCC, IC, CE, MIC, SIG, KC
Chipset nRF52832
