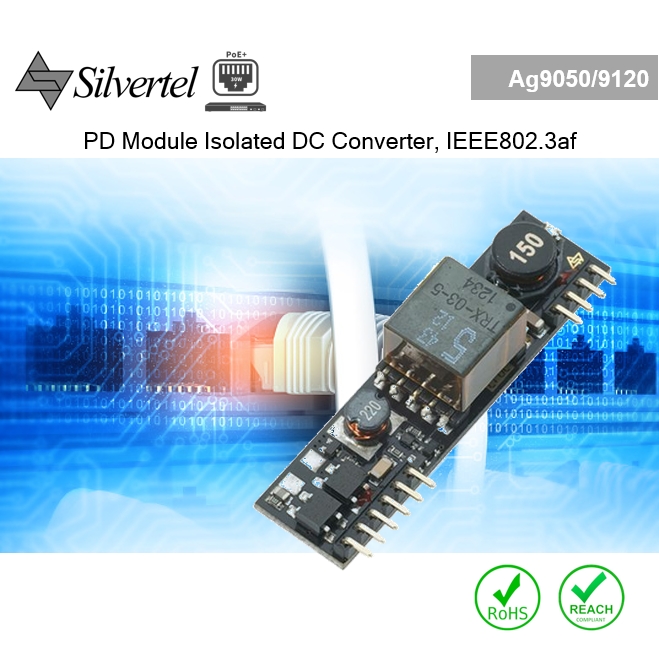

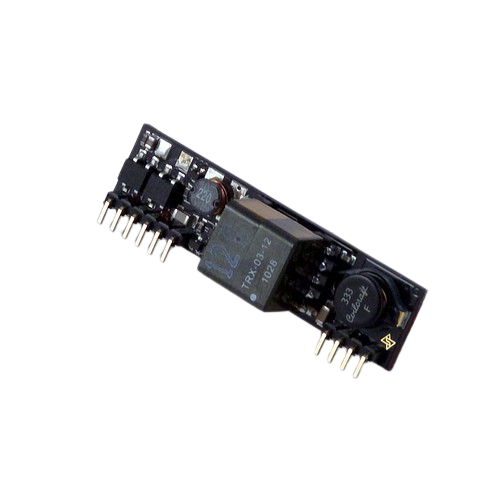

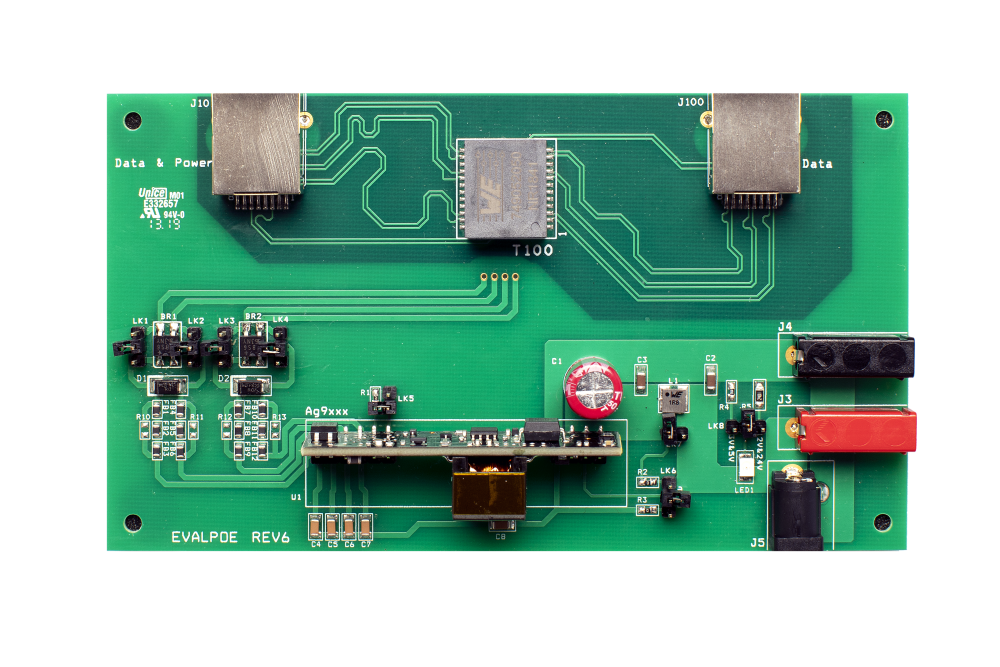

Ag9120-S PD Module, Isolated DC-DC converter, IEEE802.3af compliant, 5V or 12V Output
The Silvertel Ag9000-S series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The Silvertel Ag9000-S series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables and the Ag9000-S series have two pairs of power inputs pins: - VA1&2 and VB1&2 to accommodate this.
The Ag9000-S signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9000 is compatible with Class 0 to Class 3 equipment. The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.
Features
IEEE802.3af compliant
Small SIL package size - 56mm (L) x 14mm (H)
Low output ripple and noise
Input voltage range 36V to 60V
Only one low cost external decoupling capacitor required
Overload and short-circuit protection
Adjustable Output
High efficiency DC/DC converter
1500V isolation (input to output)
Silver Telecom design-in assistance
Specifications for Ag9120-S PD Module, Isolated DC-DC converter, IEEE802.3af compliant, 5V or 12V Output
| Output Voltage | 5V or 12V |
| Role | PD |
| Compliance | IEEE 802.3af 13W |
| Temperature Range | Industrial Temperature with Temp protection |
| Power module package | SIL |
| Build in Bridge | No |
| Protection | Overload and short-circuit |
| Input Voltage | 36~57V |
