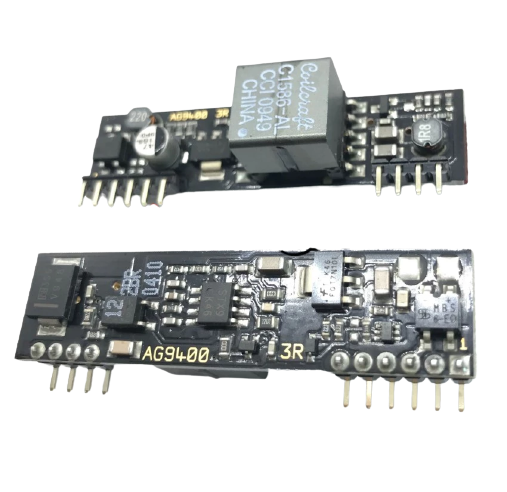

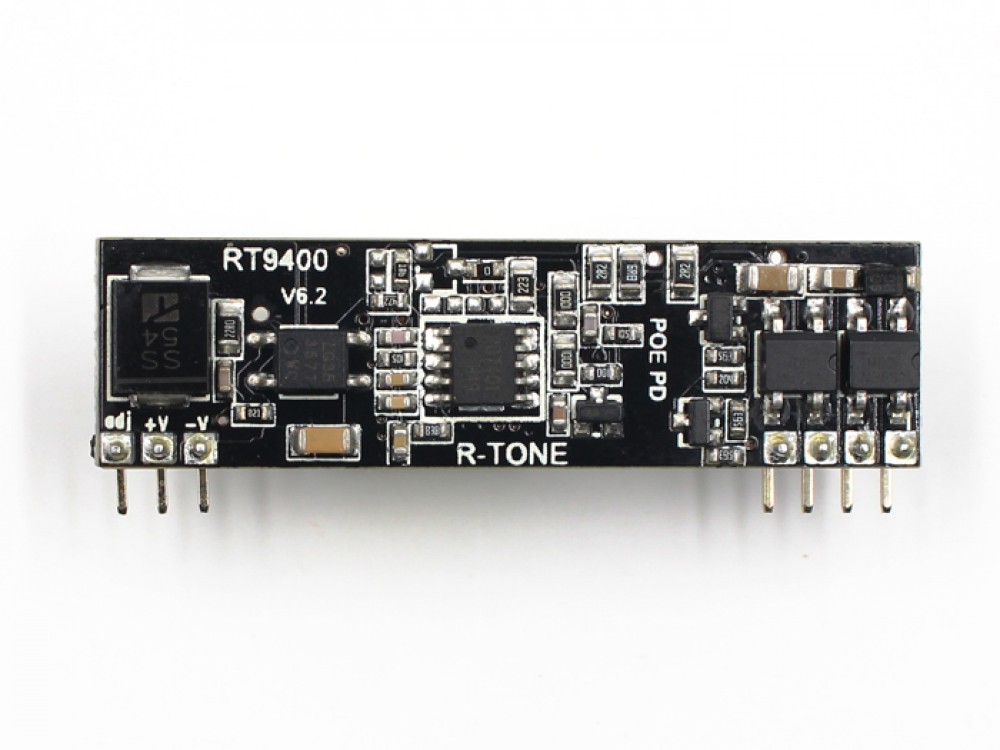

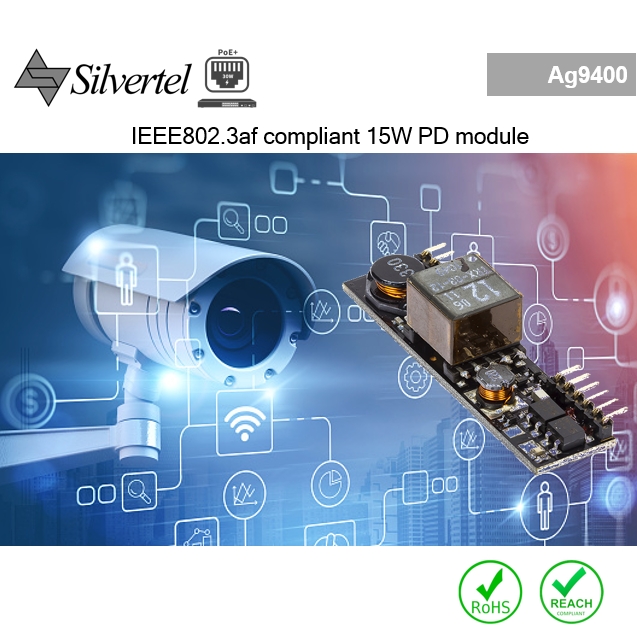

Ag9424-S PD Module, Isolated DC-DC converter, Includes Bridge Rect diodes, IEEE802.3af compliant, 5V, 12V or 24V
PD Module, Isolated DC-DC converter, Includes Bridge Rect diodes, IEEE802.3af compliant, 5V, 12V or 24V, SIL.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The Silvertel Ag9400 series of modules are designed to extract power from a conventional twisted-pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard.
The Ag9400 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9400 provides a Class 0 signature. The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.
Features
IEEE802.3af compliant
Small SIL package size - 56mm (L) x 14mm (H)
Low output ripple and noise
Input voltage range 36V to 60V
Only one low-cost external decoupling capacitor required
Overload and short-circuit protection
Adjustable Output
High efficiency DC/DC converter
1500V isolation (input to output)
Silver Telecom design-in assistance
Specifications for Ag9424-S PD Module, Isolated DC-DC converter, Includes Bridge Rect diodes, IEEE802.3af compliant, 5V, 12V or 24V
| Output Voltage | 5V or 12V or 24V |
| Build in Bridge | Yes or No |
| Role | PD |
| Compliance | IEEE 802.3af 13W |
| Temperature Range | Normal |
| Power module package | SIL |
| Channel | Single Channel |
| Power isolution | 1500Vdc |
| Protection | Thermal, Overload and short-circuit |
