USB 2.0 Ranger® 2301GE-LAN 1 port USB 2.0 100m CAT 5e cabling or LAN

  • USB standard
  • Distance
  • Power Adapter
  • USB ports
  • Transmission Media
  • Power Adapter Location

SG$ 523.05 SG$ 523.05 523.05 SGD

US$ 389.00

This combination does not exist.

Add to Cart

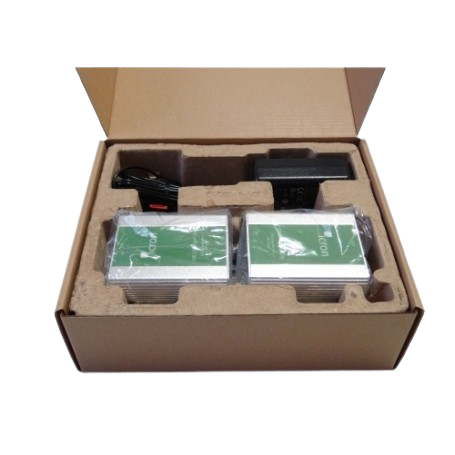

The Ranger 2301GE-LAN comes with the following items in the box:

Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
100-240V power adapter
Country specific power cord
Quick start guide
*Please be aware that the Ranger 2301GE-LAN does NOT come with a CAT5e cable.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.

Do something

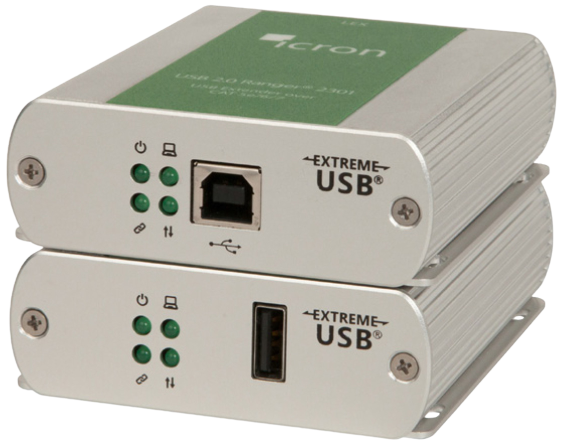

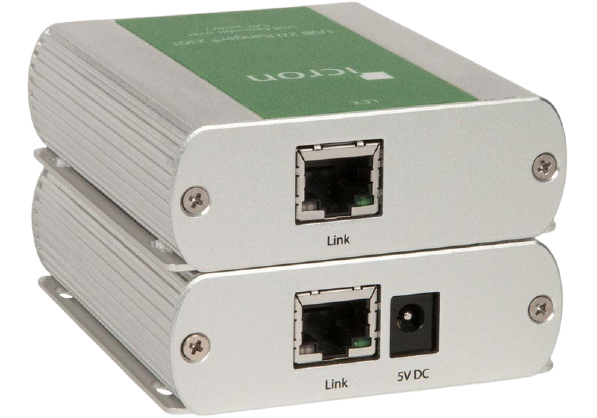

The USB 2.0 Ranger® 2301GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or single CAT 5e/6/7 cable up to 100m in a point-to-point fashion. Extending over LAN saves on installation time and provides IT visibility.

This 1-port USB 2.0 LAN extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®

Additionally, this ExtremeUSB® based 1-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.


  • Extend all USB 2.0/1.1 devices up to 480 Mbps
  • Extender over GigE LAN or up to 100m point-to-point over single CAT 5e/6/7 cable
  • Easy installation: Pre-paired for networked configuration
  • Supplies up to 1 Amp to the USB port
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two-year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOSTM, and Linux®

Specifications for USB 2.0 Ranger® 2301GE-LAN 1 port USB 2.0 100m CAT 5e cabling or LAN

USB Extender
USB standard USB 2.0
Distance 100m
Power Adapter Europe or Australia or Japan or North America or Unit Kingdom
USB ports 1 USB ports
Transmission Media CAT 5e/6/7 or Local Area Network
Power Adapter Location REX
