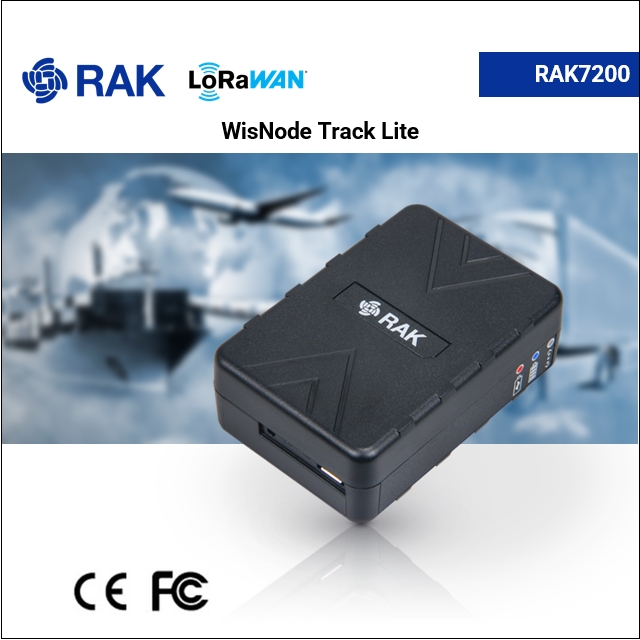

RAK7200 WisNode Track Lite

  • Frequency band

SG$ 53.40 SG$ 53.40 53.4 SGD

US$ 39.50

This combination does not exist.

Add to Cart

The RAK7200 is a LPWAN Tracker device with a 3.7V rechargeable Li-Ion battery and a GPS modem. It is built around a low-power LoRa® module, which integrates the ultra-low-power STM32L073 micro-controller, the SX1276 LoRa® long-range modem, and the CXD5603GF GPS modem.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


FIND OUT MORE

Overview

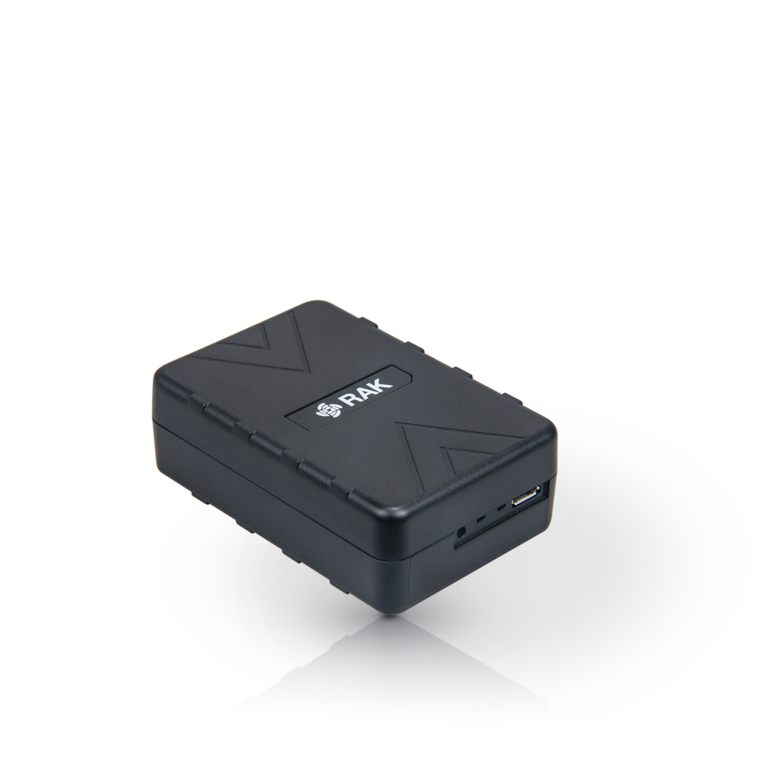

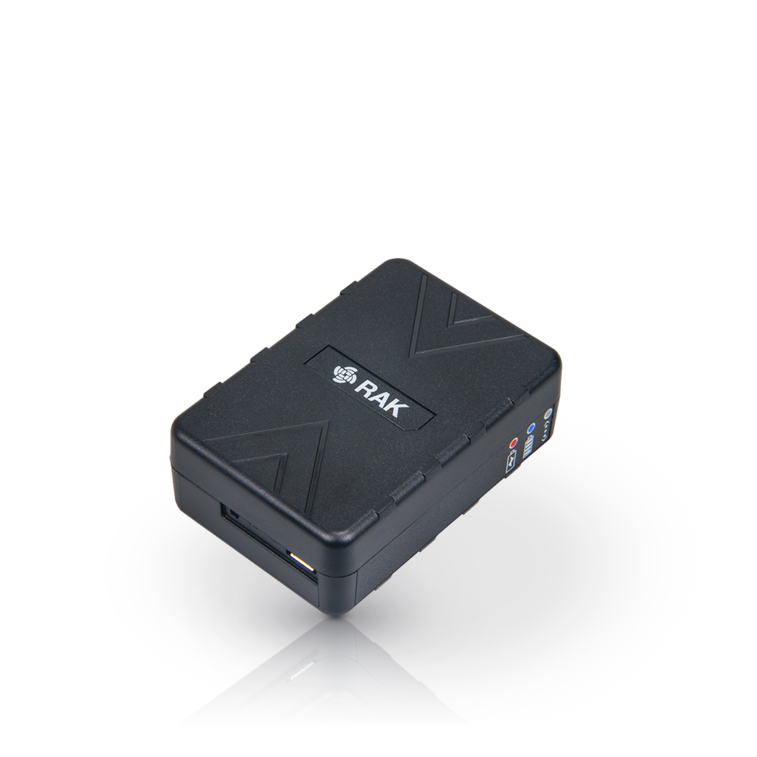

The RAK7200 is an LPWAN Tracker device with a 3.7V rechargeable Li-Ion battery and a GPS modem. It is built around a low-power LoRa® module, which integrates the ultra-low-power STM32L073 micro-controller, the SX1276 LoRa® long-range modem, and the CXD5603GF GPS modem.


The device can be used as a quick prototyping tool for LoRaWAN® application development. It is suited for IoT applications such as asset tracking, smart vehicle management, and location-based services.

Features

  • Built-in digital motion sensor LIS3DH, which has dynamic user selectable full scales of ±2g/±4g/±8g/±18g and is capable of measuring accelerations with output data rates from 1Hz to 5kHz.

  • Built-in a 9-axis sensor, which includes a triple-axis gyroscope, a triple-axis accelerometer, and a triple-axis magnetometer.

  • LoRaWAN® 1.0.2 protocol stack support - ABP or OTAA mode.

  • LoRa® and GPS antenna are integrated inside the casing.

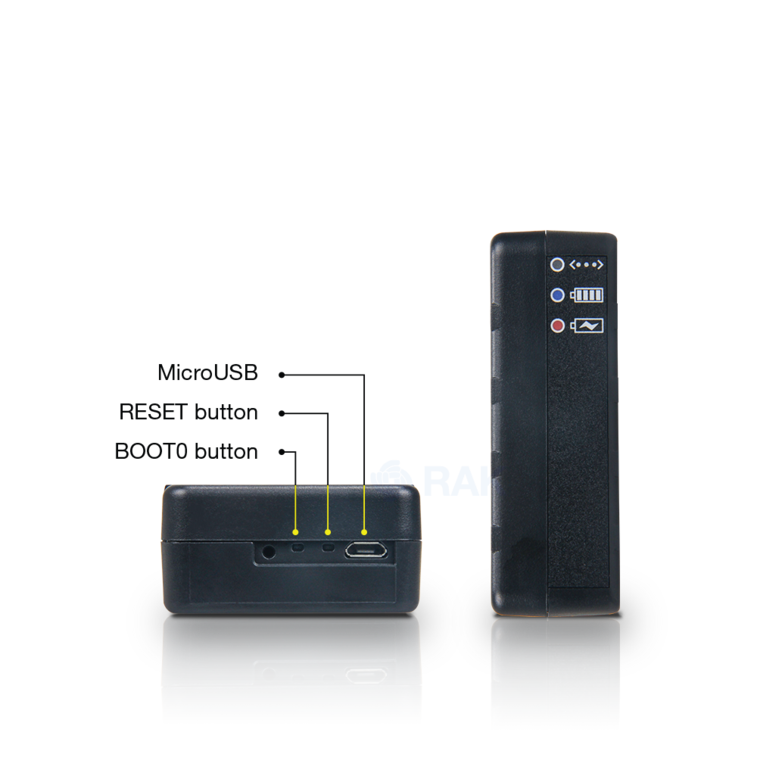

  • Micro USB for configuration and charging of the battery

  • Supports global license-free frequency band: IN865, EU868, US915, AU915, KR920, and AS923.

Specifications for RAK7200 WisNode Track Lite

Frequency band AS923 or EU868 or IN865 or KR920 or US915
