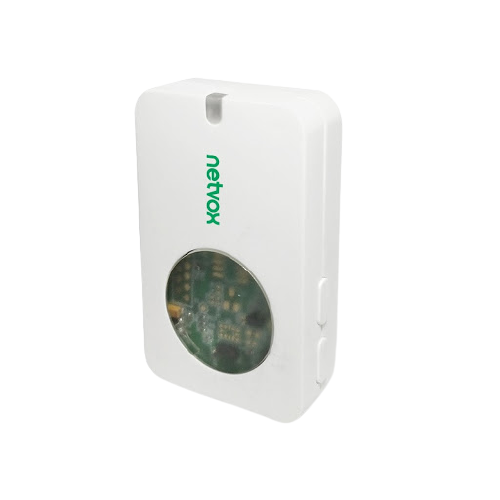

R311LA Wireless Infrared Proximity Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • Certification
  • Transmit Power
  • Chipset
  • Sensors

SG$ 128.95 SG$ 128.95 128.95 SGD

US$ 98.00

This combination does not exist.

Add to Cart

R311LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

R311LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.

Features

  • Applying SX1276 wireless communication module
  • 2 sections of 3.0V CR2450 coin cell batteries in parallel
  • Infrared proximity sensor
  • Compatible with LoRaWANTM Class A
  • Using frequency hopping spread spectrum technology
  • Configure parameters through third-party platform
  • Read data and set alarms via SMS text and email (optional)
  • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices /  Cayenne

  • The product has low power consumption and supports longer battery life
  • Note:
  • The battery life is determined by the frequency reported by the sensor and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html .
  • On this website, users can find various types of batteries with different configurations.

Specifications for R311LA Wireless Infrared Proximity Sensor

Frequency band AS923 or AU915 or EU868 or US915
Waterproof IP30
Class Class A
Power type 2 pcs 3.0V CR2450 button batteries
Sleep Power consumption 12uA
Rx Sensitivity -136dBm
Sensor Measurement Range 10cm
Certification CE
Transmit Power 16dBm
Chipset SX1276
Sensors Infra sensor
