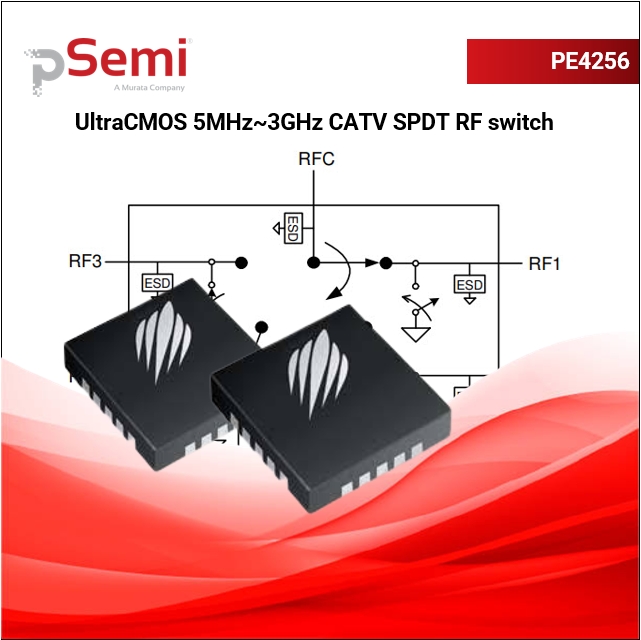

PE4256 5MHz ~3GHz UltraCMOS® SPDT CATV Switch

    SG$ 1.53 SG$ 1.53 1.53 SGD

    US$ 1.14

    This combination does not exist.

    Add to Cart

    SPDT, CATV, High Iso, Absorptive RF Switch


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

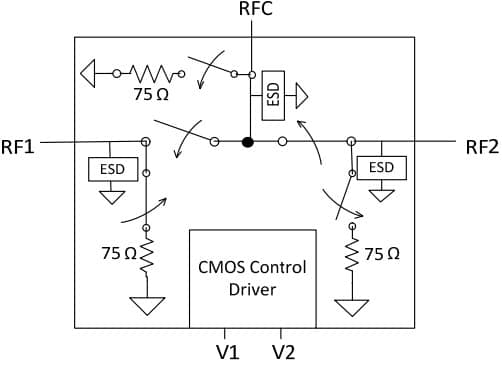

    The PE4256 is an UltraCMOS® switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 3 GHz. This single-supply SPDT switch integrates a two-pin CMOS control interface. It also provides low insertion loss with extremely low bias requirements while operating on a single 3V supply. In a typical CATV application, the PE4256 provides for a cost-effective and manufacturable solution when compared to mechanical relays.

    Features

        75Ω characteristic impedance
        Integrated 75Ω terminations
        CTB performance of –90 dBc
        High isolation 65 dB at 1000 MHz
        Low insertion loss: typically 0.5 dB at 5 MHz, 0.9 dB at 1000 MHz
        High input IP3: >50 dBm
        CMOS two-pin control
        Single +3 volt supply operation
        Low current consumption: 8 μA
        Unique all off terminated mode
        Packaging: 4 × 4 mm QFN
