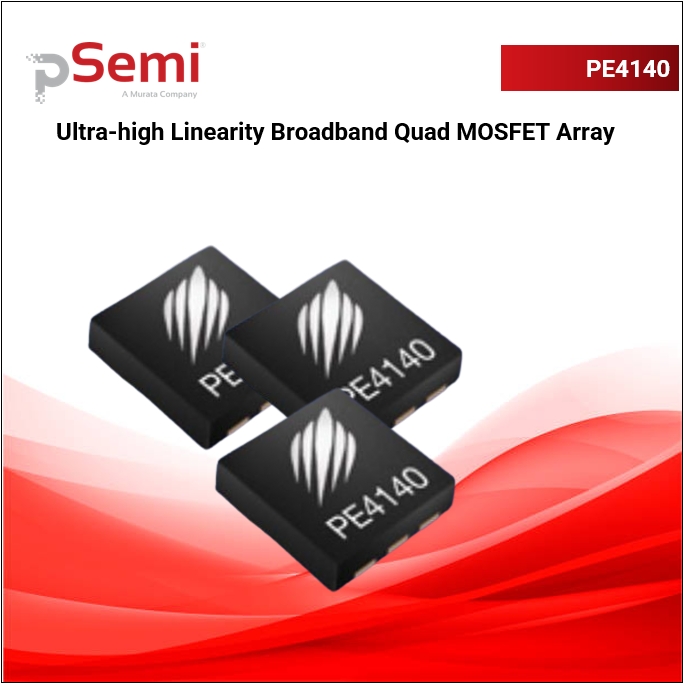

PE4140 High-Linearity MOSFET Quad

    SG$ 3.62 SG$ 3.62 3.62 SGD

    US$ 2.69

    This combination does not exist.

    Add to Cart

    High-Linearity MOSFET Quad


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

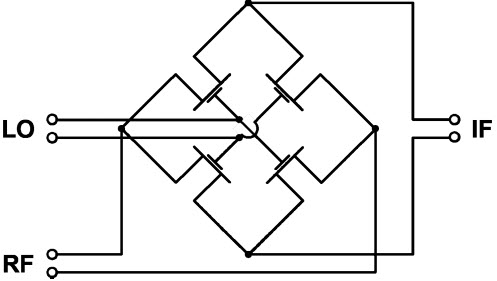

    The PE4140 is a high linearity, passive broadband quad MOSFET array with high dynamic range performance capable of operation beyond 6 GHz. This quad array operates with differential signals at all ports (RF, LO, IF), allowing mixers to be built that use LO powers from -7 dBm to +20 dBm. Typical applications range from frequency up/down-conversion to phase-detection for cellular/PCS base stations, wireless broadband communications and STB/cable modems. It is offered in a small 6-lead 3 × 3 DFN package.

    Features

        Ultimate quad MOSFET array
        Ultra-high linearity, broadband performance beyond 6.0 GHz
        Ideal for mixer applications
        Up/down conversion
        Low conversion loss
        High LO isolation
        Packaging: 6-lead 3 × 3 mm DFN
