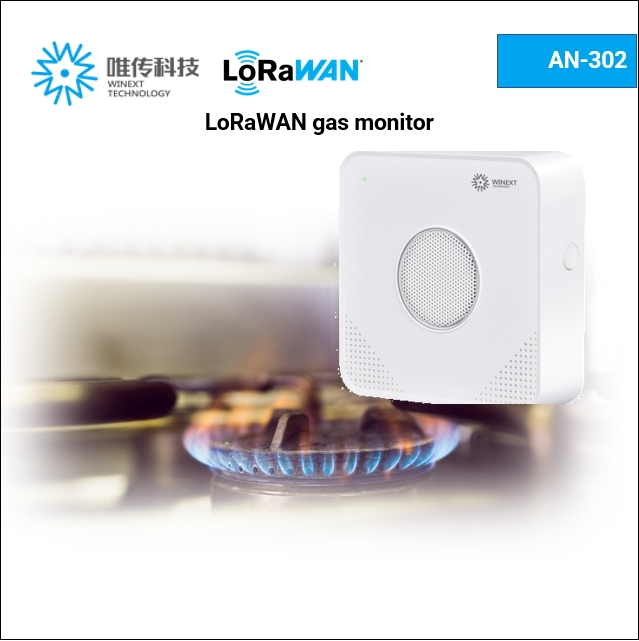

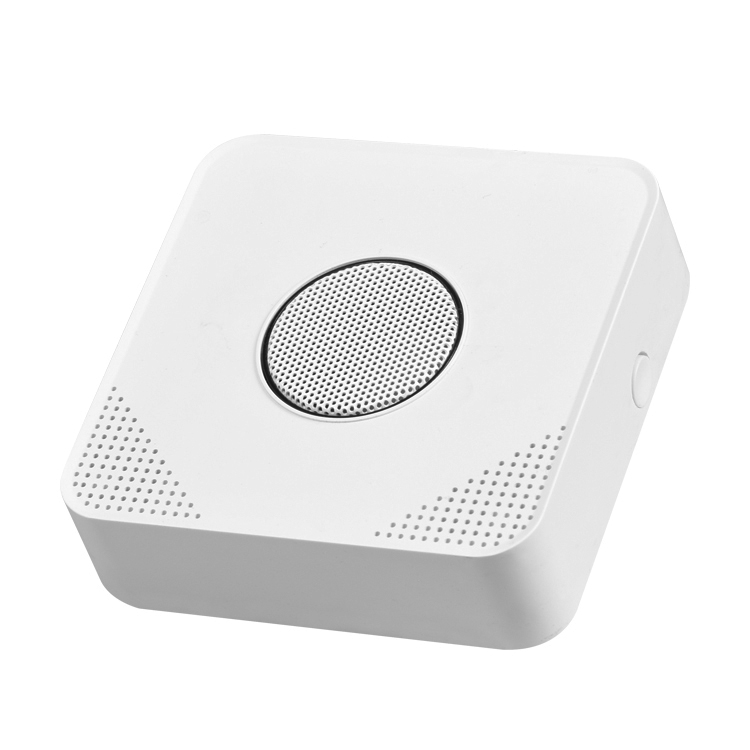

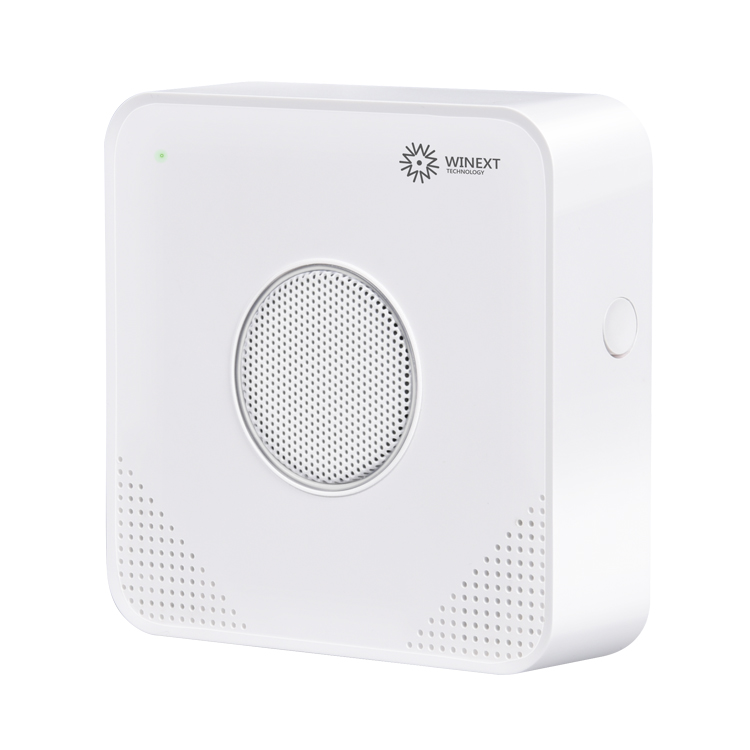

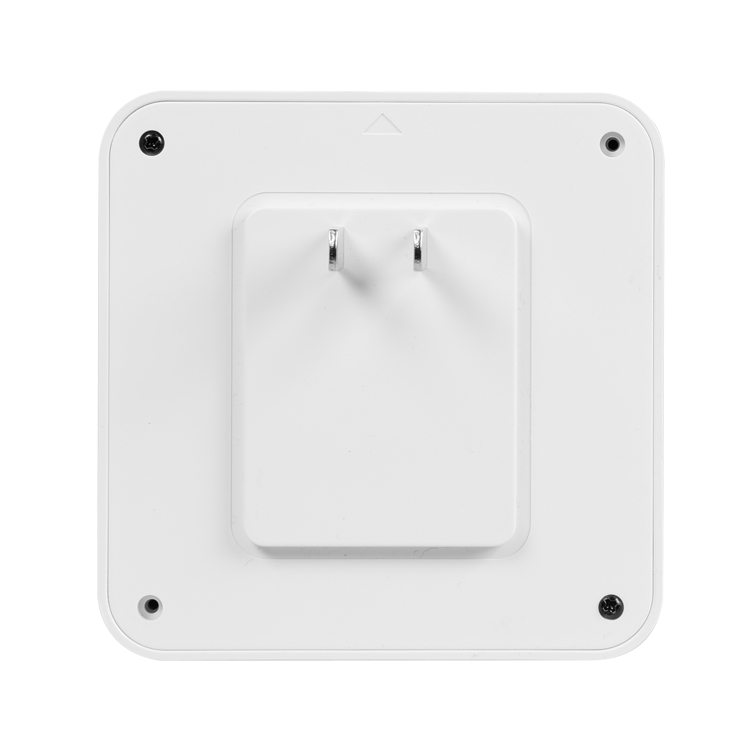

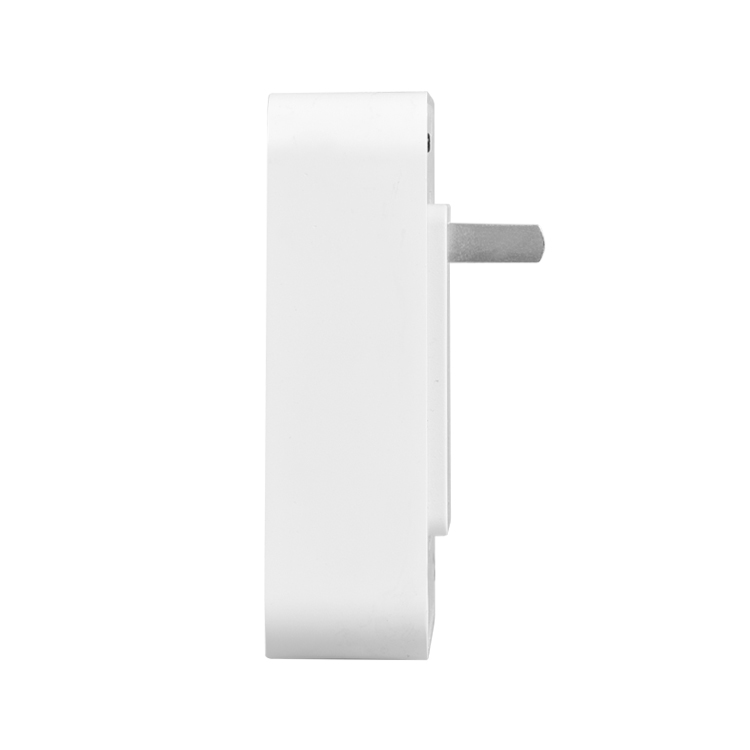

LoRaWAN gas monitor AN-302

  • Configuration Interface
  • Cable length
  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sensor Measurement Range
  • Battery Capacity

SG$ 89.47 SG$ 89.47 89.47 SGD

US$ 68.00

This combination does not exist.

Add to Cart

AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Winext

Winext Technology is an AIoT "end-to-end" one-stop solution provider. Focusing on R&D for IoT, we offer whole stack IoT products and system solutions. Our business covers smart city, smart community, smart firefighting, smart elevator, smart street lighting, smart parking and so on..


Do something

Overview

AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.

Features

  • Support LoRaWANTM Class A

  • Detecting methane gas leakage within 2 meters

  • Support AC220V

  • Built-in hardware watchdog circuit to ensure the long-term stable performance

  • Plastic shell with flame retardant material

  • Working temperature range of -10℃~ +55℃

  • Strong anti-interference capability

  • Easy to install

  • Plug and play

Specifications for LoRaWAN gas monitor AN-302

LoRaWAN
Configuration Interface UART
Uncategorized
Frequency band AS923 or AU915 or KR920 or US915
Cable length NA
Sensor Methane Sensor
Waterproof IP30
Class Class A
Power type AC220V
Sensor Measurement Range 7% LEL
Battery Capacity NA
