WisLink Cellular Pi Hat

  • 4G LTE

SG$ 105.45 SG$ 105.45 105.45 SGD

US$ 78.00

This combination does not exist.

Add to Cart

The RAK2013 Pi HAT is a Raspberry Pi 3B+ compatible cellular communication module. It is aimed at providing a Low Power Wide Area Network (LPWAN) connectivity to IoT devices. It has several configuration options of its onboard radio including the Quectel BG96/EG95. Thus it supports the following standards: 4G/LTE, Nb-IoT, CAT-M/CAT1/CAT4 Cellular.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

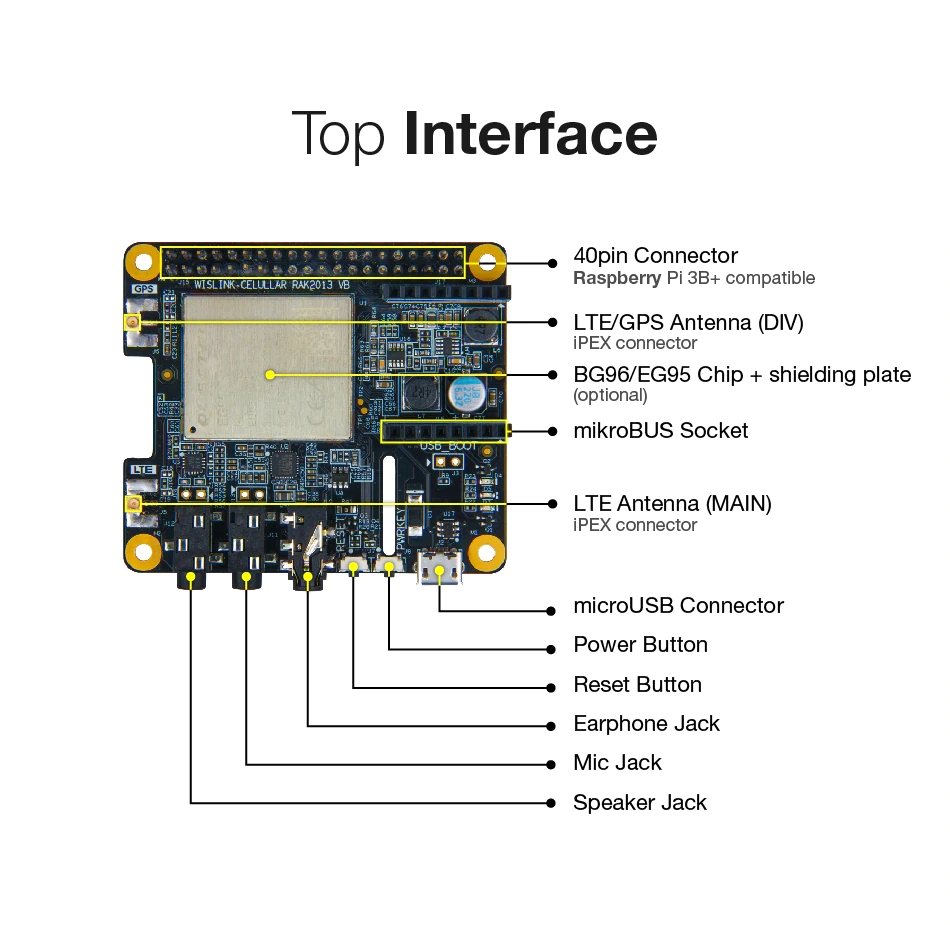

WisLink Cellular Pi Hat (RAK2013) is a Raspberry Pi 3B+ compatible cellular communication module. It is aimed at providing a Low Power Wide Area Network (LPWAN) connectivity to IoT devices. It has several configuration options of its onboard radio including the Quectel BG96/EG95. It supports the following standards: 4G/LTE, Nb-IoT, CAT-M/CAT1/CAT4 Cellular. Because of its integrated audio amp and codec, it is suitable for Voice over LTE (VoLTE) in carrier network scenarios where HD calls are a requirement. The necessary connectors for each type of operation are conveniently placed on one side of the board in order to provide easy access.

Features

  • Cellular support

  • Nb-IoT

  • LTE CAT-M1

  • LTE CAT1/CAT4

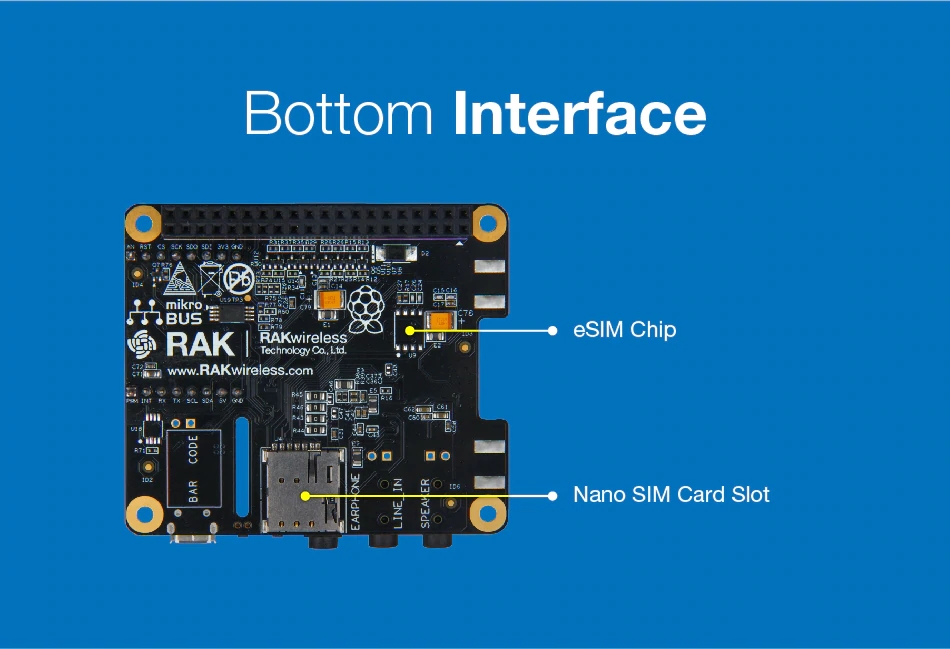

  • Support for both nano and eSIM

  • Integrated audio amp and codec for full VoIP support

  • Full compatibility with Raspberry Pi 3B+

  • Integrated mikroBUS header

  • GPS optional support (BG96 only)

  • Built-in EEPROM for storing of auto-configuration options

Specifications for WisLink Cellular Pi Hat

4G LTE BG96 or EG95-E or EG95-NA
