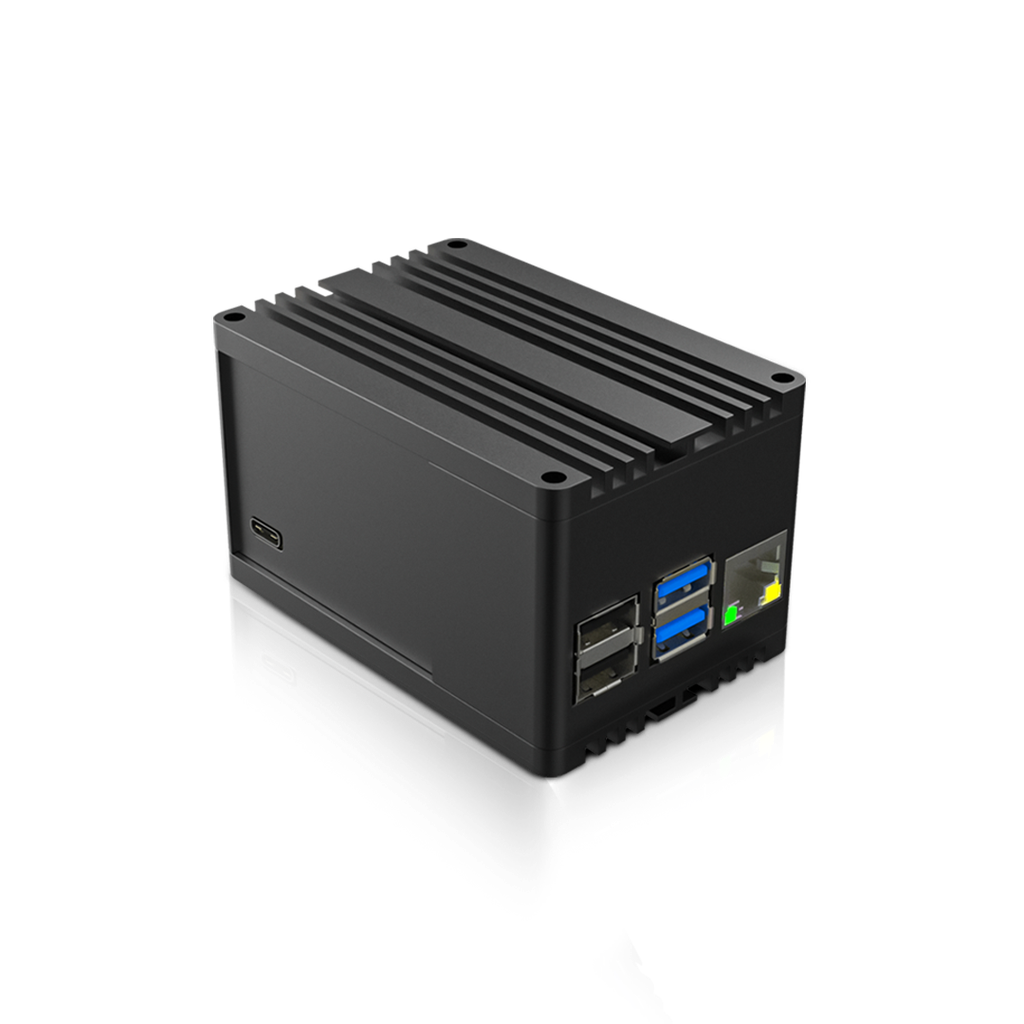

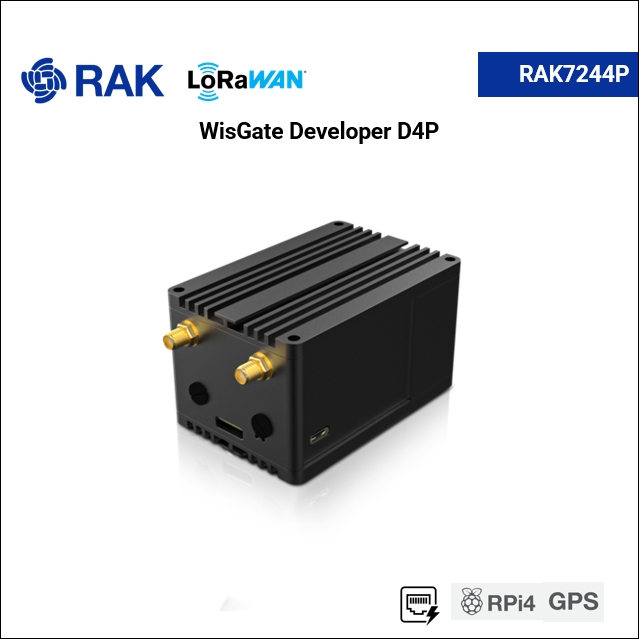

WisGate Developer D4P
WisGate Developer D4P (RAK7244P) this version allows for powering the gateway via PoE by adding the RAK9003 Pi HAT to the base configuration (RPi 4 + RAK2245 + RAK9003)
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The WisGate Developer D4 (RAK7244) is a successor of WisGate Developer D3 (RAK7243). This device consists of a Raspberry Pi 4, a RAK2245 Pi HAT, which includes a GPS module, and a Heat Sink for better performance and thermal heat dissipation management. Its housing is entirely built from aluminum.
The built-in RAK2245 Pi HAT uses the SX1301 RF front-end chip from Semtech, which is a powerful LoRa® digital processing engine. It is able to receive up to 8 LoRa® packets simultaneously sent with different spreading factors on different channels and available in multiple variants so it can be used for all LoRa Alliance® frequency bands. This unique capability allows for innovative network architectures to be implemented, which is advantageous over other short-range systems.
WisGate Developer D4 is a Class A and C compliant that is ideal for prototyping, proof-of-concept demonstrations or for the evaluation of future deployment scenarios. It includes a ready to use Firmware based on Raspbian OS, which makes it possible to connect the Gateway to any standard LoRaWAN® Server. It is developer-friendly as the large Raspbian OS community is a well-established one. It is especially suited to addressing a variety of applications like Smart Grids, Intelligent Farms, and other IoT Enterprise applications.
Refreshed Case design with a new MCU (Raspberry Pi4)
Preassembled, fully functioning LPWAN developer gateway
Full LoRaWAN® Stack support (version 1.0.2)
Supports for 8 channels and spreading factors (SF7-SF12)
Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
TX power up to 27dBm
RX Sensitivity: -139dBm
Integrates Ublox MAX-7Q GPS module
Quectel EG95 LTE module
Specifications for WisGate Developer D4P
|Frequency band||AS923 or AU915 or EU868 or IN865 or US915|
