WisGate Developer D3+

  • Frequency band

SG$ 375.84 SG$ 375.84 375.84000000000003 SGD

US$ 278.00

This combination does not exist.

Add to Cart

5.5V module Radial lead shrink wrap 3.5F


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

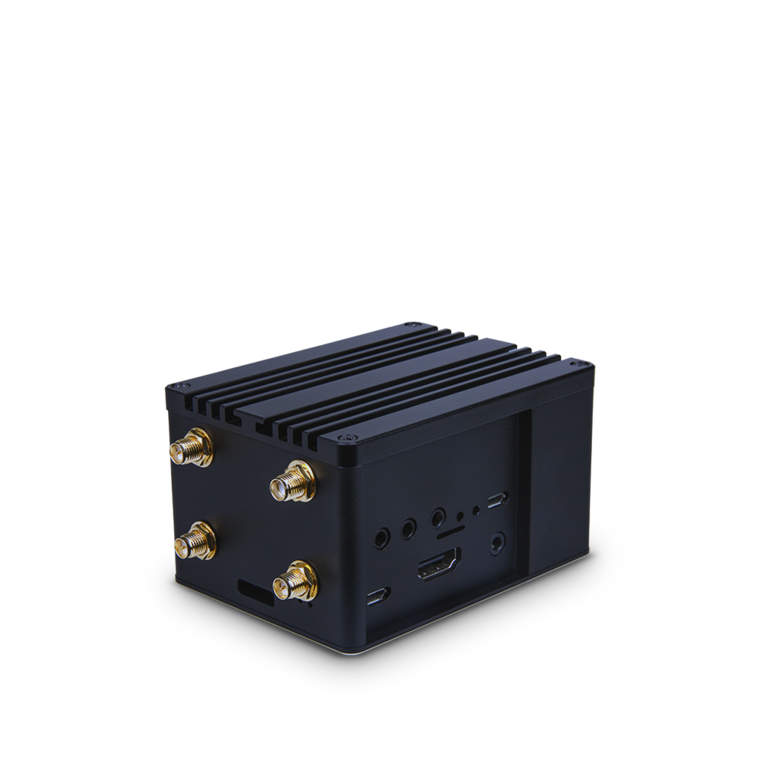

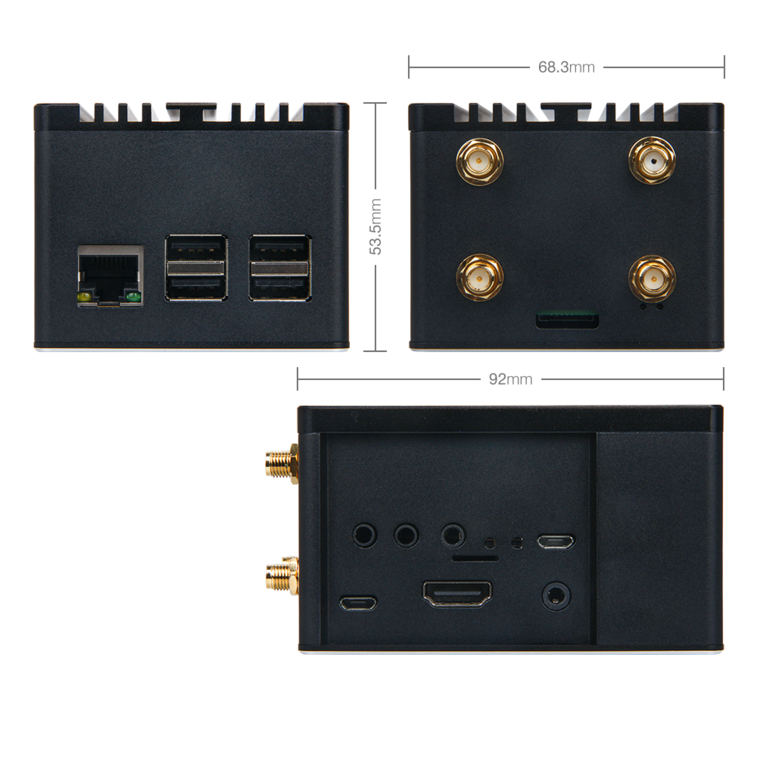

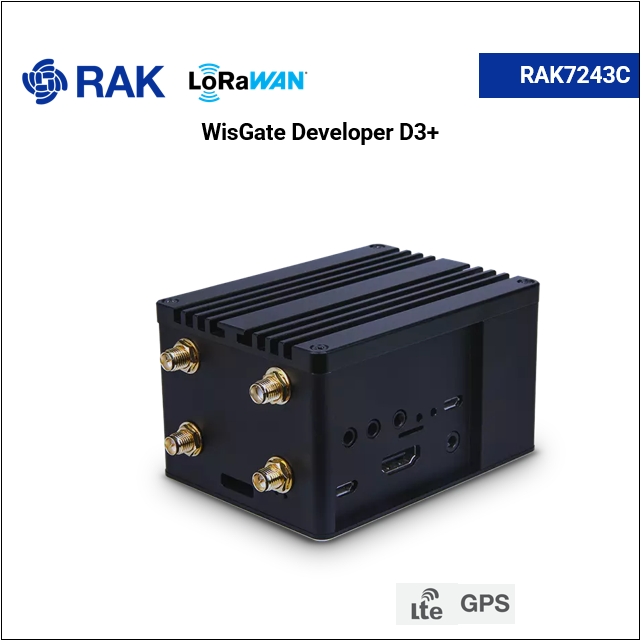

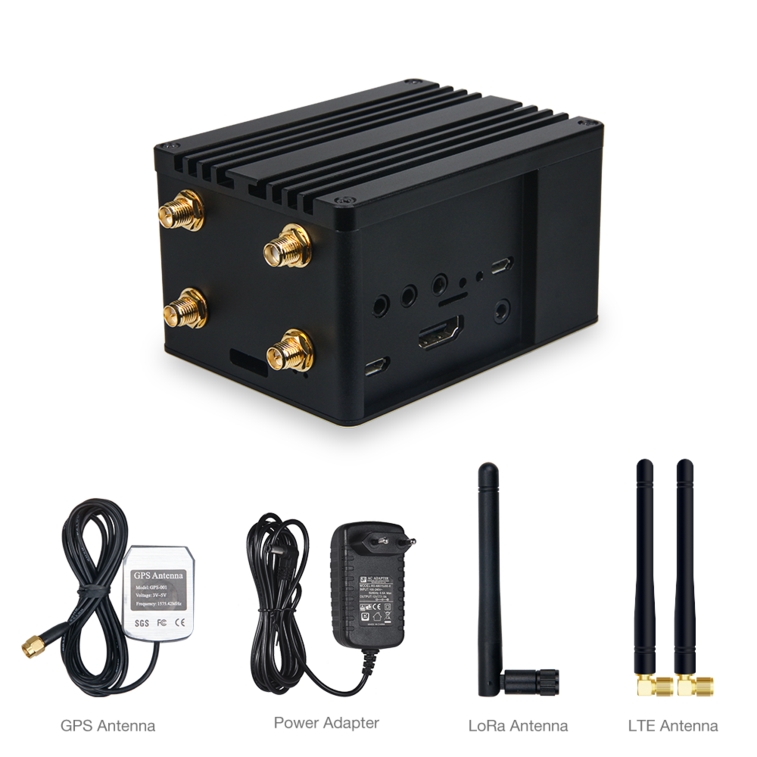

The RAK7243C is a fully-fledged 8 channel LoRaWAN® gateway that is Class A and C compliant. It consists of the following modules: RAK2245,  RAK2013 and Raspberry Pi 3B+.


At its core is the Raspberry Pi 3B+, which integrates all the other hardware components and runs the OS. The RAK2245 is the concentrator module, playing the role of a LoRa® transceiver.  (in addition to the Wi-Fi and Ethernet of the Raspberry Pi 3B+).


Software-wise one could choose to either go with TTN or LoRa Server in addition to bringing his own solution. TTN is more suitable for public, cloud deployment. LoRa Server provides a solution that can be run on a private server or the gateway itself.


Thus the RAK7243C is a flexible solution suitable for both small-scale projects, as well as large-scale industrial solutions. It provides a variety of connectivity options and its size and weight make it ideal for indoor deployment.


Features

  • Preassembled, fully functioning LoRaWAN Gateway

  • Full LoRaWAN Stack support (version 1.0.2)

  • Supports all 8 channels and spreading factors (SF7-SF12)

  • Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz

  • Tx Power: 27 dBm Max

  • RX Sensitivity: -139dBm

  • The new design integrates Ublox MAX-7Q GPS module

  • Quectel BG96/EG95 (depending on chosen configuration)

Specifications for WisGate Developer D3+

Frequency band AS923 or AU915 or EU868 or IN865 or US915
