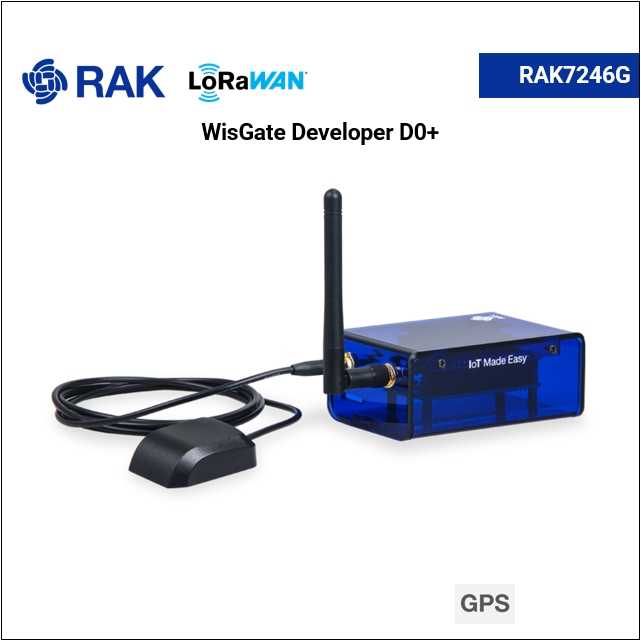

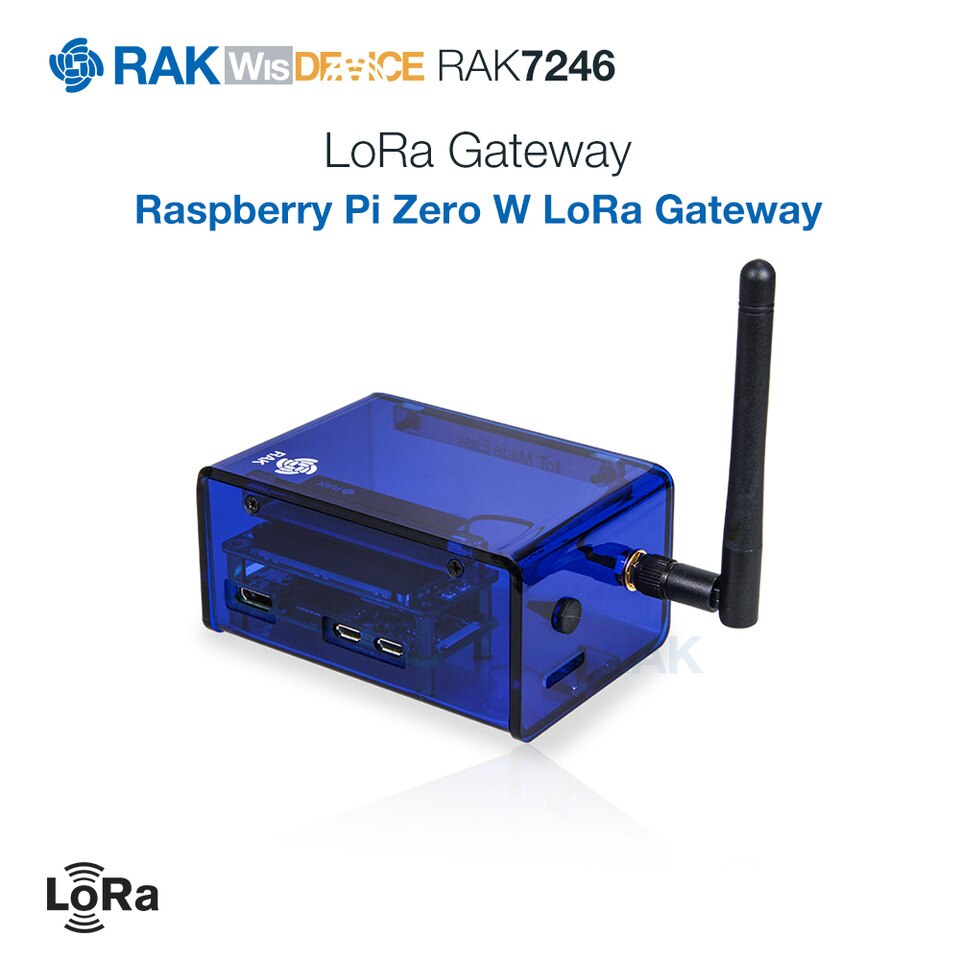

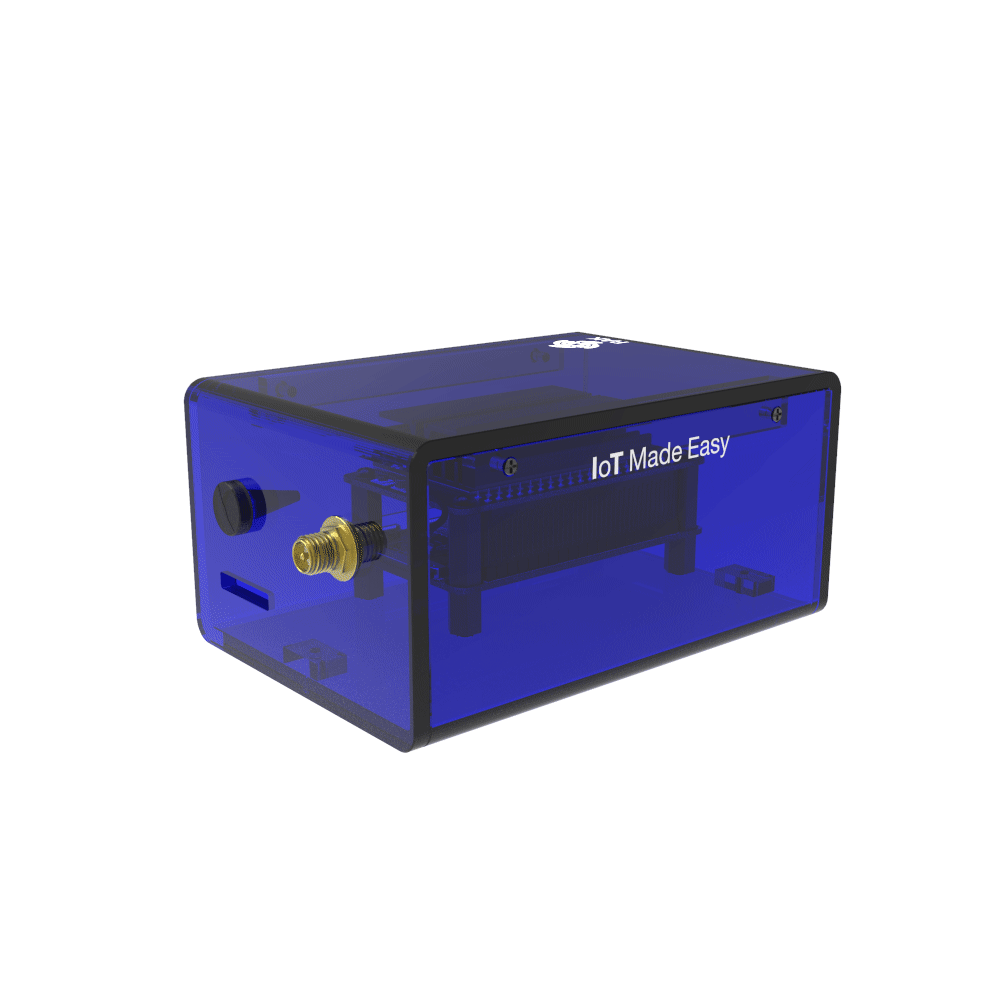

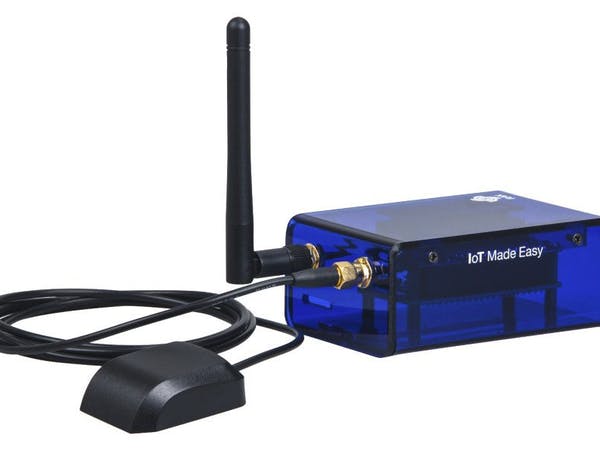

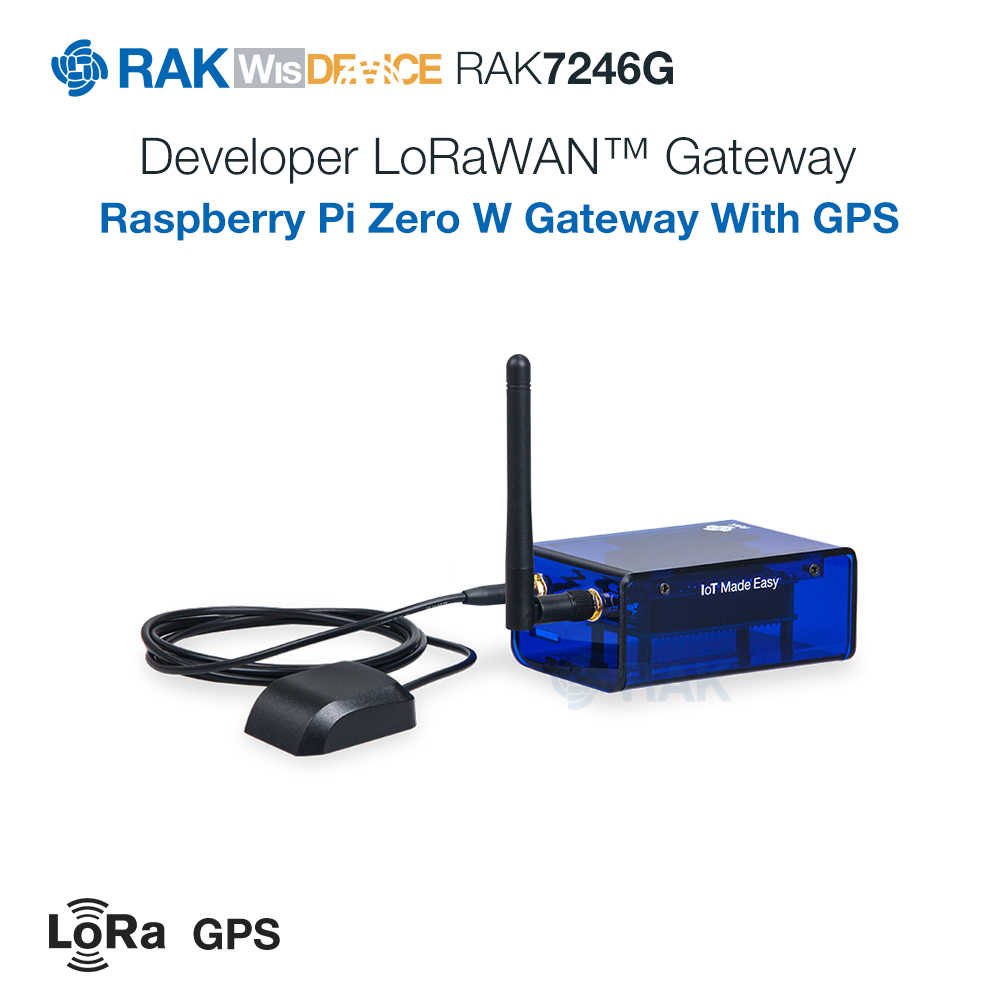

WisGate Developer D0+ is a LoRaWAN® developer gateway with GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

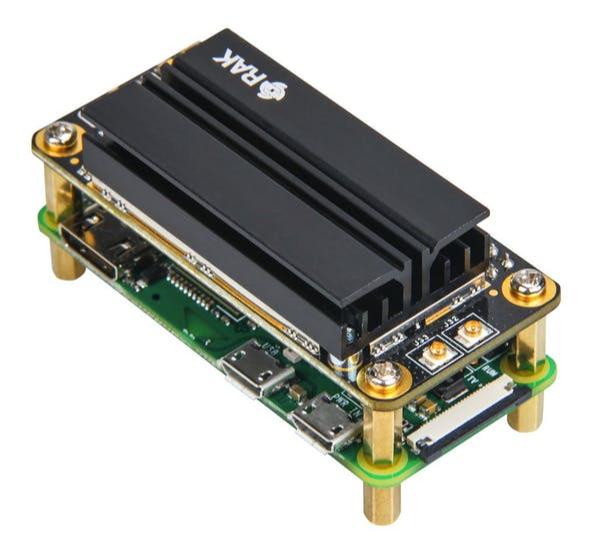

WisGate Developer D0+ is a LoRaWAN® developer gateway with GPS function. It is a device composed of the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.


This concentrator module is Class A and C compliant based on Semtech® SX1308 chip, which allows for simultaneous reception over 8 LoRa channels.


WisGate Developer D0+ is an ideal choice for prototype design, concept verification and demonstrations, development evaluation, and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set up, which makes it a good choice for both experienced and novice LoRa specialists.


Features

  • Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® Gateway;

  • Built-in Ublox MAX-7Q GPS module;

  • The Pre-installed radiator guarantees stable thermal performance

  • Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;

  • Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;

  • Power supply 5V / 2.5A (power adapter sold separately).

  • #WisGate-Developer-D0

Specifications for WisGate Developer D0+

Frequency band AS923 or AU915 or EU868 or IN865 or US915
