WisDuo LPWAN Module RAK4200

  • Configuration Interface
  • Class
  • Frequency band
  • RF connector
  • LoRaWAN version
  • Chipset
  • Sleep Power consumption
  • P2P support
  • Max Transmit power
  • ARM Cortex
  • Spread Factor

SG$ 9.28 SG$ 9.28 9.28 SGD

US$ 6.90

This combination does not exist.

Add to Cart

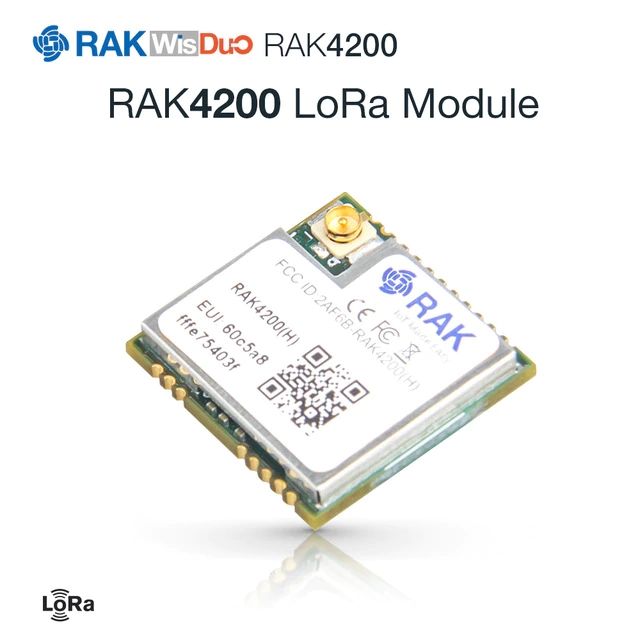

RAK4200 LoRa® Module includes an STM32L071 MCU and an SX1276 LoRa® chip.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

RAK4200 WisDuo LPWAN Module includes an STM32L071 MCU and an SX1276 LoRa chip. It has Ultra-Low Power Consumption of 9.40 uA (down to 1.08 μA @ 2.0 V) in sleep mode and high LoRa output power up to 19 dBm max in work mode.


The module complies with LoRaWAN 1.0.2 specification. It also supports LoRa P2P Point to Point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption

Features

  • LoRa module for Smart City, Smart Agriculture, Smart Industry

  • Compact Form Factor: 15 x 15.5 x 2.5 mm

  • 20 Pin Stamp Pad for PCB SMT mounting

  • I/O ports: UART/I2C/GPIO/ADC

  • Temperature range: -40 °C to +85 °C

  • Supply voltage: 2.0 ~ 3.6 V

  • Frequency range: 863–870 MHz (EU) / 902–928 MHz (US), ISM and SRD systems

  • Low-Power Wireless Systems with 7.8 kHz to 500 kHz Bandwidth

  • Ultra-Low Power Consumption of 9.40 μA (down to 1.08 μA @ 2.0 V) in sleep mode

  • Core: ARM 32-bit Cortex – M0+ with MPU

  • Up to 128 KB flash memory with ECC

  • 20 KB RAM

  • 6 KB of data EEPROM with ECC

Specifications for WisDuo LPWAN Module RAK4200

LoRaWAN
Configuration Interface USB
Uncategorized
Frequency band High frequency or Low frequency
RF connector iPEX or Pad
Class Class A, C
LoRaWAN version 1.0.2
Chipset STM32L071 + 1276
Sleep Power consumption 1.5uA
P2P support No
Max Transmit power 19dBm
ARM Cortex ARM Cortex M0+
Spread Factor SF7~SF12
