RS485 to LoRaWAN Converter

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Battery Capacity

SG$ 60.51 SG$ 60.51 60.51 SGD

US$ 45.00

This combination does not exist.

Add to Cart

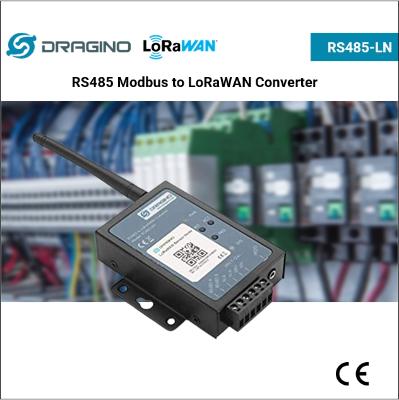

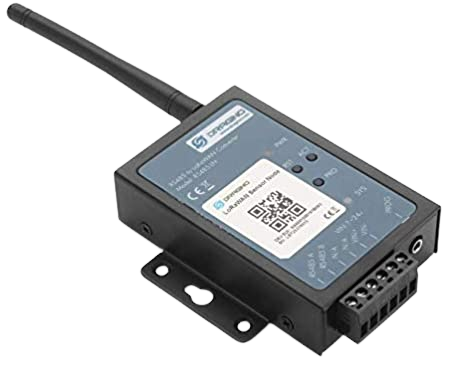

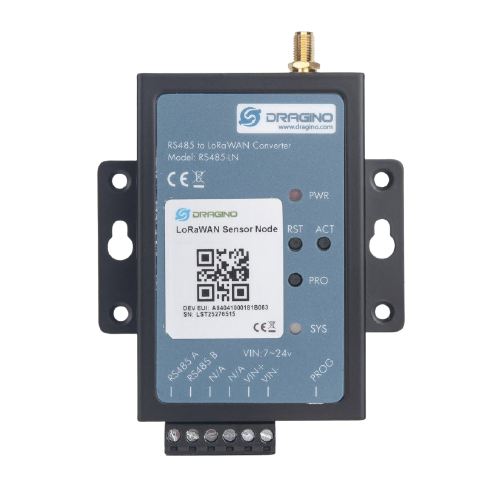

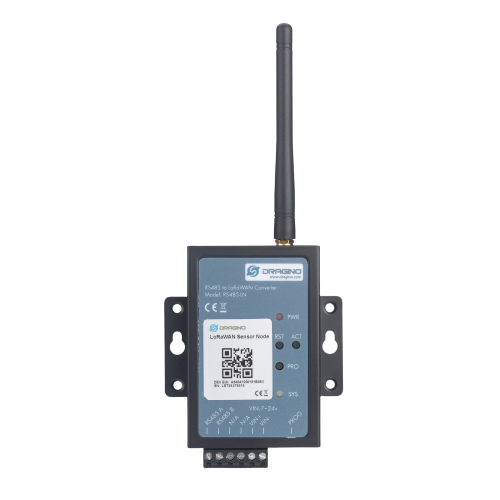

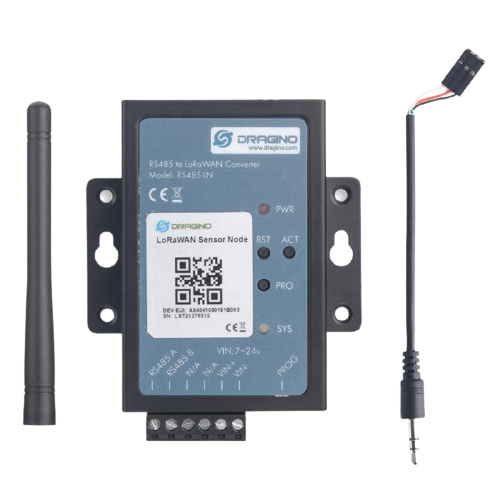

The Dragino RS485-LN is a RS485 to LoRaWAN Converter. It converts the RS485 devices into LoRaWAN wireless network which simplify the IoT installation and reduce the installation/maintaining cost.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino RS485-LN is a RS485 to LoRaWAN Converter. It converts the RS485 devices into LoRaWAN wireless network which simplify the IoT installation and reduce the installation/maintaining cost.

RS485-LN allows the user to monitor / control RS485 devices and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.

For data uplink: RS485-LN sends user-defined commands to RS485 devices and get the return from the RS485 devices. RS485-LN will process these returns according to the user-define rule to get the final payload to upload to LoRaWAN server.

For data downlink: RS485-LN runs in LoRaWAN Class C. When there downlink commands from LoRaWAN server, RS485-LN will forward the commands from LoRaWAN server to RS485 devices.

Features

  • LoRaWAN Class A & Class C protocol (default Class C)

  • Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864

  • AT Commands to change parameters

  • Remote configure parameters via LoRa Downlink

  • Firmware upgradable via program port

  • Support multiply RS485 devices by flexible rules

  • Support modbus protocol devices

  • Uplink on periodically or polling

  • Downlink to send RS485 commands

Applications

Specifications for RS485 to LoRaWAN Converter

LoRaWAN
LoRa transceiver SX1276
Uncategorized
Cable length None
Frequency band AS923
OpenCPU No
Sensor RS485
Waterproof IP30
Class Class C
Power type Chargeable Battery
LoRaWAN version 1.0.3
Battery Capacity 1000mAh Li-ion
