LoRaWAN RS485/UART Converter -- WaterProof Battery Powered

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Battery Capacity

SG$ 60.51 SG$ 60.51 60.51 SGD

US$ 45.00

This combination does not exist.

Add to Cart

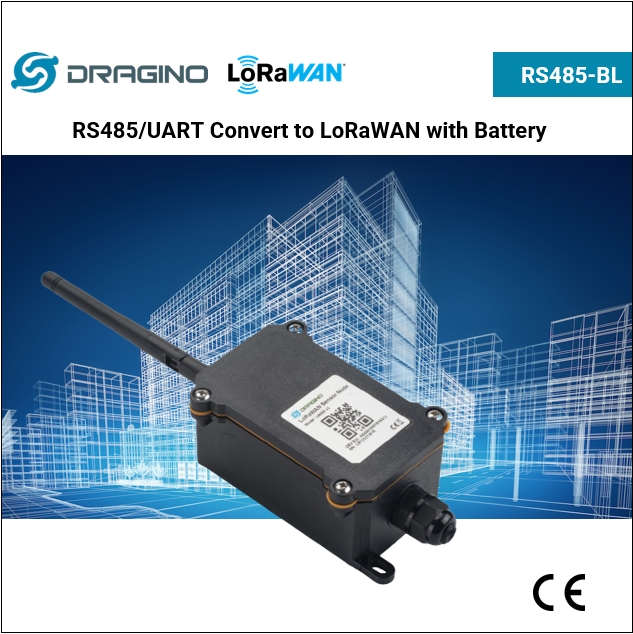

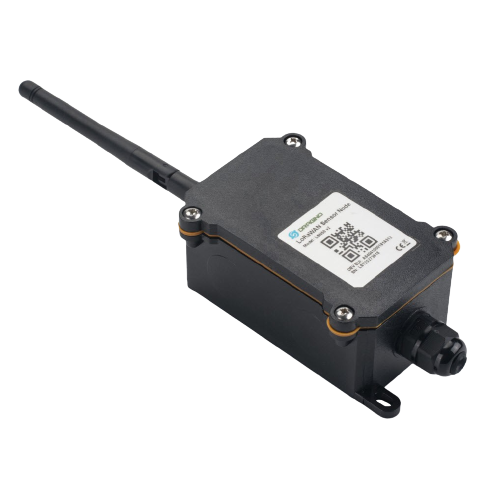

The Dragino RS485-BL is a RS485 / UART to LoRaWAN Converter for Internet of Things solutions.User can connect RS485 or UART sensor to RS485-BL converter, and configure RS485-BL to periodically read sensor data and upload via LoRaWAN network to IoT server.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino RS485-BL is a RS485 / UART to LoRaWAN Converter for Internet of Things solutions.User can connect RS485 or UART sensor to RS485-BL converter, and configure RS485-BL to periodically read sensor data and upload via LoRaWAN network to IoT server.

RS485-BL can interface to RS485 sensor , 3.3v/5v UART sensor or interrupt sensor. RS485-BL provides a 3.3v output and a 5v output to power external sensors. Both output voltage are controllable to minimize the total system power consumption.

RS485-BL is IP67 waterproof and powered by 8500mAh Li-SOCI2 battery, It is designed for long term use for several years.

RS485-BL runs standard LoRaWAN 1.0.3 in Class A. It can reach long transfer range and easy to intergrate with LoRaWAN compatible gateway and IoT server.

Each RS485-BL pre-loads with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.

Features

  • LoRaWAN v1.0.3 Class A

  • Ultra low power consumption

  • RS485 interface for RS485/ Modbus sensor

  • 3.3 / 5v UART interface for sensor

  • High capacity 8500 mAh Li-SOCI2 battery

  • Bands: CN470/EU433/KR920/US915

  • EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Uplink on periodically or Interrupt

  • Downlink to change configure

Applications

Specifications for LoRaWAN RS485/UART Converter -- WaterProof Battery Powered

LoRaWAN
LoRa transceiver SX1276
Uncategorized
Cable length None
Frequency band AS923
OpenCPU No
Sensor RS485/UART
Waterproof IP67
Class Class A
Power type Built-in Li-SOCL2 battery
LoRaWAN version 1.0.3
Battery Capacity 8500mAh
