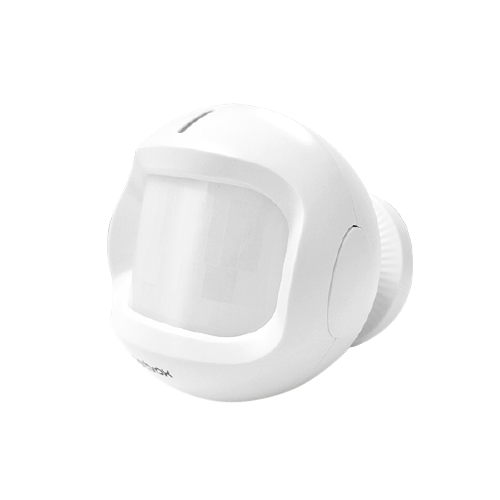

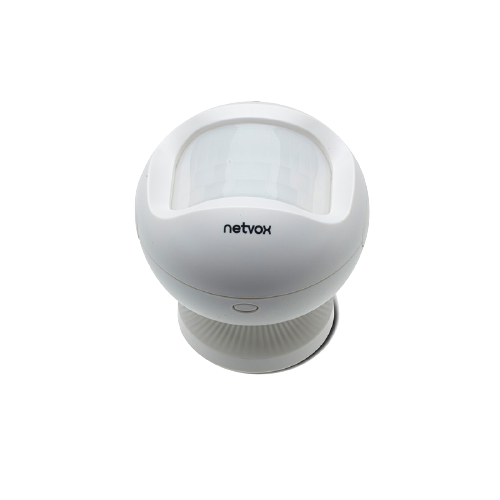

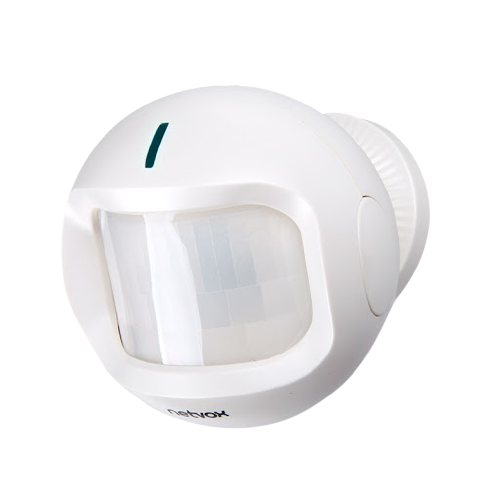

RB11E Wireless Occupancy/Light/Temperature Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 167.11 SG$ 167.11 167.11 SGD

US$ 127.00

This combination does not exist.

Add to Cart

RB11E is a Wireless Occupancy/Light/Temperature Sensor for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. It combines occupancy ,temperature, tamper switch and light sensors that suitable for detecting human movement indoors, illuminance and temperature.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

RB11E is a long distance LoRaWAN™ PIR-Based Device (Class A). RB11E combines motion detection, temperature, and illumination sensors. With real-time motion detection, RB11E senses the movement of people, animal or other objects and if a person or an object moves in the monitoring area, RB11E will detect the infrared signal and report the status information to the gateway. Users can execute different instructions or scenes according to different configurations. RB11E also reports temperature and light level. It is mainly used for indoor detection.

Features

  • Wireless Range of 10km
  • LoRaWAN Class A compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Improved Interference Immunity
  • Improved Power Management for Longer Battery Life
  • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
  • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
  • Over-The-Air Updates (Future)
  • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
  • And Set Alerts Via SMS Text And Email (Optional)
  • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
  • Uses SX1276 Wireless Communication Module

Specifications for RB11E Wireless Occupancy/Light/Temperature Sensor

Frequency band AS923 or AU915 or EU868 or US915
Waterproof IP30
Class Class A
Power type 2pcs Of 3.6V ER14505 AA
Sleep Power consumption 110uA
Rx Sensitivity -136dBm
Transmit Power 16dBm
Chipset SX1276
Sensors PIR+Temperature+Light
