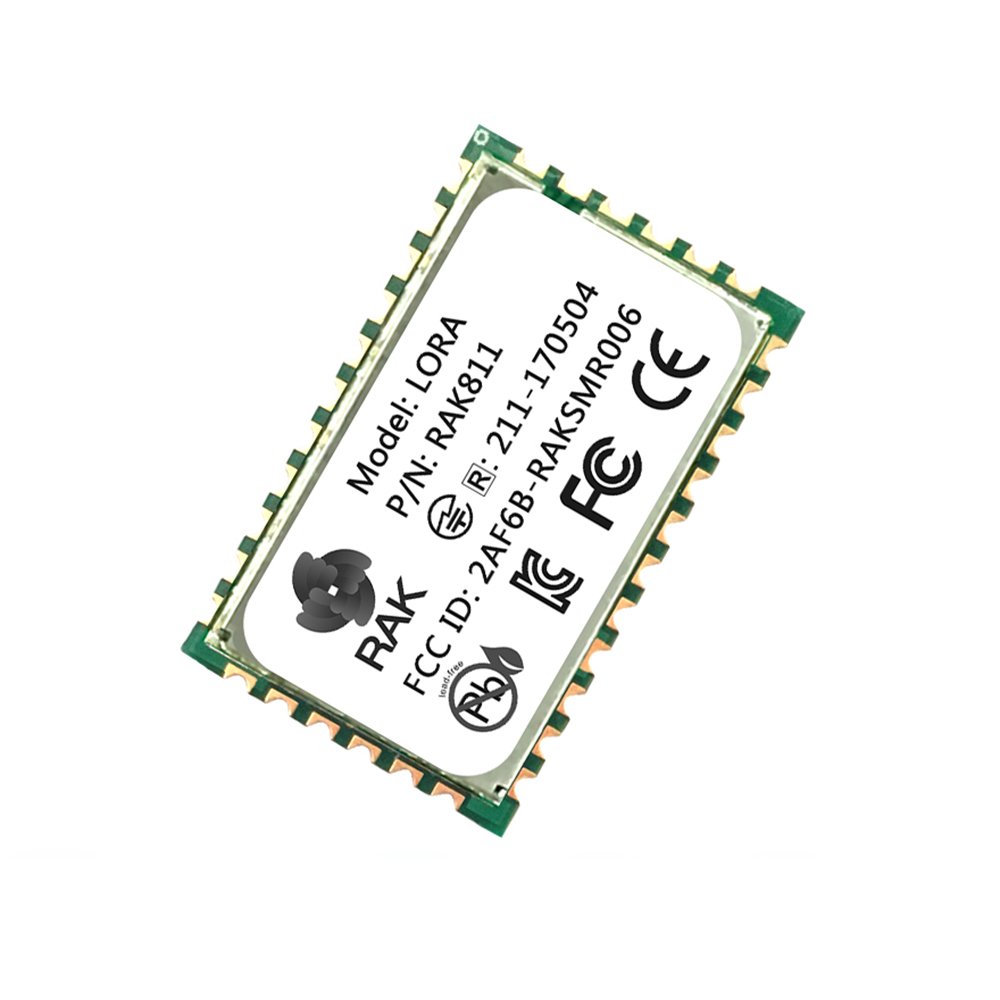

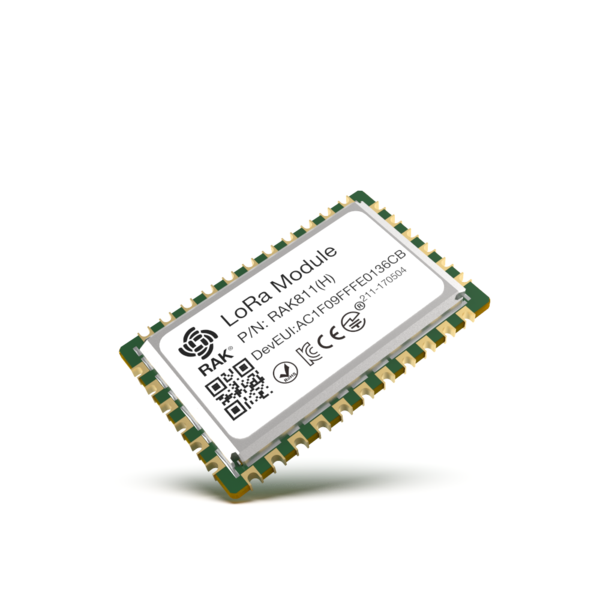

RAK811 LoRaWAN Module

  • Frequency band

SG$ 14.79 SG$ 14.79 14.790000000000001 SGD

US$ 11.00

This combination does not exist.

Add to Cart

With Semtech® SX1276 at its core, the RAK811(WisDuo LPWAN Module) takes advantage of all LoRa® features. Long-range, low power consumption is at its core.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


FIND OUT MORE

Overview

With Semtech® SX1276 at its core, the RAK811(WisDuo LPWAN Module) takes advantage of all LoRa® features. Long-range, low power consumption is at its core.


Its setup is easy and straightforward. The firmware fully supports the LoRaWAN® 1.0.2 stack. The node can work in a number of modes, with different data rates, and read data from the attached sensors. This is all configurable via AT commands.

Features

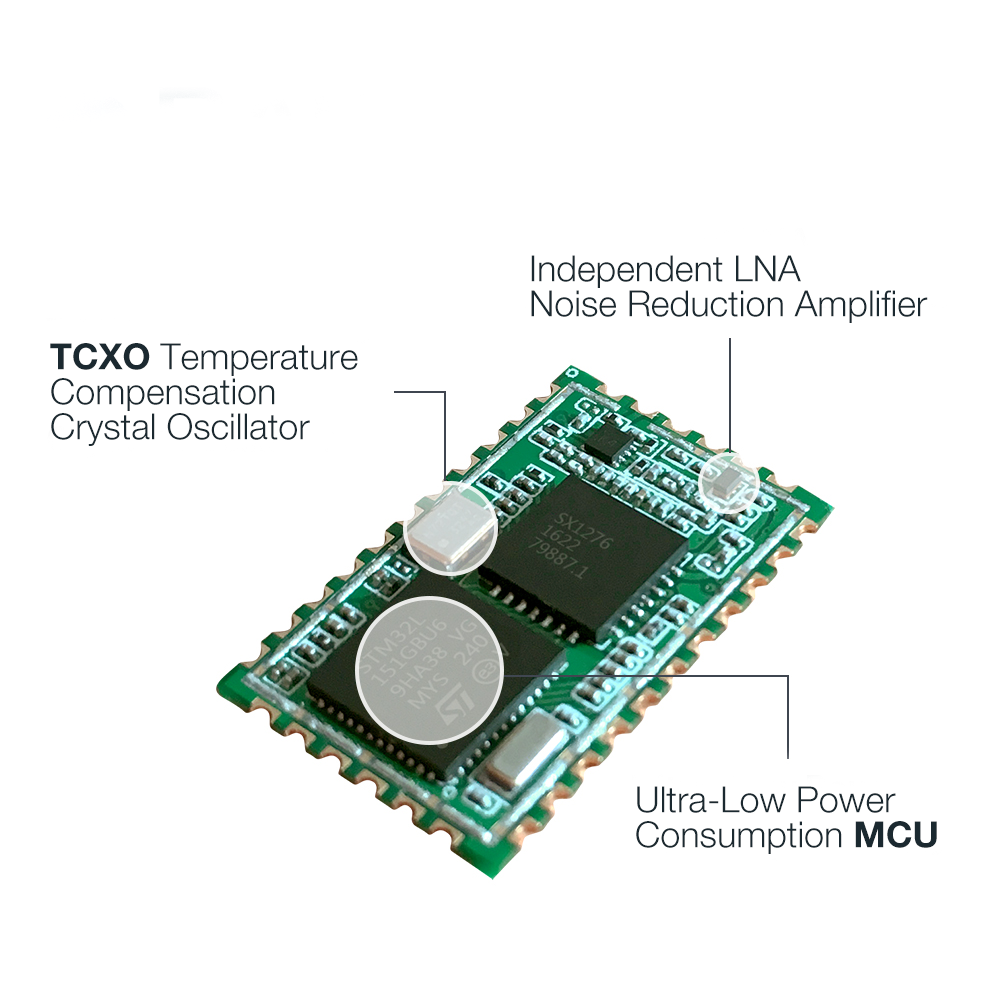

  • Based on Semtech SX1276

  • Full LoRaWAN 1.0.2 stack support

  • Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920, and AS923

  • Output power: 5 to 20dBm adjustable

  • High sensitivity: down to -148dBm

  • Easy to use AT Command Set via UART interface with configurable baud rate.

  • Theoretical max range of 2km in Urban and 15km in open areas

  • Operating temperature: -30°C ~ 85°C (industrial grade)

  • Storage temperature: -40°C ~ 85°C (non-condensing)

Specifications for RAK811 LoRaWAN Module

Frequency band AS923 or CN470 or EU433 or EU868 or KR920 or US915
