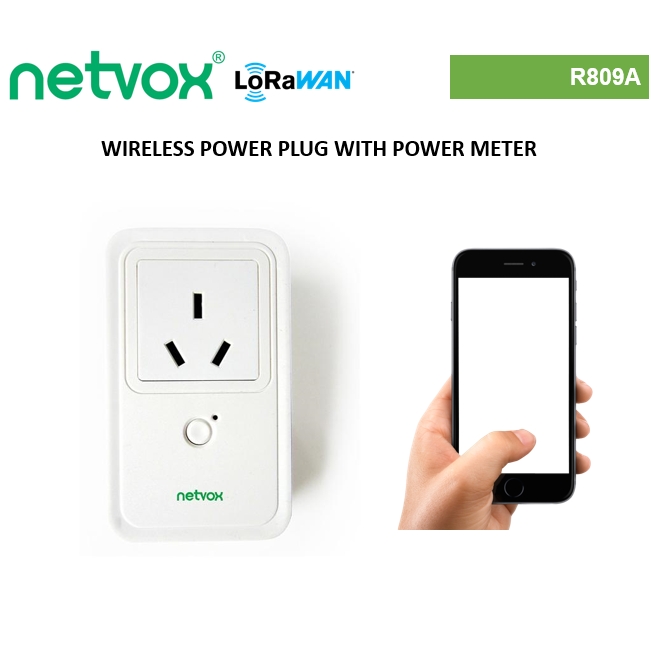

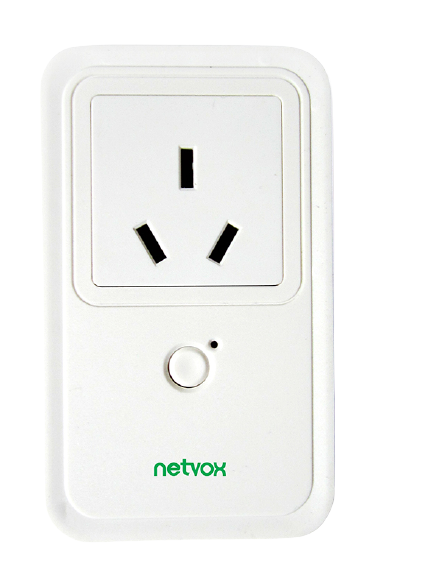

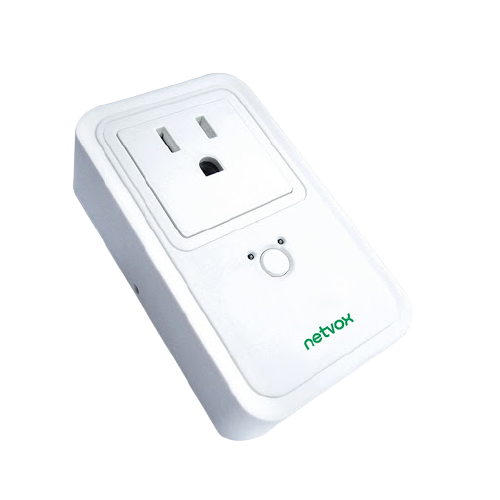

R809A Wireless Plug-and-Play Power Outlet with Consumption Monitoring

  • Configuration Interface
  • Power Outage Detection
  • Power Adapter
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • with Power meter
  • Transmit Power
  • Chipset

SG$ 219.74 SG$ 219.74 219.74 SGD

US$ 167.00

This combination does not exist.

Add to Cart

R809A is a Wireless Plug-and-Play Power Outlet with Consumption Monitoring for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276 which can realize wireless remote control. R809A has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

The R809A is a wireless power plug converter for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276, which can realize wireless remote control. R809A has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control.


The wireless communication is compatible with LoRaWAN™ Protocol (ClassC).

Features

  • Wireless Range of 10km
  • LoRaWAN Class A compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Improved Interference Immunity
  • Improved Power Management for Longer Battery Life
  • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
  • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
  • Over-The-Air Updates (Future)
  • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
  • And Set Alerts Via SMS Text And Email (Optional)
  • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
  • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

Specifications for R809A Wireless Plug-and-Play Power Outlet with Consumption Monitoring

LoRaWAN
Configuration Interface UART
Power Outage Detection No
Uncategorized
Power Adapter EU or UK or US or AU
Frequency band AS923 or AU915 or EU868 or US915
Waterproof IP30
Class Class C
Power type 220V
Sleep Power consumption 15mA
Rx Sensitivity -136dBm
with Power meter Yes
Transmit Power 19dBm±1dBm
Chipset SX1276
