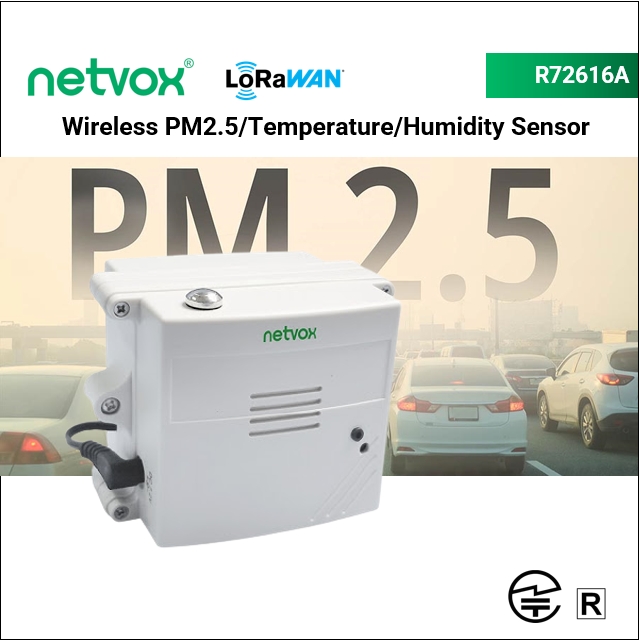

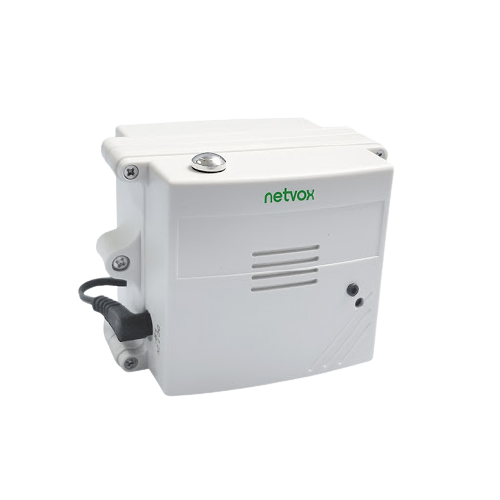

R72616A Wireless PM2.5/Temperature/Humidity Sensor

  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 460.53 SG$ 460.53 460.53000000000003 SGD

US$ 350.00

This combination does not exist.

Add to Cart

Netvox R72616A is mainly used to measure PM2.5, ambient temperature and humidity in an indoor environment, communicating over the LoRaWAN™ Protocol (Class A). R72616A carries a PM2.5 sensor that can be used to obtain the concentration of suspended particles per unit volume in the air. R72616A is LoRaWAN™ Certified.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

Netvox R72616A is mainly used to measure PM2.5, ambient temperature and humidity in an indoor environment, communicating over the LoRaWAN™ Protocol (Class A). R72616A carries a PM2.5 sensor that can be used to obtain the concentration of suspended particles per unit volume in the air. R72616A is LoRaWAN™ Certified.


    Features

    • Wireless Range of 10km

    • LoRaWAN Class A compatible

    • Frequency Hopping Spread Spectrum (FHSS)

    • Improved Interference Immunity

    • Improved Power Management for Longer Battery Life

    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)

    • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html

    • Over-The-Air Updates (Future)

    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data

    • And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

    • Uses SX1276 Wireless Communication Module

              Specifications for R72616A Wireless PM2.5/Temperature/Humidity Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Class Class A
              Power type 8 Sections Of ER14505
              Sleep Power consumption 250uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0~500 μg/m3
              TX Power 16dBm
              Chipset SX1276
              Sensors PM2.5/Temperature/Humidity
