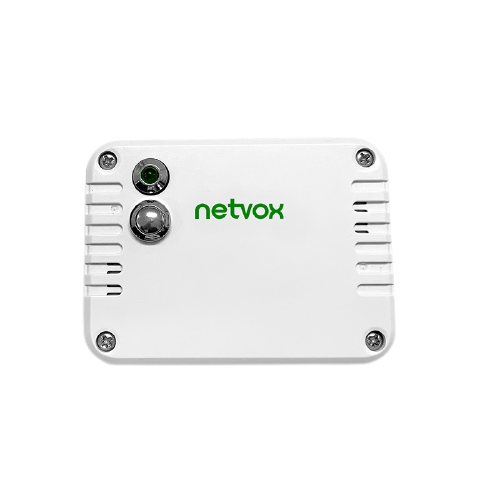

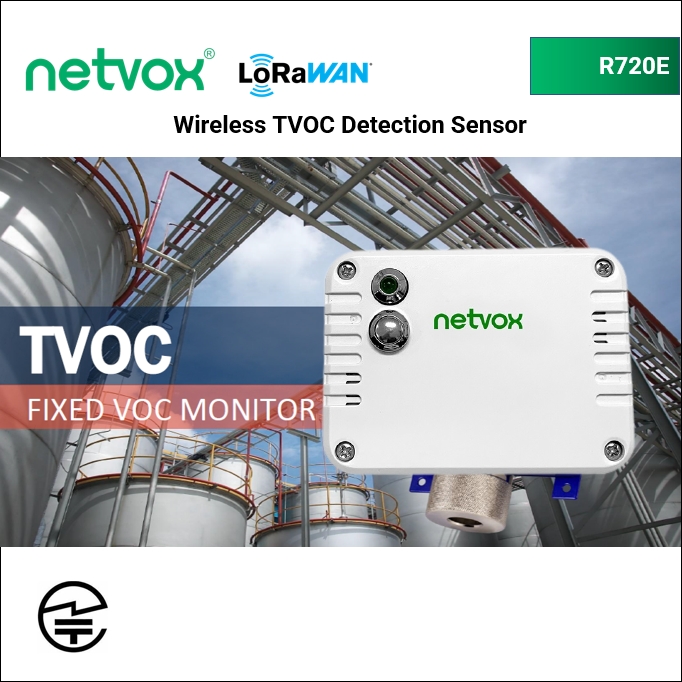

R720E Wireless TVOC Detection Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Sensors

SG$ 250.11 SG$ 250.11 250.11 SGD

US$ 185.00

This combination does not exist.

Add to Cart

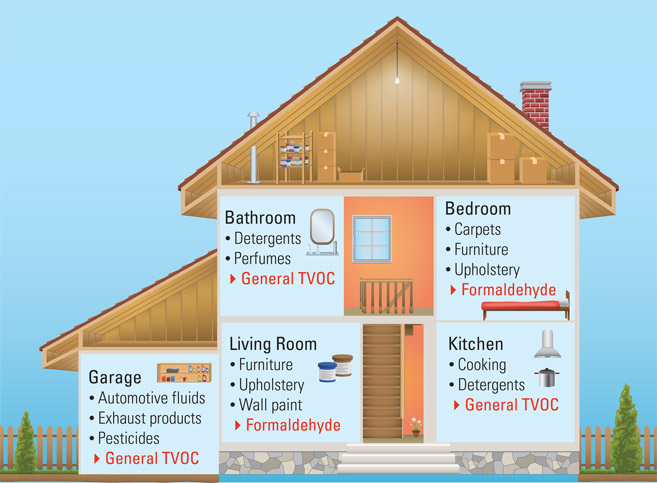

R720E is a wireless communication device that detects temperature, humility and TVOC. TVOC refers to all organic gaseous substances in a space, and generally refers to the indoor volatile organic substances. TVOC is also the much serious one of the three types of pollution affecting indoor air quality. R720E can detect the concentration value of TVOC.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that come with an IP 65/67 housing, and most of them are battery-powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R720E is a wireless communication device that detects temperature, humidity and TVOC. TVOC refers to all organic gaseous substances in a space, and generally refers to the indoor volatile organic substances. TVOC is also the most serious one of the three types of pollution affecting indoor air quality. R720E can detect the concentration value of TVOC.

    Features

    • Apply SX1276 wireless communication module
    • 2 ER14505 battery (3.6V/section) in parallel power supply
    • TVOC concentration detection
    • Temperature and humidity detection
    • LoRaWANTM Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data, and set alerts via SMS text and email (optional)
    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • Improved power management for longer battery life

              Specifications for R720E Wireless TVOC Detection Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 X 3.6V ER14505 AA
              Sleep Power consumption 28uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0 ppb - 60000 ppb
              TX Power 16dBm
              Chipset SX1276
              Certification TELEC
              Sensors TVOC
