R718PA22 Wireless Bottom-Mounted Ultrasonic Liquid Level Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 644.74 SG$ 644.74 644.74 SGD

US$ 490.00

This combination does not exist.

Add to Cart

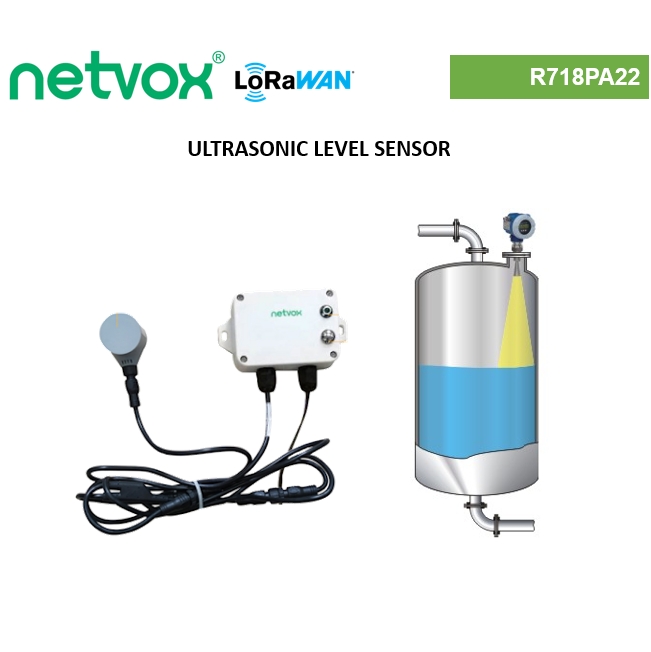

The R718PA22 is a wireless communication device that measures the liquid level with an ultrasonic liquid level sensor. Ultrasonic liquid level sensor installed at the bottom of the container, it may measure water, gasoline, diesel and small, medium, large capacity storage tanks (metal, plastic, glass material).


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

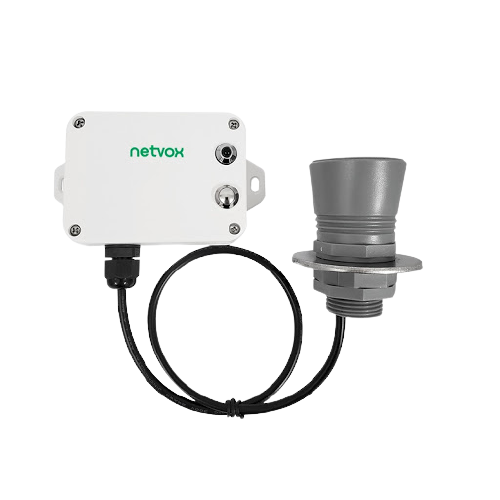

The R718PA22 is a wireless communication device that measures the liquid level with an ultrasonic liquid level sensor. Ultrasonic liquid level sensor installed at the bottom of the container, it may measure water, gasoline, diesel and small, medium, large capacity storage tanks (metal, plastic, glass material). R718PA22 main unit and the ultrasonic liquid level sensor communicate via RS485 interface, and the detected data is sent to the other equipment shown which employs compliance LoraWANTM wireless communication protocol standards.


    Features

    • Adopt SX1276 wireless communication module
    • DC12 adapter power supply
    • Equipment body protection grade IP65/IP67 (optional) , ultrasonic probe part
    •    protection grade IP67
    • RS485 communication
    • The base is equipped with a magnet that can be attached to the iron object.
    • Compatible with LoRaWANTM  Class A
    • Frequency hopping spread spectrum technology
    • Configuration parameters can be configured through third-party software platforms
    • Data can be read and alerts can be set via SMS text and email (optional)
    • Applicable to third-party platforms: Actility / ThingPark / TTN / MyDevices /Cayenne

              Specifications for R718PA22 Wireless Bottom-Mounted Ultrasonic Liquid Level Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type DC12V/1A
              Sleep Power consumption 60mA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0.12-3m
              TX Power 16dBm
              Chipset SX1276
              Sensors Ultrasonic
