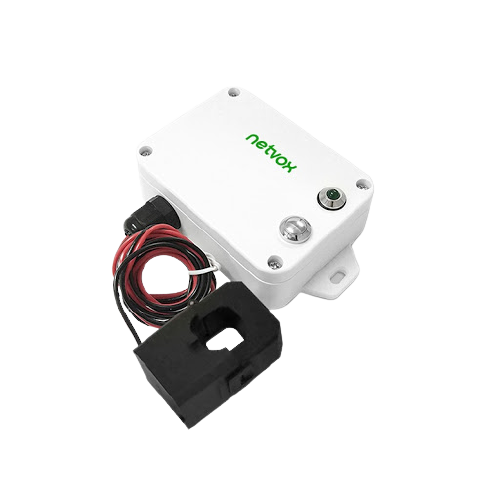

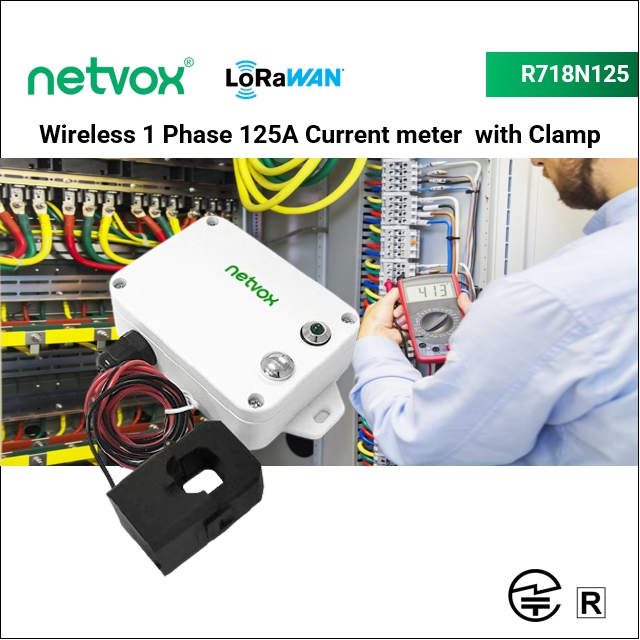

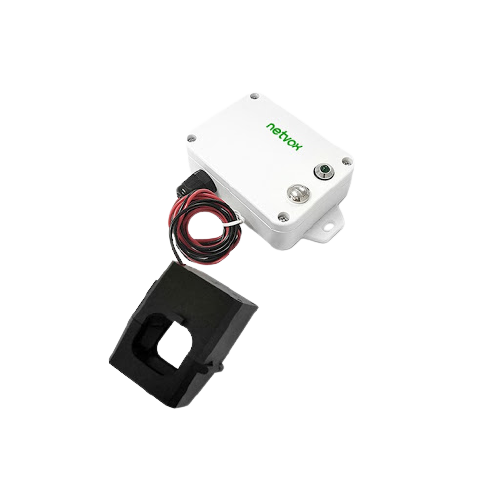

R718N125 Wireless Single-Phase Current Meter with 1 x 250A Clamp-On CT
The NETVOX R718N125 LoRaWAN wireless single-phase current detector is used to detect single-phase electrical input current.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The NETVOX R718N125 LoRaWAN wireless single-phase current detector is used to detect single-phase electrical input current. The R718N125 device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol to display the collected data in the gateway.
The R718N125 device is powered by the battery and obtains the load AC current value through the current transformer.
The R718N125 device adopts the split-core current transformer, which can be conveniently connected to the measuring device.
The communication is fully compatible with LoRaWAN™ Protocol (Class A).
- Wireless Range of 10 Km
- LoRaWAN™ Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life*2:⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Specifications for R718N125 Wireless Single-Phase Current Meter with 1 x 250A Clamp-On CT
|Frequency band||AS923 or AU915 or EU868 or US915|
|Power type||2 X 3.6V ER14505 AA|
|Sleep Power consumption||25uA|
|Sensor Measurement Range||1A~250A|
