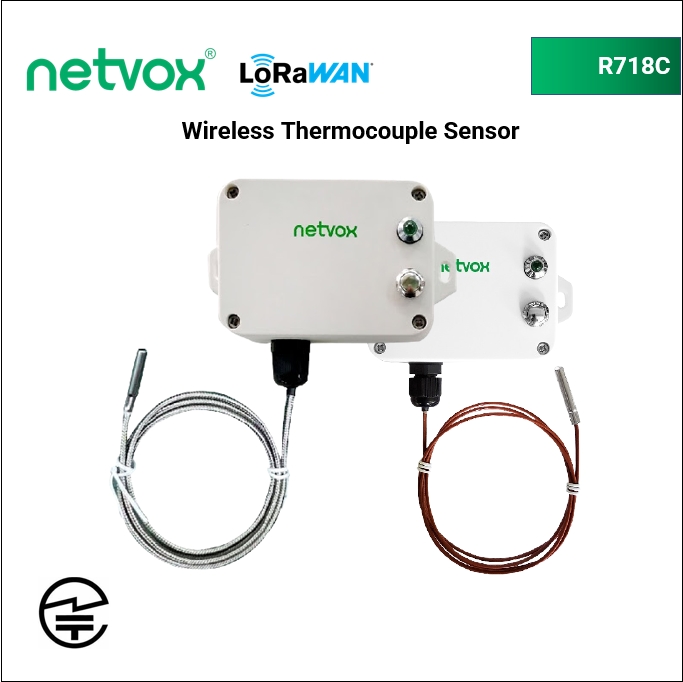

R718C Wireless Thermocouple Sensor

  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Cable length

SG$ 217.11 SG$ 217.11 217.11 SGD

US$ 165.00

This combination does not exist.

Add to Cart

R718C series can be connected according to requirements: Type T thermocouple (R718CT) ; Type K thermocouple (R718CK), and it will display the collected data in the gateway


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

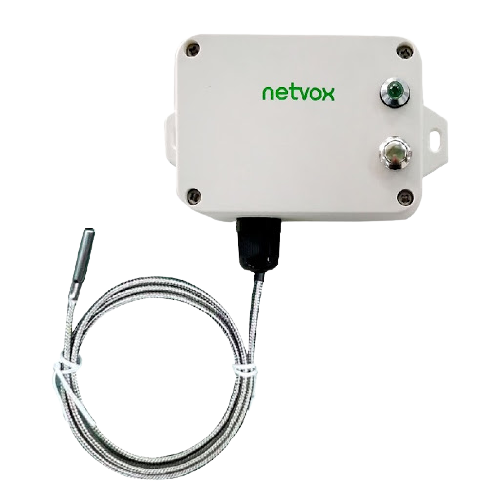

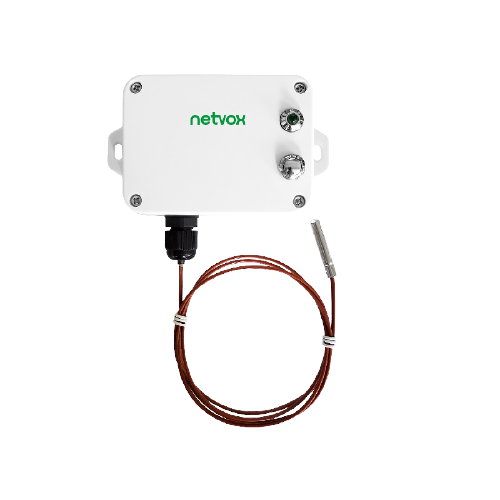

R718CX can be connected according to requirements: type T (R718CT), type K thermocouple (R718CK), type N thermocouple (R718CN), type R thermocouple (R718CR) and display the collected data in the gateway. The communication is fully compatible with LoRaWAN protocol (class A).

              Features

              • LoRaWAN™ Class A compatible
              • Frequency Hopping Spread Spectrum (FHSS)
              • Improved Interference Immunity
              • Improved Power Management For Longer Battery Life
              • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
              • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
              • Over-The-Air Updates
              • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
              • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
              • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

                        Specifications for R718C Wireless Thermocouple Sensor

                        Sensor Thermocouple Type K or Thermocouple Type T
                        Sensor Measurement Range -40~125℃ +-0.5℃ or -40~375℃ +-1.5℃
                        Waterproof IP67
                        Class Class A
                        Frequency band AS923
                        Power type 2 x ER14505
                        Sleep Power consumption 34uA
                        Rx Sensitivity -136dBm
                        TX Power 16dBm
                        Chipset SX1276
                        Certification TELEC
                        Cable length 1m
