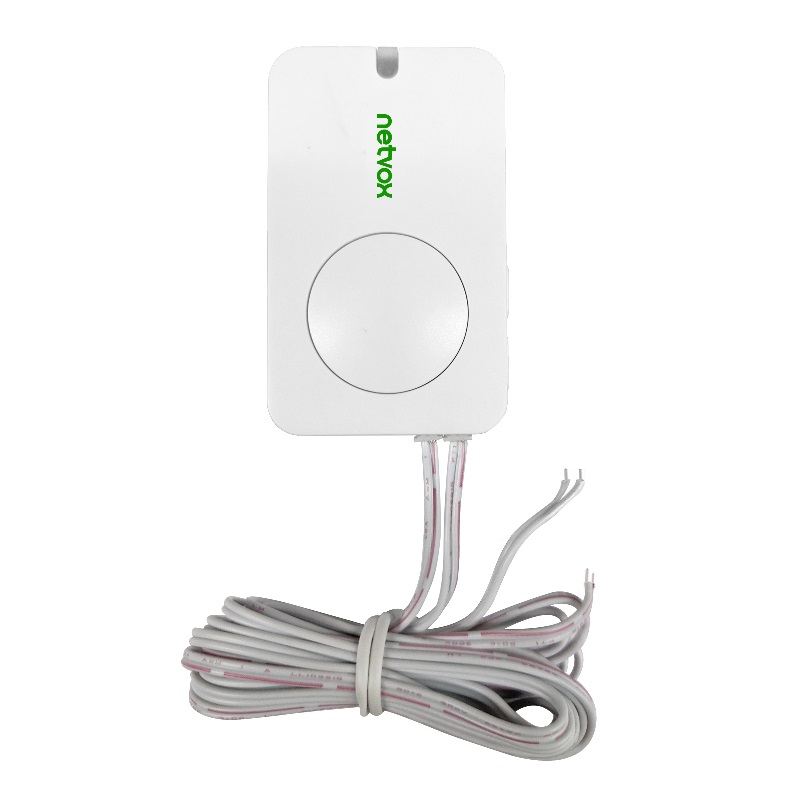

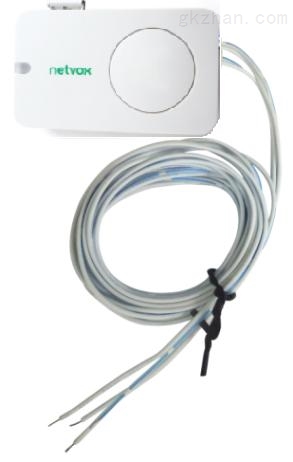

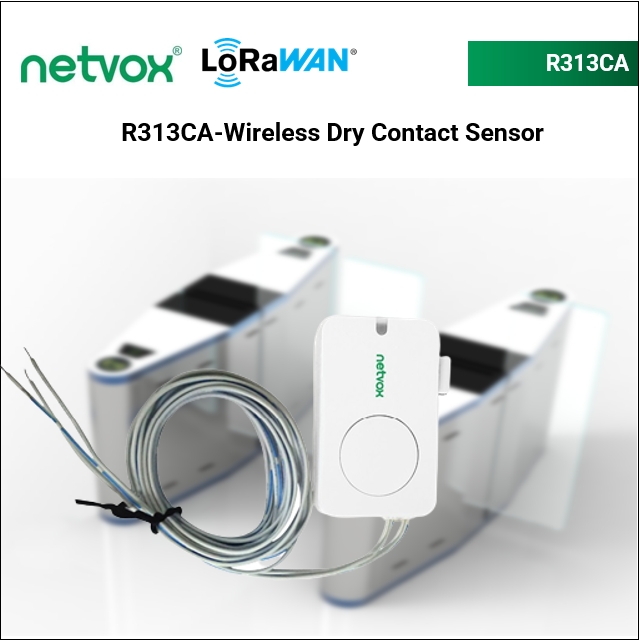

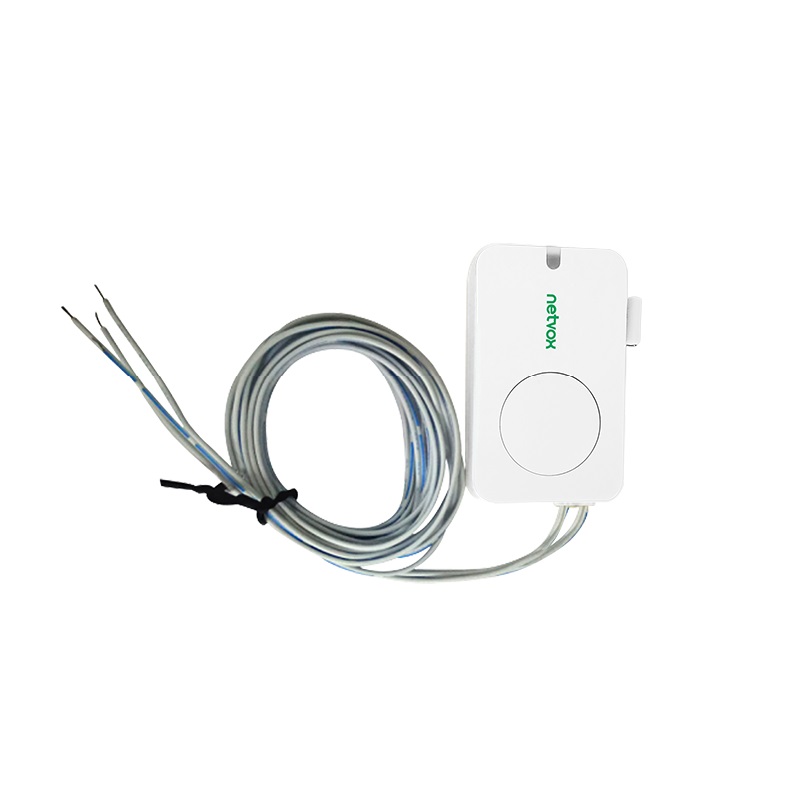

R313CA-Wireless Dry Contact Sensor

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 139.43 SG$ 139.43 139.43 SGD

US$ 100.00

This combination does not exist.

Add to Cart

R313CA is connected with two external dry contacts for customers to access the device under test, such as switches, buttons, sensors, relays, reed switches, etc. R313CA can detect the electrical level change of the device under test. At the same time, it can realize wireless alarm and other functions through the built-in wireless module


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The R313B uses a photosensor. The output current of the photosensor changes in the same direction as the ambient light intensity changes. By detecting the change in the input level value, the corresponding illumination intensity is detected.

    Features

    •LoRaWANTM Class A compatible
    •2*3.0V CR2450 button battery power supply
    •Dry contact detection
    •Apply SX1276 wireless communication module
    •Frequency Hopping Spread Spectrum (FHSS)
    •Configuration parameters can be configured through a third-party software platform
    •Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
    •Low power consumption and long battery life Improved

              Specifications for R313CA-Wireless Dry Contact Sensor

              LoRaWAN
              Configuration Interface UART
              Uncategorized
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 12uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Dry Contact
