R312A Wireless Emergency Button

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 111.84 SG$ 111.84 111.84 SGD

US$ 85.00

This combination does not exist.

Add to Cart

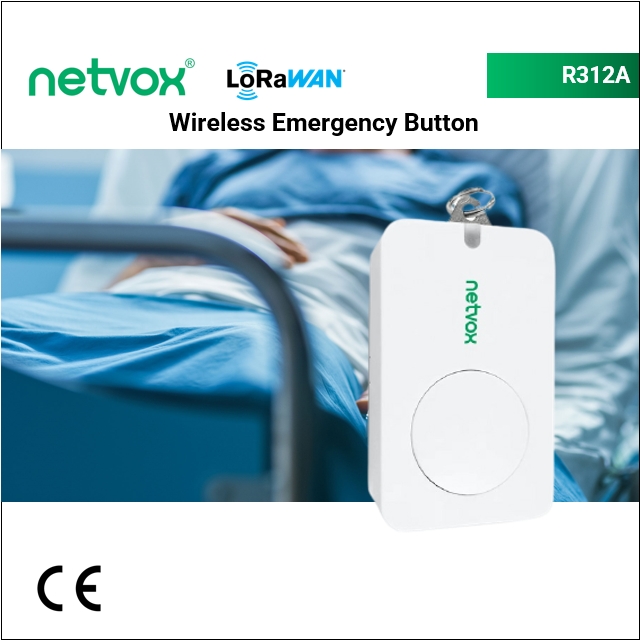

The R312A is an emergency button switch device that detects the closing or opening signal of the emergency button switch and sends an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

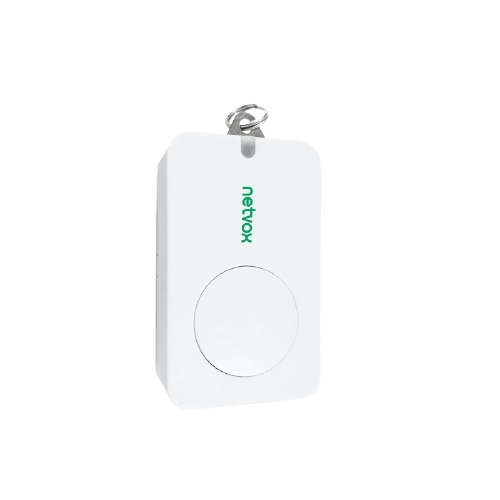

The R312A is an emergency button switch device that detects the closing or opening signal of the emergency button switch and sends an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.


    Features

    • LoRaWAN™ Class A compatible

    • 2*3.0V CR2450 button battery power supply

    • Emergency button status detection

    • Comes with key ring for easy fixing and carrying

    • Apply SX1276 wireless communication module

    • Frequency Hopping Spread Spectrum (FHSS)

    • Configuration parameters can be configured through a third-party software platform

    • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne

    • Low power consumption and long battery life Improved


              Specifications for R312A Wireless Emergency Button

              LoRaWAN
              Configuration Interface UART
              Uncategorized
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 13uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Accelarometer
