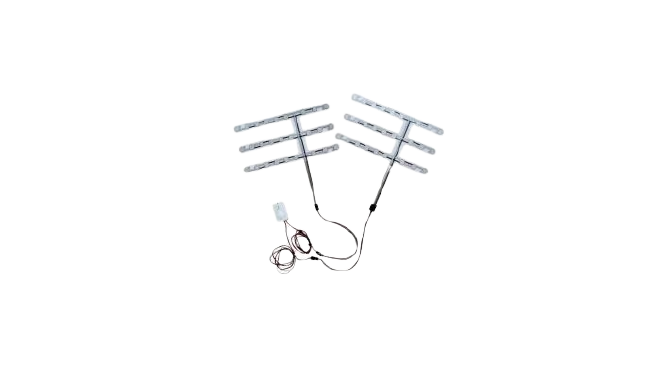

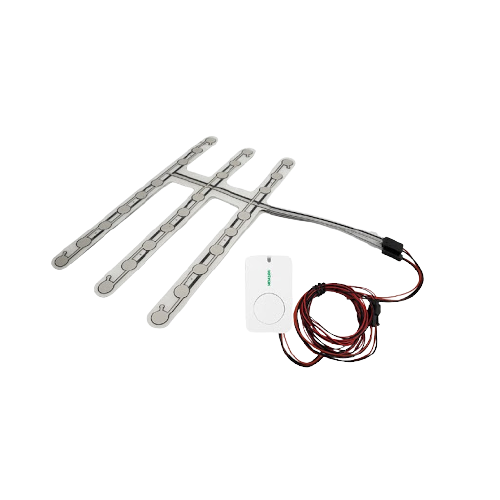

R311WA Wireless Seat Occupy sensor

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 134.33 SG$ 134.33 134.33 SGD

US$ 100.00

This combination does not exist.

Add to Cart

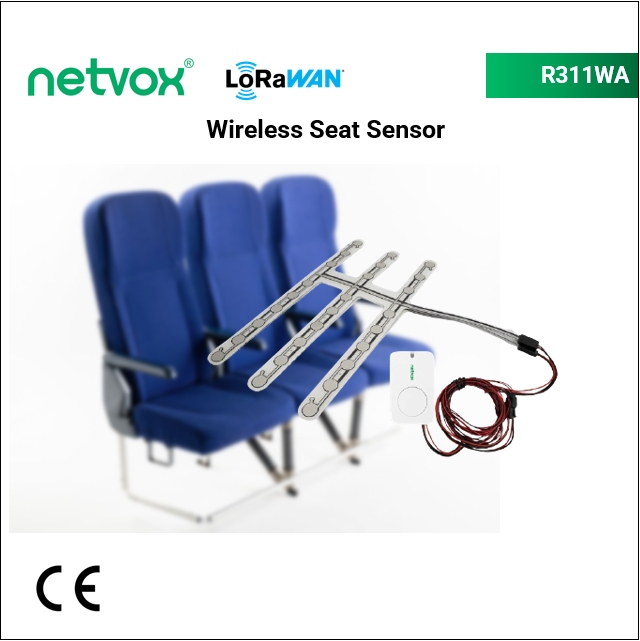

The NETVOX wireless seat sensor (two way) R311WA is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R311WA will send a message to the gateway. When detecting no one on a sensor seat, it will send an normal status message back to the gateway .


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The NETVOX wireless seat sensor (two way) R311W A is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R311WA will send a message to the gateway. When detecting no one on a sensor seat, it will send an normal status message back to the gateway .

    Features

    • 2 section 3.0V CR2450 button batteries in parallel

    • Adopt SX1276 wireless communication module

    • Two-way seat sensor

    • Compatible with LoRaWAN TM Class A

    • Frequency-hopping spread spectrum technology

    • Configuration parameters can be configured through a third-party software

    •    platforms, data can be read and alerts can be sent via SMS text and email (optional)

    • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne

    • Low power consumption and long battery life

    • Note*: Battery life is determined by the sensor reporting frequency and other variables.

    • Please refer to http://www.netvox.com.tw/electric/electric_calc.html

    • On this website, users can find various types of batteries in different configurations. life

              Specifications for R311WA Wireless Seat Occupy sensor

              LoRaWAN
              Configuration Interface UART
              Uncategorized
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 12uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Occupancy
