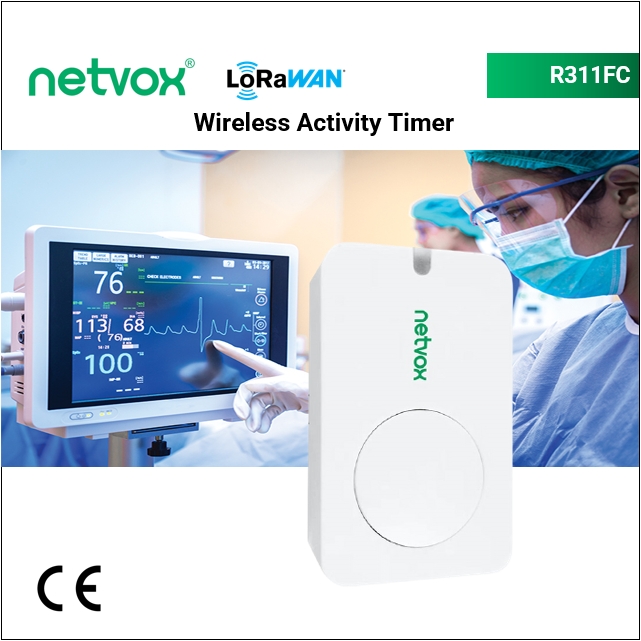

R311FC Wireless Activity Timer

  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 111.84 SG$ 111.84 111.84 SGD

US$ 85.00

This combination does not exist.

Add to Cart

The device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value). Apply SX1276 wireless communication module.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


Do something

Overview

The device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value). Apply SX1276 wireless communication module..

    Features

    • Wireless range of 10 km *1

    • LoRaWAN™ Class A compatible

    • Frequency Hopping Spread Spectrum (FHSS)

    • Improved interference immunity

    • Improved power management for longer battery life

    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)

    • Battery Life*2:

    • ⁻ 5 years

    •  (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm,   LoRa spreading factor SF = 10)


    • Over-the-air updates (future)

    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

    *1. Actual range may vary depending on environment.

    *2. Battery life is determined by sensor reporting frequency and other variables


              Specifications for R311FC Wireless Activity Timer

              Frequency band AS923 or AU915 or EU868 or US915
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 41uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Accelarometer
