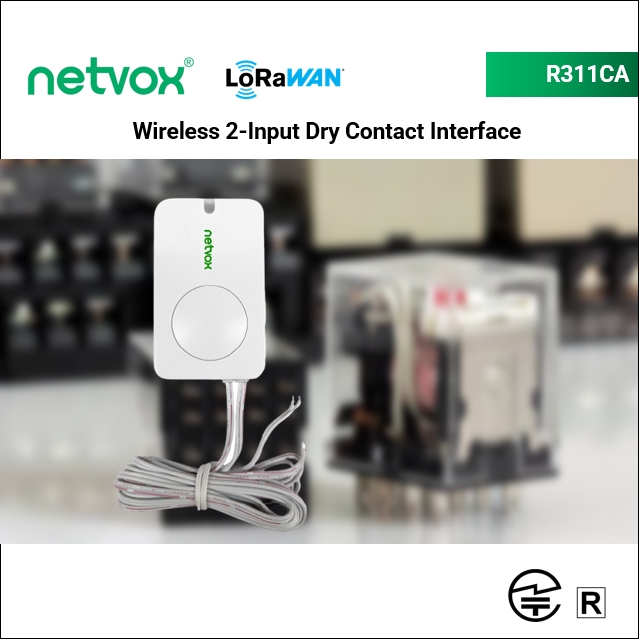

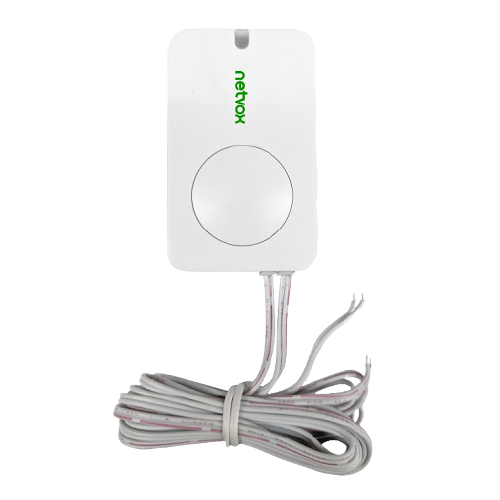

R311CA Wireless 2-Input Dry Contact Interface

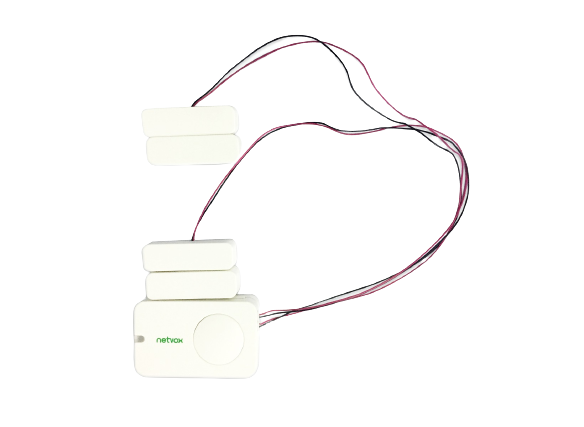

The R311CA device has a built-in reed switch sensor, and can be connected to a certain number of reed switches through external expansion. It can be used for door and window switch status detection.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The R311CA device has a built-in reed switch sensor, and can be connected to a certain number of reed switches through external expansion. It can be used for door and window switch status detection. It can realize wireless alarm and other functions through built-in wireless module, and is compatible with LoRaWAN Protocol. It can be easily networked with other related devices. The R311CA is durable and ensures optimum use and is a low power consumption device. Due to their small size, they can be installed anywhere, they are wireless, so they take up very little space.
- Wireless Range Of 10 Km
- LoRaWAN™ Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life*2:⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Specifications for R311CA Wireless 2-Input Dry Contact Interface
|Frequency band||AS923 or AU915 or KR920 or US915|
|Sensor||2 x Input Dry Contact|
|Power type||2 x CR2450|
|Sleep Power consumption||22uA|
