R0809A01 Wireless Plug-and-Play Power Outlet with Consumption Monitoring and Power Outage Detection


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox is a Taiwan-based original equipment manufacturer and leader in wireless IoT and sensor network solutions. Since 2005, Netvox has designed and manufactured products based around IoT and is in a leading position as an OEM partner for global companies including Foxconn, General Electric, Eaton, Honeywell, and Leviton.


Do something

Overview

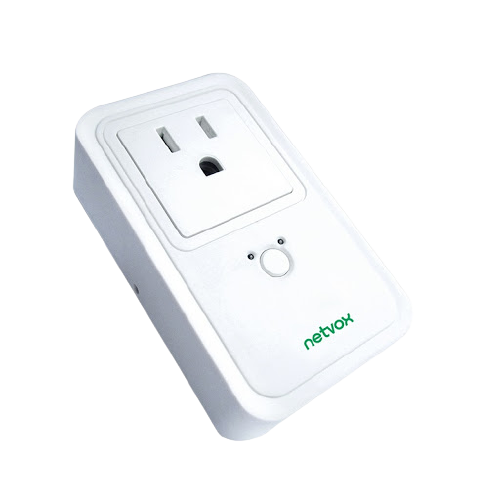

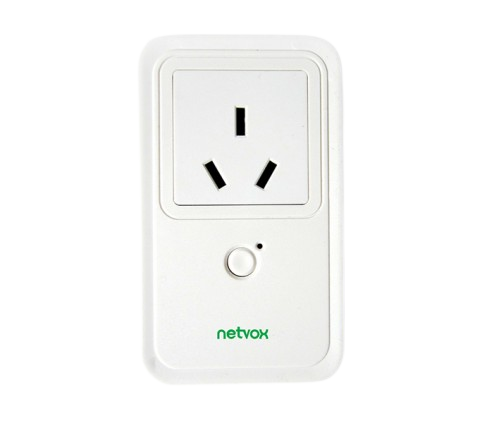

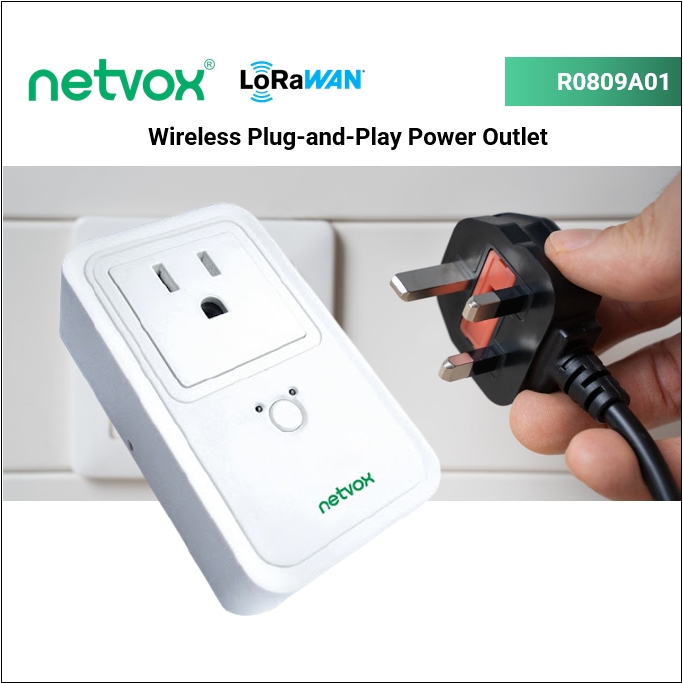

The R809A01 is a wireless power plug converter for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276, which can realize wireless remote control. R809A01 has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control. R809A01 supports the wireless module to send a power off alarm signal to the gateway after power off

          Features

        • Wireless range of 10km *1
        • Frequency Hopping Spread Spectrum (FHSS)
        • LoRaWAN™ Class C compatible
        • Improved interference immunity
        • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
        • Over-the-air updates (future)
        • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

        •  Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
        • *1. Actual range may vary depending on environment.
        • Specifications for R0809A01 Wireless Plug-and-Play Power Outlet with Consumption Monitoring and Power Outage Detection

          LoRaWAN
          Configuration Interface UART
          Uncategorized
          Frequency band AS923 or AU915 or KR920 or US915
          Power Adapter UK or US or AU
          Sensor Power consumption meter
          Waterproof IP30
          Class Class C/Class A
          Power type 110V/220V
          Battery Capacity NA
