Simplify Network Deployment with Power over Ethernet
IEEE 802.3af/at Protocol
4KV Surge protection
Gigabit Uplink Ports
SFP Uplink Ports
250m Extend Mode
Up to 400W Power Budget
With a range of PoE ports from 4, 8, 16 to maximum 24 and 2 SFP ports, Milesight PoE Switch Series provides flexible choices for various applications. It automatically recognizes the power receiving devices and offers power. Also, transmitting the data over one single Ethernet cable, it simplifies the network deployment in remote areas without power outlet.
Smart PoE Power Supply
Featuring multiple 10/100Mbps PoE ports which support IEEE 802.3af/at protocol and 2 uplink ports, the Milesight PoE Switch Series provides maximum power budget of 400W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.
With up to 14.8Gbps switching capacity, non-blocking design and full link-speed forwarding, Milesight PoE Switch Series is able to provide fluent transmission. At the same time, its reliability of data transmission is well guaranteed by the self-adaption ports which support both IEEE 802.3x Full Duplex Communication and Backpressure Half Duplex Communication.
Flexible Extend Mode
With the extend mode, the PoE Switch Series is able to offer more flexible choices for long range transmission, extending the distance up to 250m, which is greatly helpful to bring better user experience.
SFP Uplink Port
With SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring
Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
Reliable & Safe Performance
Abide by safety requirements of industrial standard, the Milesight PoE Switch Series is definitely reliable to bring safe perfor-mance. The exquisite metal housing, fanless design, low power consumption and continuous PoE power supply guarantee the efficient and stable running.
Easy to Use
The plug and play with no configuration makes the maintaining as easy as ABC. With the indicator lights of PWR and Link/Act, users can easily get the working status of the connected devices. All those will have no doubt to simply the use.
Specifications for PoE Switch

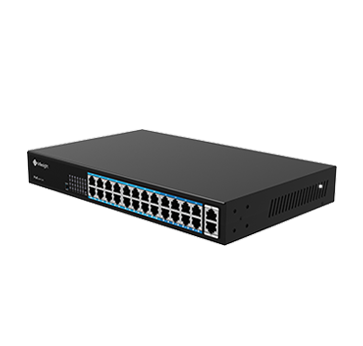

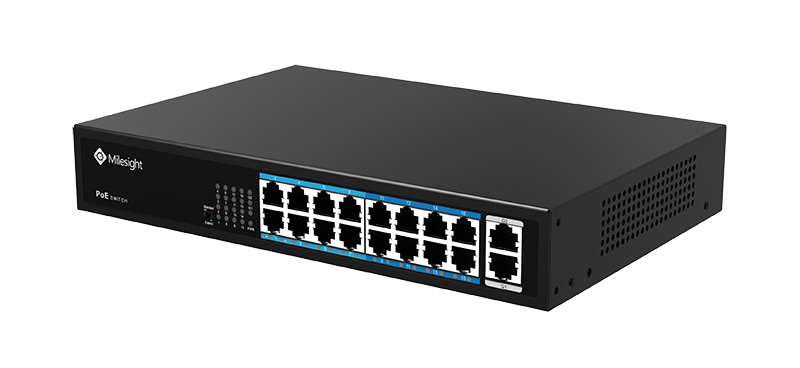

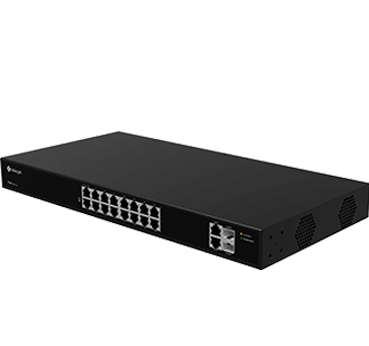

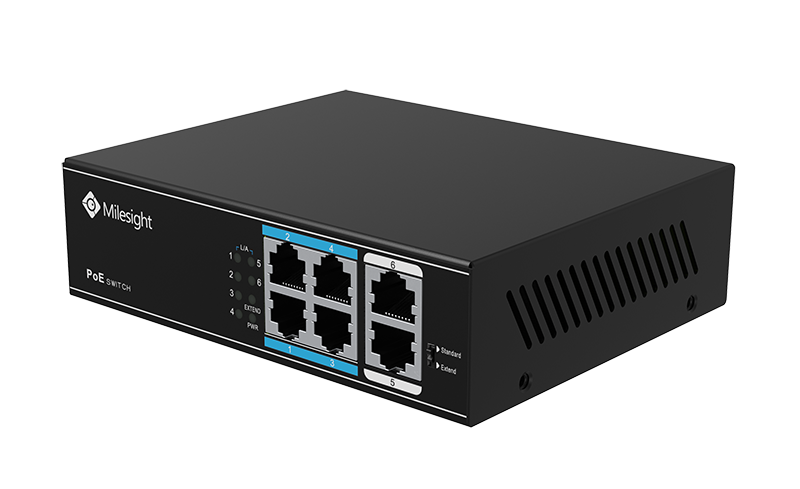

|Model||4 ports 10/100Mbps 60W 1.6Gbps or 8 ports 10/100Mbps 120W 2Gbps or 8 ports 10/100Mbps 120W 11.8Gbps or 16 ports 10/100Mbps 200W 14.8Gbps or 24 ports 10/100Mbps 400W 14.8Gbps or 16 ports 10/100Mbps 250W 14.8Gbps with 2 SFP port or 24 ports 10/100Mbps 250W 14.8Gbps with 2 SFP port|
