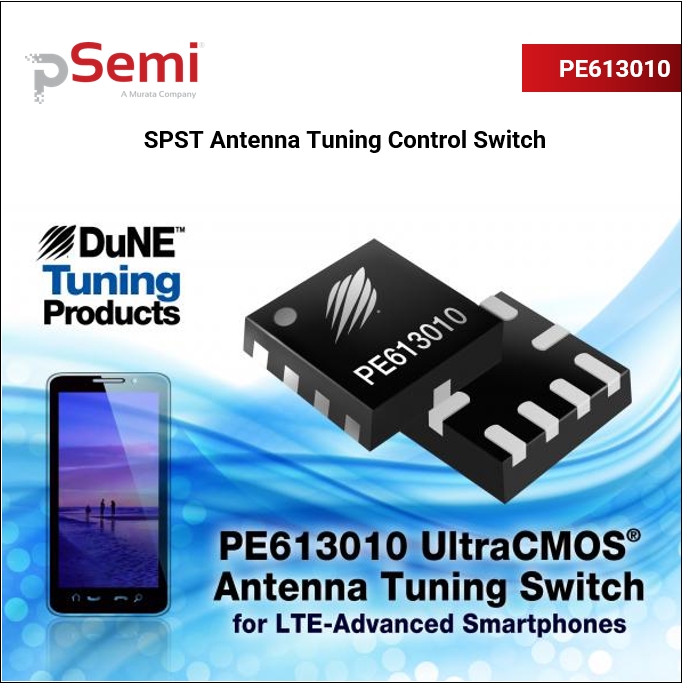

PE613010 SPST Antenna Tuning Control Switch

    SG$ 2.89 SG$ 2.89 2.89 SGD

    US$ 2.15

    This combination does not exist.

    Add to Cart

    SPST, Open Reflective, Tuning Switch


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

    The PE613010 is an SPST tuning control switch based on our patented UltraCMOS® technology. This highly versatile switch supports a wide variety of tuning circuit topologies with an emphasis on impedance matching and aperture tuning applications. PE613010 features low on-resistance and insertion loss from 100 to 3000 MHz. With two-pin low voltage CMOS control, all decoding and biasing are integrated on-chip, and no external bypassing or filtering components are required.

    Features

        Open reflective architecture
        Very low on-resistance of 1.2Ω
        Low insertion loss
        High power handling: 38 dBm (50Ω)
        Wide power supply range (2.3V to 4.8V)
        High ESD tolerance of 2 kV HBM on all pins
        Packaging: 10-lead 2 × 2 × 0.55 mm QFN
