PE45361 Power Limiter, 10 MHz–8 GHz

    SG$ 16.54 SG$ 16.54 16.54 SGD

    US$ 12.30

    This combination does not exist.

    Add to Cart

    6GHz, 100W Power Limiter


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

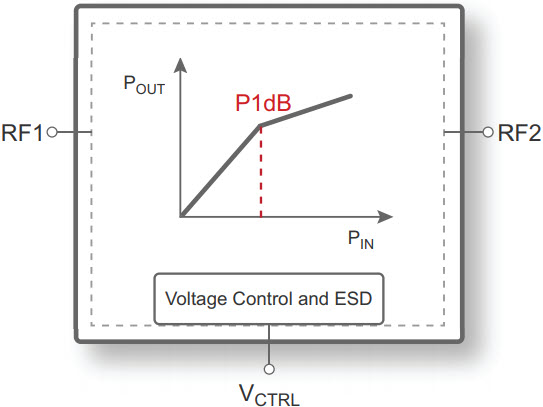

    The PE45361 is a HaRP™ technology-enhanced power limiter designed for use in high-performance power limiting applications in test and measurement (T&M) equipment and wireless-infrastructure transceivers and antennas. Unlike traditional PIN-diode solutions, the PE45361 achieves an adjustable input 1 dB compression point or limiting threshold via a low current control voltage (VCTRL), eliminating the need for external bias components, such as DC blocking capacitors, RF choke inductors and bias resistors

    Features

        Monolithic drop-in solution with no external bias components
        Adjustable low power limiting threshold from +7 dBm to +13 dBm
        High maximum power handling of 50 dBm, 100W
        Positive threshold control of +0V to +0.3V
        Fast response time of 0.6 ns
        Packaging: 12-lead 3 × 3 × 0.5 mm QFN
