PE4314 Digital Step Attenuator, optional ext. Vss

    SG$ 4.77 SG$ 4.77 4.7700000000000005 SGD

    US$ 3.55

    This combination does not exist.

    Add to Cart

    75Ω 6Bit 31.5dB 0.5dB Digital Step Attenuator, optional ext. Vss


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

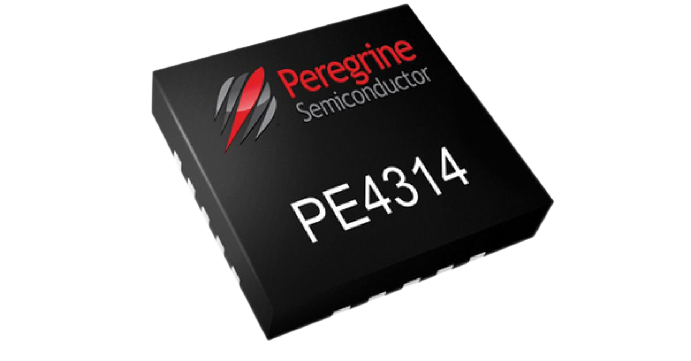

    The PE4314 is a 75Ω HaRP™ technology-enhanced, 6-bit RF digital step attenuator (DSA) that supports a frequency range from 1 MHz to 2.5 GHz. It features glitch-less attenuation state transitions and supports 1.8V control voltage and an extended operating temperature range up to +105°C, making this device ideal for multiple wired broadband applications.

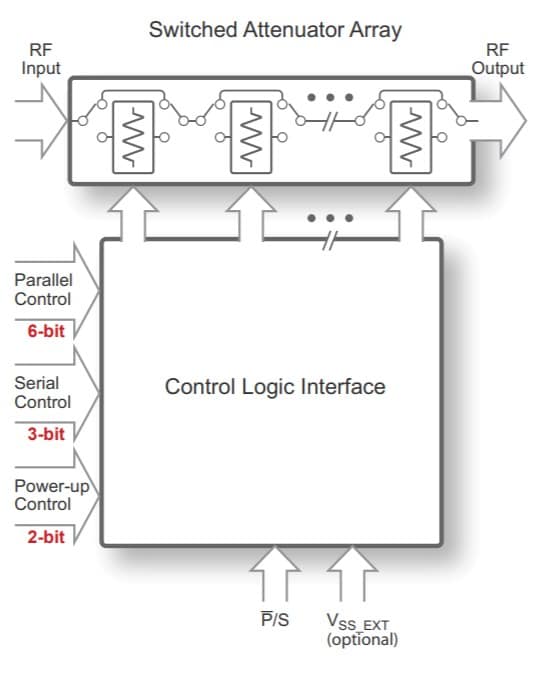

    The PE4314 is a pin-compatible upgraded version of the PE4304, PE4307, PE4308 and PE43404. An integrated digital control interface supports both serial and parallel programming of the attenuation, including the capability to program an initial attenuation state at power-up.

    The PE4314 covers a 31.5 dB attenuation range in a 0.5 dB step. It is capable of maintaining 0.5 dB monotonicity through 2.5 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports

    Features

        Attenuation step of 0.5 dB up to 31.5 dB
        Glitch-less attenuation state transitions
        Low distortion for CATV and multi-carrier applications
        Extended +105°C operating temperature
        Parallel and serial programming interfaces
        Packaging: 20-lead 4 × 4 × 0.85 mm QFN
