PE42641 Low Insertion loss SP4T RF Switch

    SG$ 2.51 SG$ 2.51 2.5100000000000002 SGD

    US$ 1.86

    This combination does not exist.

    Add to Cart

    SP4T, Low IL, Reflective, 50Ω RF Switch


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

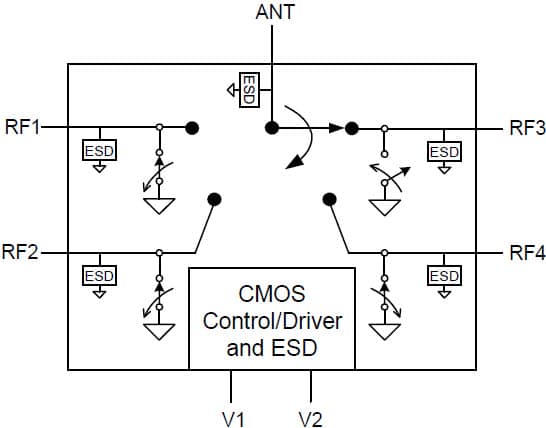

    The PE42641 is a HaRP™-enhanced SP4T RF switch developed on the UltraCMOS® process technology. This switch contains four identical WEDGE/CDMA compliant TX paths and can be used in various GSM and WCDMA mobile applications as well as other wireless applications up to 3000 MHz. It is also suitable for antenna band switching and switchable matching networks for cellular and non-cellular mobile applications. It integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no DC blocking capacitors. This RoHS-compliant part is available in a standard 3 × 3 × 0.75 mm QFN package..

    Features

        Symmetric, high-power SP4T: All ports WEDGE/CDMA-compliant
        Very low insertion loss: 0.45 dB @ 1000 MHz, 0.6 dB @ 2000 MHz
        HaRP™-enhanced technology for unparalleled linearity
        Very high isolation: 35 dB @ 900 MHz, 29 dB @ 1900 MHz
        Exceptionally high ESD tolerance
        Integrated decoder for 2-pin control
        Low 4.5 ohm series ON resistance
        No blocking capacitors required
        Packaging: 16-lead 3 × 3 × 0.75 mm QFN
