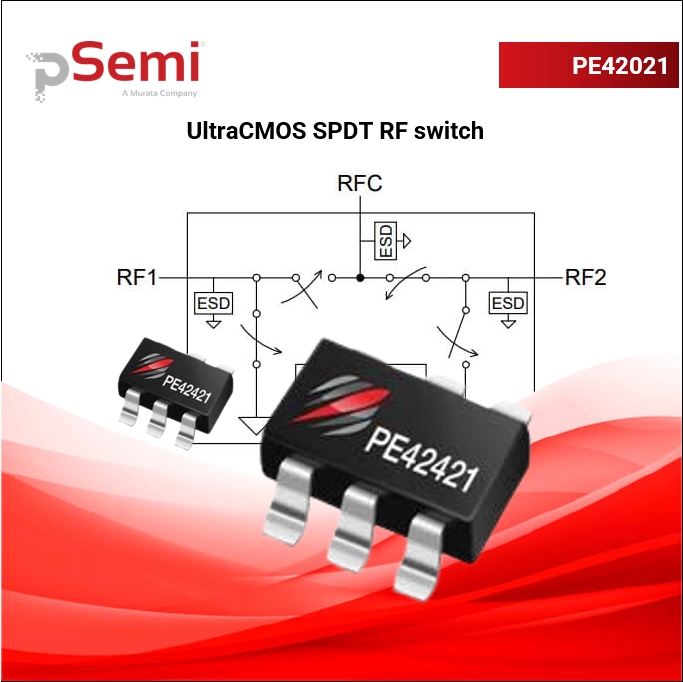

PE42421 Reflective SPDT RF switch

    SG$ 0.87 SG$ 0.87 0.87 SGD

    US$ 0.65

    This combination does not exist.

    Add to Cart

    SPDT, Low IL, Reflective, 50Ω RF Switch


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

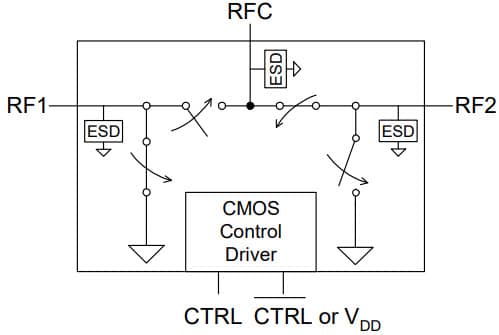

    The PE42421 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply, a typical input 1 dB compression point of +33.5 dBm can be achieved.

    Features

        Single-pin or complementary CMOS logic control inputs
        Low insertion loss: 0.35 dB at 1000 MHz, 0.5 dB at 2000 MHz
        Isolation of 30 dB at 1000 MHz, 20 dB at 2000 MHz
        Typical input 1 dB compression point of +33.5 dBm
        1.8V minimum power supply voltage
        SC-70 package
