PE29100 High-speed FET Driver

    SG$ 5.19 SG$ 5.19 5.19 SGD

    US$ 3.86

    This combination does not exist.

    Add to Cart

    High-speed FET Driver, 33 MHz


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    pSemi

    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.


    FIND OUT MORE

    Overview

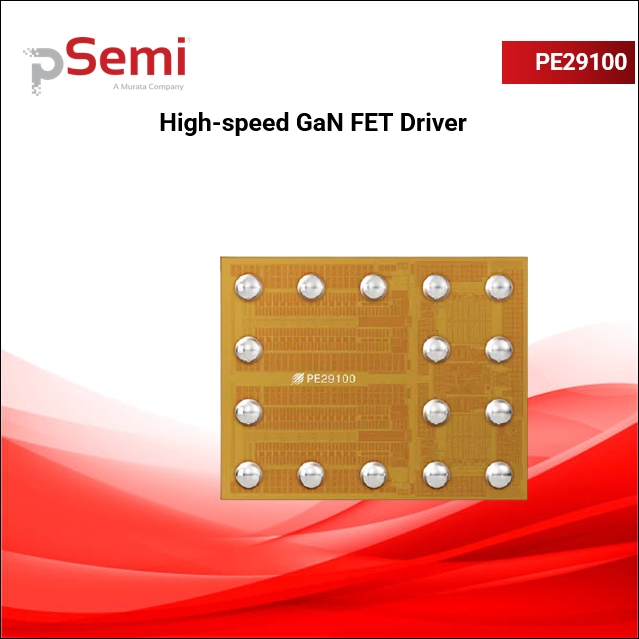

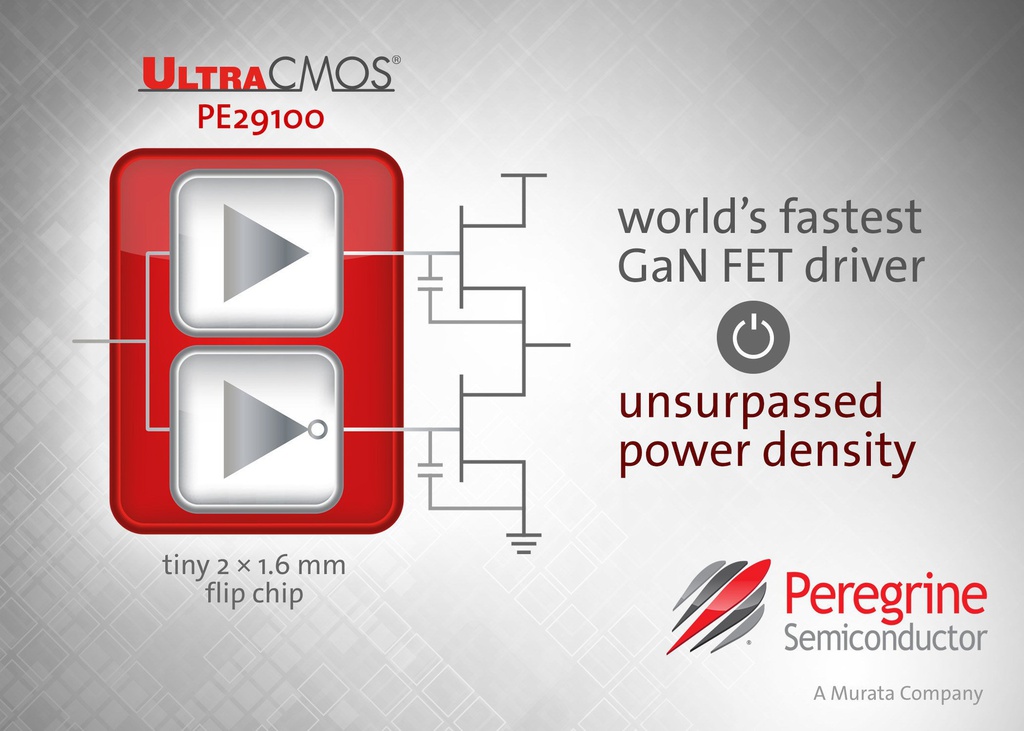

    The PE29100 integrated high-speed driver is designed to control the gates of external power devices, such as enhancement-mode gallium nitride (eGaN®) FETs. The outputs of the PE29100 are capable of providing switching transition speeds in the sub-nanosecond range for hard switching applications up to 33 MHz. High switching speeds result in smaller peripheral components and enable new applications like the Rezence A4WP wireless power transfer. The PE29100 is available in a flip-chip package.

    Features

        High- and low-side FET drivers
        Dead-time control
        Fast propagation delay, 8 ns
        Tri-state enable mode
        Sub-nanosecond rise and fall time
        2A/4A peak source, sink current
