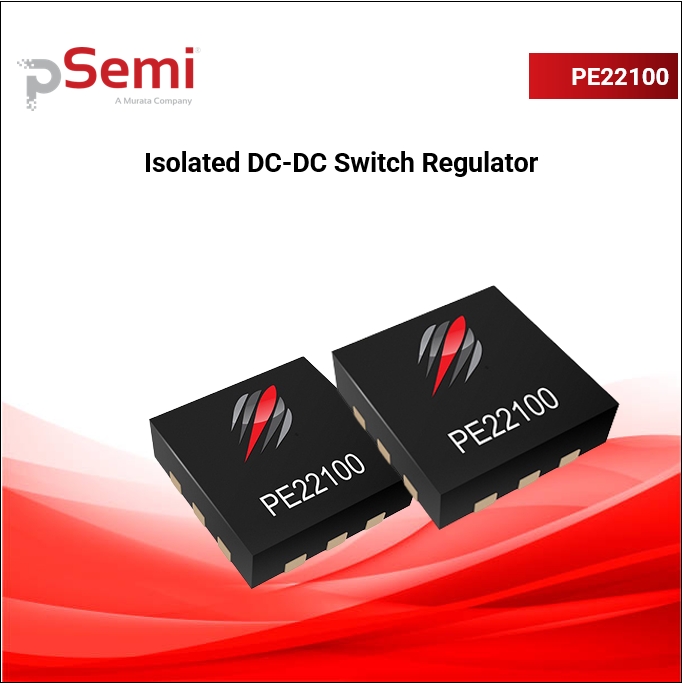

PE22100 Transformer Driver

    SG$ 4.30 SG$ 4.30 4.3 SGD

    US$ 3.20

    This combination does not exist.

    Add to Cart

    Transformer Driver for Isolated Power Supplies, 2 MHz


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    pSemi

    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.


    FIND OUT MORE

    Overview

    The PE22100 is a push-pull driver for driving small transformers for isolated power supply applications. The PE22100 drives the primary of a center-tapped transformer such as the 782100 family from Murata from a 3V or a 5V supply to deliver an isolated power supply. The device consists of an on-chip oscillator whose frequency is set by an external capacitor. The oscillator output is divided by two in frequency to create anti-phase clock signals that drive two power switches. The device also contains an internal current limit and thermal cutout. The PE22100 is available in a 2 × 2 × 0.5 mm QFN package and is specified for operation from –40°C to +125°C.

    Features

        Push-pull driver for small transformers
        Operates off a 3.0V or 5V supply
        Adjustable switching frequency up to 2 MHz
        Current limit protection
        Over-temperature protection
        Packaging: 2 × 2 × 0.5 mm QFN
