MG100 Micro Gateway, NB-IoT, BLE

  • Variant

SG$ 194.97 SG$ 194.97 194.97 SGD

US$ 145.00

This combination does not exist.

Add to Cart

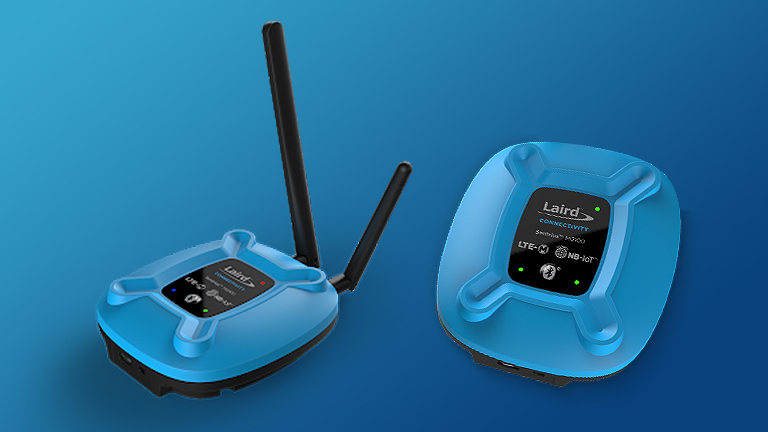

Sentrius™ MG100 Micro Gateway, LTE-M & NB1 Modem, BLE, External Antenna, Battery Backup, MVNO SIM


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird


We simplify the rapid integration of wireless connectivity with innovative solutions, world-class manufacturing and unparalleled customer support. Our culture creates a fast moving, flexible work environment attracting employees who focus on providing accelerated profitable growth. Our vision is to be the technology behind every innovative and reliable wireless solution by 2025.


FIND OUT MORE

Overview

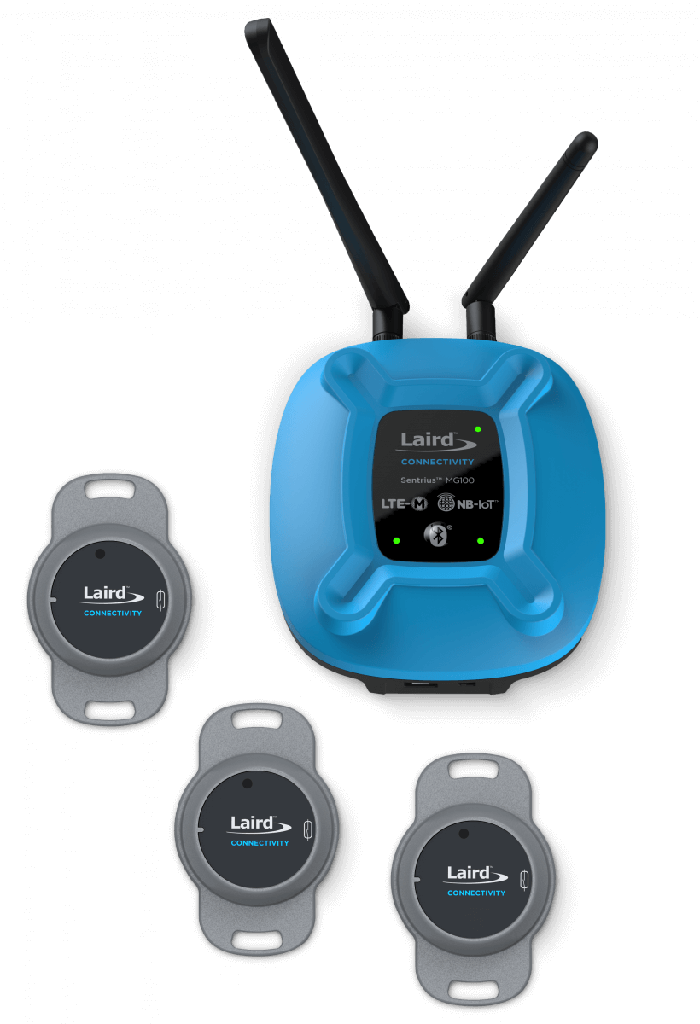

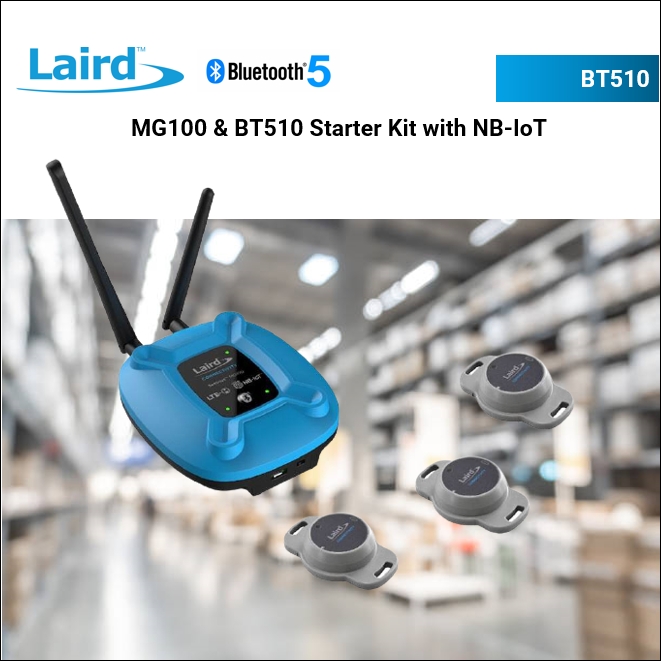

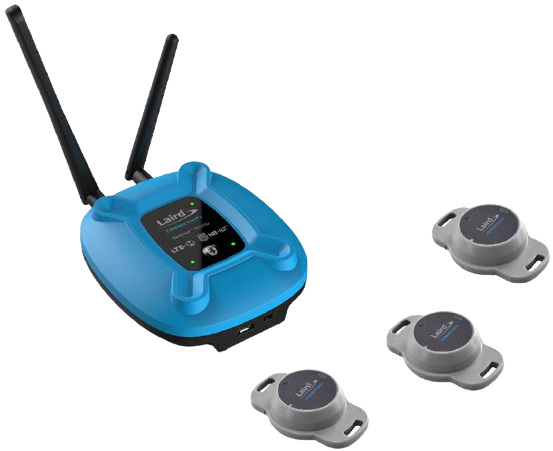

Laird Connectivity's Sentrius™ MG100 + BT510 IoT Starter Kit contains everything you need to start sending Bluetooth 5 Sensor data over LTE to the cloud!

Features

  • LTE-M / NB-IoT radio via Sierra Wireless HL7800 module (Chipset: Altair ALT1250)

  • LTE bands 1, 2, 3, 4, 5, 8, 12, 13, 20, 28

  • Nordic nRF52840 – BT v5, Coded PHY (Long range), 1MPHY & 2MPHY support

  • Onboard Cortex-M4F Microcontroller – 32-bit @ 64 MHz, 256 KB of RAM, 1 MB internal flash, 8 MB QSPI

  • NFC Support and integrated antenna

  • Certifications – FCC, IC, CE, BT SIG plus PTCRB, GCF and End Product certified – AT&T

  • Verizon & Vodafone( pending)

  • Flexible Programming via Zephyr RTOS

  • Antenna Options – Unique integrated antenna

  • variant plus external variant with SMA connectors

  • Battery backup options for mains power outage needs

  • Multi-purpose Button and 3 configurable LEDs

  • Compact Form Factor: 110.28mm x 99.16mm x 35.32mm

  • Customization – Custom branding, packaging, application development all available

Applications

Specifications for MG100 Micro Gateway, NB-IoT, BLE

Variant Build in Antenna or Build in Antenna with Battery or Ext Antenna or Ext Antenna with Battery
