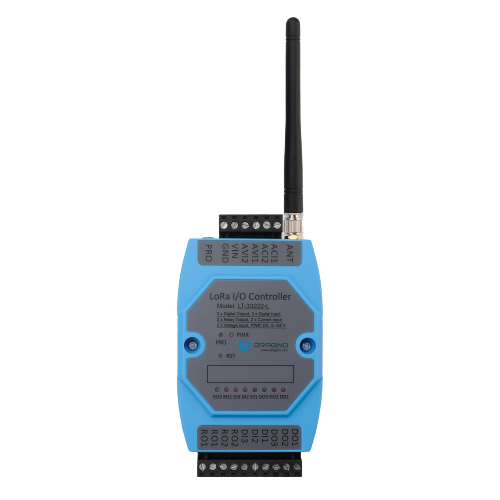

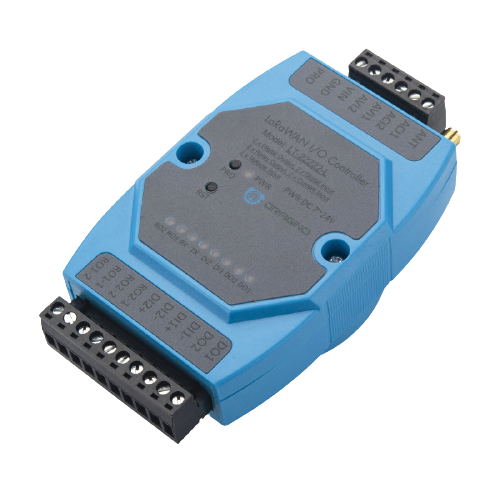

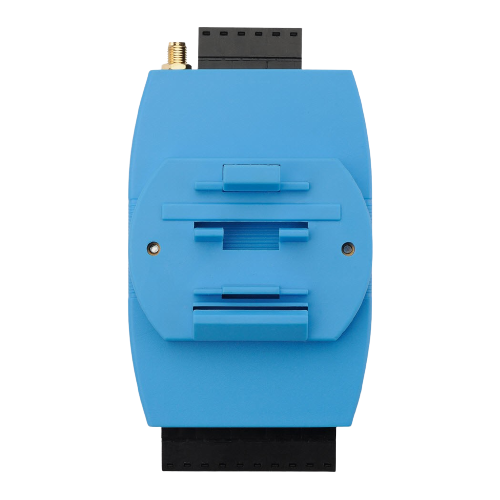

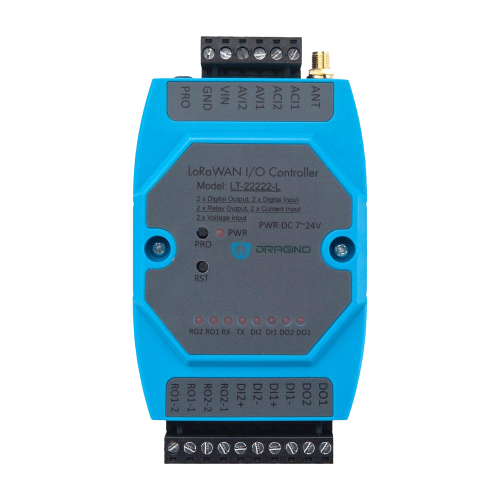

LT-22222-L LoRa I/O Controller

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version

SG$ 60.51 SG$ 60.51 60.51 SGD

US$ 45.00

This combination does not exist.

Add to Cart

The Dragino LT series I/O Modules are Long Range LoRa I/O Controller. It contains different I/O Interfaces such as: analog current Input, analog voltage input, relay output, digital input and digital output etc. The LT I/O Modules are designed to simplify the installation of I/O monitoring.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino LT series I/O Modules are Long Range LoRa I/O Controller. It contains different I/O Interfaces such as: analog current Input, analog voltage input, relay output, digital input and digital output etc. The LT I/O Modules are designed to simplify the installation of I/O monitoring.

The LT I/O Controllers allows user to send data and reach extremely long ranges.It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.

The LT I/O Controllers is aiming to provide an easy and low cost installation by using LoRa wireless technology.

The use environment includes:

1) If user’s area has LoRaWAN service coverage, they can just install the I/O controller and configure it connect the LoRaWAN provider via wireless.

2) User can set up a LoRaWAN gateway locally and configure the controller to connect to the gateway via wireless..

Features

  • STM32L072CZT6 MCU

  • SX1276/78 LoRa Wireless Chip

  • LoRaWAN Class A & Class C protocol

  • Optional Customized LoRa Protocol

  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915

  • AT Commands to change parameters

Applications

Specifications for LT-22222-L LoRa I/O Controller

LoRaWAN
LoRa transceiver SX1276
Uncategorized
Cable length None
Frequency band AS923
OpenCPU No
Sensor IO
Waterproof IP30
Class Class C/Class A
Power type DC power
LoRaWAN version 1.0.3
